Search › Model › EL31

EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories

4,179 items

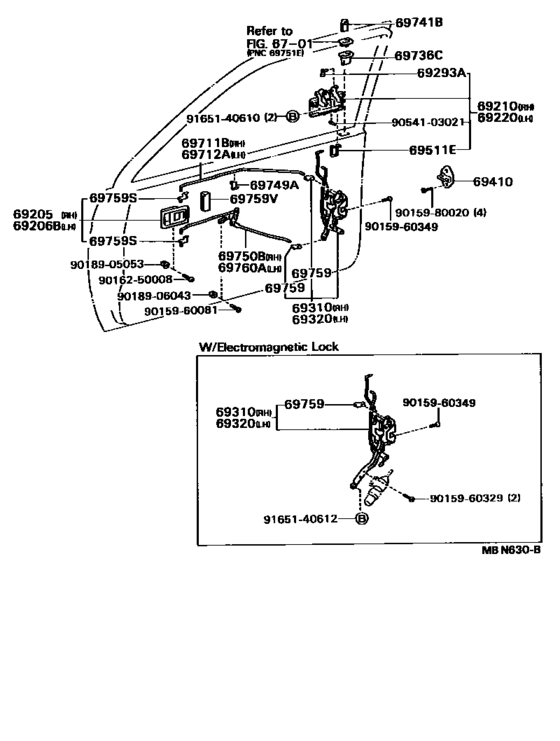

Front Door Lock & Handle ([05.1988 - ] (8805- )) 42

#	OEM	Part name
69205	69205-10040-01	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-10040-24	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-10050-01	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-10050-14	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-10040-01	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-10040-24	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-10050-01	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-10050-14	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-16060	Handle Assy, Front Door, Outside Rh
69220	69220-16060	Handle Assy, Front Door Outside, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69310	69310-16150	Lock Assy, Front Door, Rh
69310	69310-16160	Lock Assy, Front Door, Rh
69320	69320-16150	Lock Assy, Front Door, Lh
69320	69320-16160	Lock Assy, Front Door, Lh
69410	69410-87001	Plate Assy, Front Door Lock Striker
69410	69410-AA020	Plate Assy, Front Door Lock Striker
69511	69511-20010	Retainer, Front Door Lock Cylinder
69711	69711-16060	Link Assy, Front Door Open Control, Rh
69712	69712-16060	Link, Front Door Lock Remote Control, Lh
69736	69736-12030	Guide, Front Door Lock Link
69736	69736-20090	Guide, Front Door Locking Link
69741	69741-90K00-01	Knob, Front Door Lock Control
69741	69741-90K00-C0	Knob, Front Door Lock Control
69749	69749-20010	Clamp, Front Door Lock Link
69759	69759-20040	Snap, Auxiliary Catch Release Lever Control Link
69759	69759-20050	Snap(For Rear Door Lock)
69759	69759-20060	Snap(For Rear Door Inside Handle)
69759	69759-20070	Snap(For Rear Door Inside Handle)
9015960081	90159-60081	SCREW
9015960329	90159-60329	New Genuine Part
9015960349	90159-60349	SCREW WWASHER
9015980020	90159-80020	SCREW
9015980020	90151-80016	SCREW CROSSRECESS
9016250008	90162-50008	SCREW
9018905053	90189-05053	New Genuine Part
9018906043	90189-06043	CLIP
9054103021	90541-03021	Cushion(For Front Door Outside Handle)
9165140610	91651-40610	RIVET
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part

OEM	Part name	Category
69205-10040-01	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69205-10040-24	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69205-10050-01	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69205-10050-14	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69206-10040-01	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69206-10040-24	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69206-10050-01	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69206-10050-14	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69210-16060	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69220-16060	Handle Assy, Front Door Outside, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69310-16150	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69310-16160	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69320-16150	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69320-16160	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69410-87001	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69410-AA020	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69511-20010	Retainer, Front Door Lock Cylinder	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69711-16060	Link Assy, Front Door Open Control, Rh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69712-16060	Link, Front Door Lock Remote Control, Lh	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69736-12030	Guide, Front Door Lock Link	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69736-20090	Guide, Front Door Locking Link	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69741-90K00-01	Knob, Front Door Lock Control	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69741-90K00-C0	Knob, Front Door Lock Control	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69749-20010	Clamp, Front Door Lock Link	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69759-20040	Snap, Auxiliary Catch Release Lever Control Link	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69759-20050	Snap(For Rear Door Lock)	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69759-20060	Snap(For Rear Door Inside Handle)	Front Door Lock & Handle ([05.1988 - ] (8805- ))
69759-20070	Snap(For Rear Door Inside Handle)	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90080-11225	New Genuine Part	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90151-80016	SCREW CROSSRECESS	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90159-60081	SCREW	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90159-60329	New Genuine Part	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90159-60349	SCREW WWASHER	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90159-80020	SCREW	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90162-50008	SCREW	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90189-05053	New Genuine Part	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90189-06043	CLIP	Front Door Lock & Handle ([05.1988 - ] (8805- ))
90541-03021	Cushion(For Front Door Outside Handle)	Front Door Lock & Handle ([05.1988 - ] (8805- ))
91651-40610	RIVET	Front Door Lock & Handle ([05.1988 - ] (8805- ))
91651-40612	BOLT	Front Door Lock & Handle ([05.1988 - ] (8805- ))
