EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories
EL31 ×

← Back to categories

4,179 items

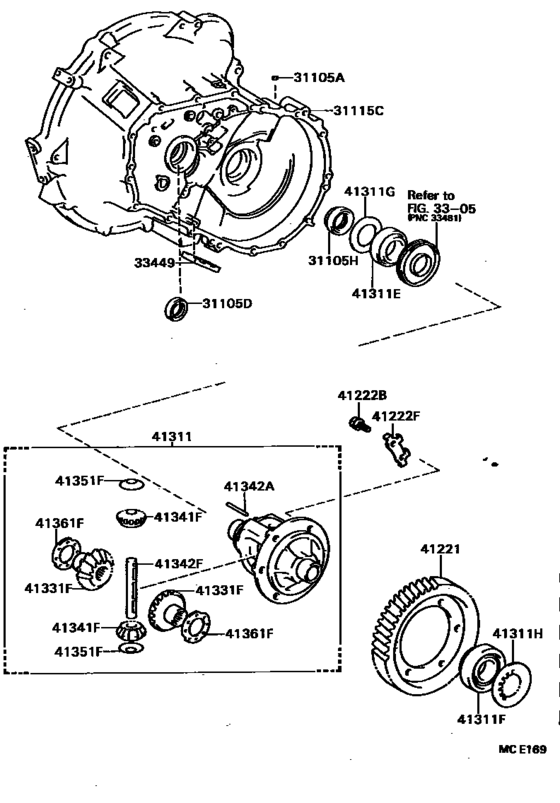

Front Axle Housing & Differential ([05.1988 - ] (8805- )EL3#..MTM) 68
#OEMPart name
31105 90331-08002 Plug, Tight(For Front Transaxle Case)
31105 90311-25016 Seal, Oil, No.1(For Front Transaxle Case)
31105 90311-34007 Seal, Oil, No.2(For Transaxle Case)
31105 90311-34016 Seal, Oil, No.2(For Transaxle Case)
31115 31115-12060 Case Sub-Assy, Transaxle(Mtm)
31115 31115-16051 Case, Front Transaxle(Mtm)
31115 33125-12011 Receiver, Manual Transaxle Case
33449 33449-12010 Magnet, Transmission
33449 33449-12020 Magnet, Transmission
41221 41221-10201 Gear, Front Differential Ring
41221 41221-52300 Gear, Front Differential Ring
41222 90105-12100 Bolt (For Front Differential Ring Gear Set)
41311 41301-10060 Case, Front Differential
41311 41301-10061 Case, Front Differential
41311 90366-38004 Bearing(For Counter Driven Gear)
41311 90368-38010 Bearing(For Rear Differential Case)
41311 90201-41045 Washer, Plate (For Front Differential Case Front)
41311 90201-41012 Washer, Plate (For Front Differential Case Front)
41311 90201-41046 Washer, Plate (For Front Differential Case Rear)
41311 90564-41014 Washer, Plate (For Front Differential Case Rear)
41311 90201-41047 Washer, Plate (For Front Differential Case Rear)
41311 90564-41015 Washer, Plate (For Front Differential Case Rear)
41311 90201-41048 Washer, Plate (For Front Differential Case Rear)
41311 90564-41016 Washer, Plate (For Front Differential Case Rear)
41311 90201-41049 Washer, Plate (For Front Differential Case Rear)
41311 90564-41017 Washer, Plate (For Front Differential Case Rear)
41311 90201-41050 Washer, Plate (For Front Differential Case Rear)
41311 90564-41018 Washer, Plate (For Front Differential Case Rear)
41311 90201-41051 Washer, Plate (For Front Differential Case Rear)
41311 90564-41019 Washer, Plate (For Front Differential Case Rear)
41311 90201-41052 Washer, Plate (For Front Differential Case Rear)
41311 90564-41020 Washer, Plate (For Front Differential Case Rear)
41311 90201-41053 Washer, Plate (For Front Differential Case Rear)
41311 90564-41021 Washer, Plate (For Front Differential Case Rear)
41311 90201-41054 Washer, Plate (For Front Differential Case Rear)
41311 90564-41022 Washer, Plate (For Front Differential Case Rear)
41311 90201-41055 Washer, Plate (For Front Differential Case Rear)
41311 90564-41023 Washer, Plate (For Front Differential Case Rear)
41311 90201-41056 Washer, Plate (For Front Differential Case Rear)
41311 90564-41024 Washer, Plate (For Front Differential Case Rear)
41311 90201-41057 Washer, Plate (For Front Differential Case Rear)
41311 90564-41025 Washer, Plate (For Front Differential Case Rear)
41311 90201-41058 Washer, Plate (For Front Differential Case Rear)
41311 90564-41026 Washer, Plate (For Front Differential Case Rear)
41311 90201-41059 Washer, Plate (For Front Differential Case Rear)
41311 90564-41027 Washer, Plate (For Front Differential Case Rear)
41311 90201-41060 Washer, Plate (For Front Differential Case Rear)
41311 90564-41028 Washer, Plate (For Front Differential Case Rear)
41311 90201-41061 Washer, Plate (For Front Differential Case Rear)
41311 90564-41029 Washer, Plate (For Front Differential Case Rear)
41311 90201-41062 Washer, Plate (For Front Differential Case Rear)
41311 90564-41030 Washer, Plate (For Front Differential Case Rear)
41311 90201-41063 Washer, Plate (For Front Differential Case Rear)
41311 90564-41031 Washer, Plate (For Front Differential Case Rear)
41311 90201-41064 Washer, Plate (For Front Differential Case Rear)
41311 90564-41032 Washer, Plate (For Front Differential Case Rear)
41331 41331-10042 Gear, Rear Differential Side
41341 41341-10030 Pinion, Rear Differential
41342 90250-04053 Pin, Straight (For Front Differential Pinion Shaft)
41342 41342-10040 Shaft, Front Differential Pinion, No.1
41342 41342-10041 Shaft, Front Differential Pinion, No.1
41351 41351-10030 Washer, Rear Differential Pinion Thrust
41361 41361-10070 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10080 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10090 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10100 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10110 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10120 Washer, Rear Differential Side Gear Thrust, No.1
