Search › Model › EL31

EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories

4,179 items

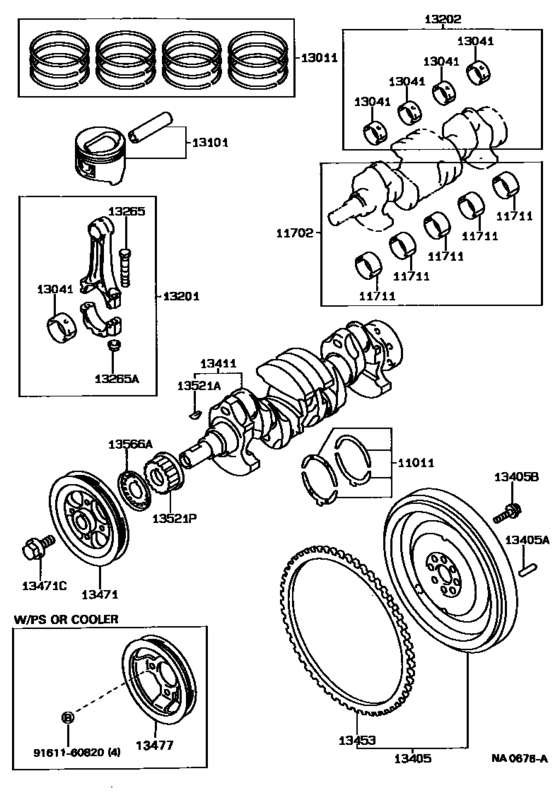

Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#) 63

#	OEM	Part name
11011	11011-11010	Washer Set, Crankshaft Thrust
11011	11011-11020	Washer Set, Crankshaft Thrust
11011	11012-11010	Washer Set, Crankshaft Thrust
11011	11012-11020	Washer Set, Crankshaft Thrust
11702	11704-11010	Bearing Set, Crankshaft
11702	11704-11012	Bearing Set, Crankshaft
11702	11704-11011	Bearing Set, Crankshaft
11711	11701-11010-01	Bearing, Crankshaft
11711	11701-11012-01	Bearing, Crankshaft
11711	11701-11010-02	Bearing, Crankshaft
11711	11701-11012-02	Bearing, Crankshaft
11711	11701-11010-03	Bearing, Crankshaft
11711	11701-11012-03	Bearing, Crankshaft
11711	11701-11010-04	Bearing, Crankshaft
11711	11701-11012-04	Bearing, Crankshaft
11711	11701-11010-05	Bearing, Crankshaft
11711	11701-11012-05	Bearing, Crankshaft
11711	11701-11011-01	Bearing, Crankshaft
11711	11701-11011-02	Bearing, Crankshaft
11711	11701-11011-03	Bearing, Crankshaft
11711	11701-11011-04	Bearing, Crankshaft
11711	11701-11011-05	Bearing, Crankshaft
13011	13011-11090	Ring Set, Piston
13011	13013-11090	Ring Set, Piston
13041	13041-11010-01	Bearing, Connecting Rod
13041	13041-11010-02	Bearing, Connecting Rod
13041	13041-11010-03	Bearing, Connecting Rod
13041	13041-11020-01	Bearing, Connecting Rod
13041	13041-11020-02	Bearing, Connecting Rod
13041	13041-11020-03	Bearing, Connecting Rod
13101	13101-11080-01	Piston Sub-Assy, W/pin
13101	13101-11081-01	Piston Sub-Assy, W/pin
13101	13101-11080-02	Piston Sub-Assy, W/pin
13101	13101-11081-02	Piston Sub-Assy, W/pin
13101	13101-11080-03	Piston Sub-Assy, W/pin
13101	13101-11081-03	Piston Sub-Assy, W/pin
13101	13103-11080	Piston Sub-Assy, W/pin
13101	13103-11081	Piston Sub-Assy, W/pin
13201	13201-19085	Rod Sub-Assy, Connecting
13201	13201-19088	Rod Sub-Assy, Connecting
13201	13201-19087	Rod Sub-Assy, Connecting
13202	13204-11010	Bearing Set, Connecting Rod
13202	13204-11020	Bearing Set, Connecting Rod
13265	13265-10020	Bolt, Connecting Rod
13265	13265-10022	Bolt, Connecting Rod
13265	13265-10021	Bolt, Connecting Rod
13265	90179-08014	Nut, Hexagon(For Connecting Rod Bolt)
13405	90105-10138	Bolt, Flywheel Setting
13405	13405-11040	Flywheel Sub-Assy
13405	13405-11041	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13411	13401-11040	Crankshaft
13453	13453-10030	Gear, Flywheel Ring
13471	13408-11012	Pulley, Crankshaft
13471	13470-11030	Pulley, Crankshaft
13471	90105-12051	Bolt(For Crankshaft Pulley Set)
13477	44319-16020	Pulley, Crankshaft, No.2
13521	90280-05010	Key(For Oil Pump Drive Spline)
13521	95161-20519	Key, Crankshaft(For Crankshaft Pulley Set)
13521	13521-11010	Pulley, Crankshaft Timing
13566	13566-10011	Guide, Timing Belt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt

OEM	Part name	Category
11011-11010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11011-11020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11012-11010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11012-11020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11010-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11010-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11010-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11010-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11010-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11011-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11011-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11011-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11011-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11011-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11012-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11012-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11012-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11012-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11701-11012-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11704-11010	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11704-11011	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
11704-11012	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13011-11090	Ring Set, Piston	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13013-11090	Ring Set, Piston	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13041-11010-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13041-11010-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13041-11010-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13041-11020-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13041-11020-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13041-11020-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13101-11080-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13101-11080-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13101-11080-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13101-11081-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13101-11081-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13101-11081-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13103-11080	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13103-11081	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13201-19085	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13201-19087	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13201-19088	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13204-11010	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13204-11020	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13265-10020	Bolt, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13265-10021	Bolt, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13265-10022	Bolt, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13401-11040	Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13405-11040	Flywheel Sub-Assy	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13405-11041	Flywheel Sub-Assy	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13408-11012	Pulley, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13453-10030	Gear, Flywheel Ring	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13470-11030	Pulley, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13521-11010	Pulley, Crankshaft Timing	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
13566-10011	Guide, Timing Belt	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
44319-16020	Pulley, Crankshaft, No.2	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
90105-10138	Bolt, Flywheel Setting	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
90105-12051	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
90179-08014	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
91611-60820	Bolt(For Transaxle & Engine Setting)	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
91611-G0820	Bolt	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
95161-20519	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.1988 - ] (8805- )2E,3E#)
