EL31

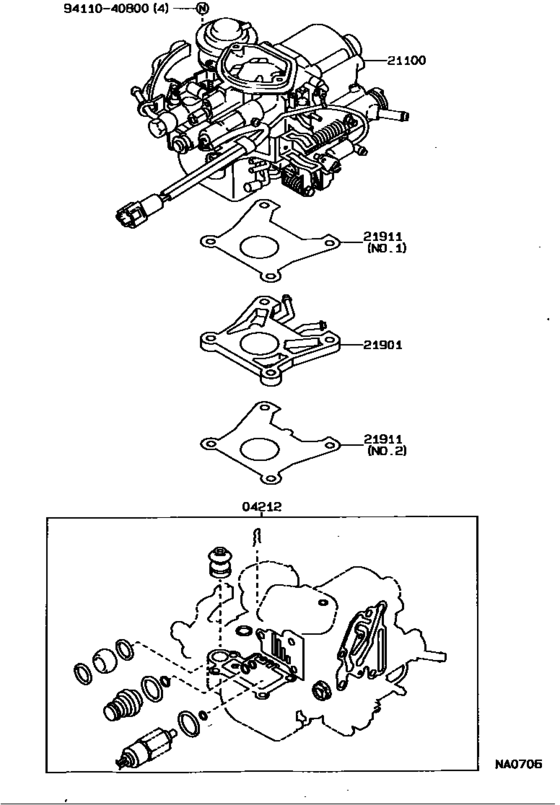

Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) 10
| # | OEM | Part name |
|---|---|---|
| 4212 | 04212-11040 | Gasket Kit, Carburetor |
| 21100 | 21100-11364 | Carburetor Assy |
| 21100 | 21100-11344 | Carburetor Assy |
| 21901 | 21901-11030 | Insulator Sub-Assy, Carburetor Heat, No.1 |
| 21911 | 21911-11020 | Gasket, Carburetor |
| 21911 | 21911-11021 | Gasket, Carburetor |
| 21911 | 21911-11030 | Gasket, Carburetor |
| 21911 | 21911-11031 | Gasket, Carburetor |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04212-11040 | Gasket Kit, Carburetor | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 21100-11344 | Carburetor Assy | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 21100-11364 | Carburetor Assy | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 21901-11030 | Insulator Sub-Assy, Carburetor Heat, No.1 | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 21911-11020 | Gasket, Carburetor | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 21911-11021 | Gasket, Carburetor | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 21911-11030 | Gasket, Carburetor | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 21911-11031 | Gasket, Carburetor | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([05.1988 - ] (8805- )2E,3E) |
