Search › Model › EL31
EL31

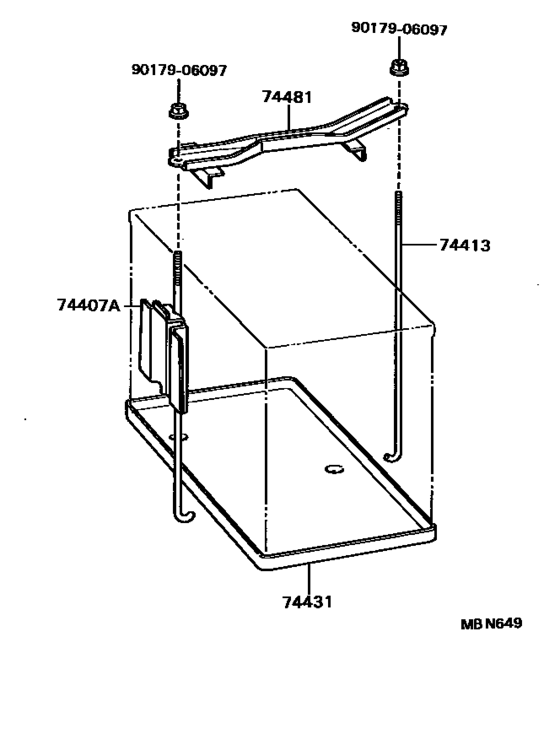

Battery Carrier ([05.1988 - ] (8805- )) 8
| # | OEM | Part name |
|---|---|---|
| 74407 | 74407-16020 | Bolt Sub-Assy, Battery Clamp |
| 74413 | 74451-16010 | Bolt, Battery Clamp |
| 74431 | 74431-14010 | Carrier, Battery |
| 74431 | 74431-14050 | Carrier, Battery |
| 74431 | 74431-14020 | Carrier, Battery |
| 74481 | 74404-16060 | Clamp, Battery Hold Down |
| 9017906097 | 90179-06097 | Clip(For Front Bumper), No.1 |
| 9017906097 | 90179-06206 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-16060 | Clamp, Battery Hold Down | Battery Carrier ([05.1988 - ] (8805- )) |
| 74407-16020 | Bolt Sub-Assy, Battery Clamp | Battery Carrier ([05.1988 - ] (8805- )) |
| 74431-14010 | Carrier, Battery | Battery Carrier ([05.1988 - ] (8805- )) |
| 74431-14020 | Carrier, Battery | Battery Carrier ([05.1988 - ] (8805- )) |
| 74431-14050 | Carrier, Battery | Battery Carrier ([05.1988 - ] (8805- )) |
| 74451-16010 | Bolt, Battery Clamp | Battery Carrier ([05.1988 - ] (8805- )) |
| 90179-06097 | Clip(For Front Bumper), No.1 | Battery Carrier ([05.1988 - ] (8805- )) |
| 90179-06206 | Nut | Battery Carrier ([05.1988 - ] (8805- )) |
