Search › Model › EL30

EL30

Toyota COROLLA · 1986 · 3,638 parts · 167 categories

3,638 items

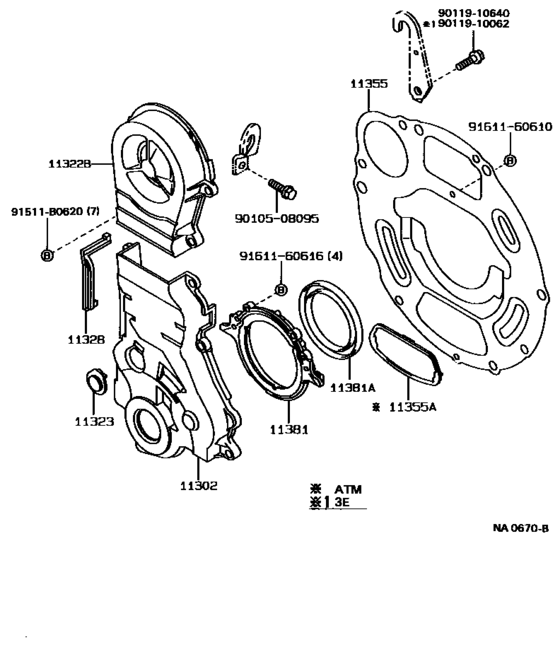

Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#) 20

#	OEM	Part name
11302	11302-11042	Cover Sub-Assy, Timing Chain Or Belt
11302	11302-11043	Cover Sub-assy, Timing Chain Or Belt
11302	90387-06015	New Genuine Part
11322	11303-10022	Cover, Timing Belt, No.2
11322	11303-10023	Cover, Timing Belt, No.2
11323	11323-10011	Cover, Timing Belt, No.3
11328	11328-11031	Gasket, Timing Belt Cover, No.1
11355	11355-10011	Plate, Rear End
11355	11355-10012	Plate, Rear End
11381	11381-10020	Retainer, Engine Rear Oil Seal
11381	90311-75004	Seal, Engine Rear Oil
11381	90311-75009	Seal, Engine Rear Oil
91511	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9010508095	90105-08095	BOLT
9011910062	90119-10062	New Genuine Part
9011910062	90119-10640	New Genuine Part
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)

OEM	Part name	Category
11302-11042	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11302-11043	Cover Sub-assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11303-10022	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11303-10023	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11323-10011	Cover, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11328-11031	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11355-10011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11355-10012	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
11381-10020	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
90105-08095	BOLT	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
90119-10062	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
90119-10640	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
90311-75004	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
90311-75009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
90387-06015	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
91611-60616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
91611-B0616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )2E,3E#)
