EL30

Toyota COROLLA · 1986 · 3,638 parts · 167 categories

← Back to categories

3,638 items

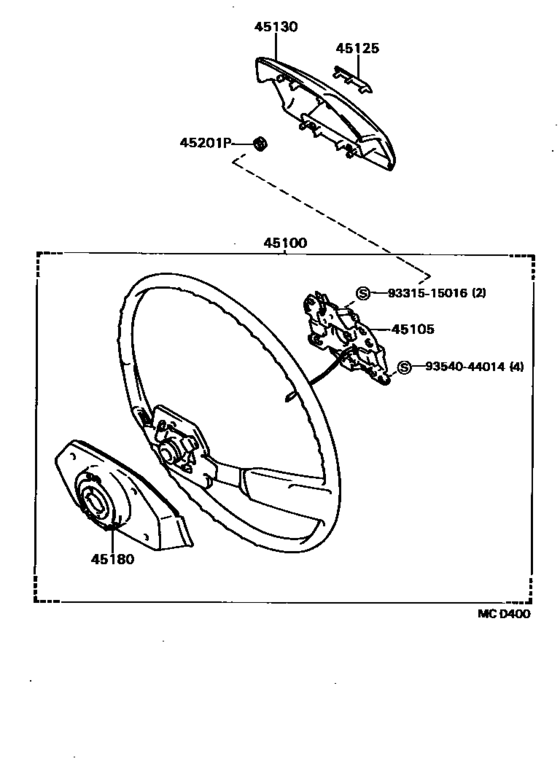

Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX) 12

#	OEM	Part name
45100	45100-16171-01	Wheel Assy, Steering
45100	45100-16171-04	Wheel Assy, Steering
45105	45105-16051	Plate Sub-Assy, Horn Button Contact, No.1
45125	45125-16321	Mark, Steering Wheel Pad
45125	45125-16331	Mark, Steering Wheel Pad
45130	45130-16181-01	Button Assy, Horn
45130	45130-16181-04	Button Assy, Horn
45180	45180-16020-01	Cover Sub-Assy, Steering Wheel
45180	45180-16020-04	Cover Sub-Assy, Steering Wheel
45201	90179-12086	Nut, Steering Wheel Set
9331515016	93315-15016	SCREW WWASHER
9354044014	93540-44014	New Genuine Part

OEM	Part name	Category
45100-16171-01	Wheel Assy, Steering	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45100-16171-04	Wheel Assy, Steering	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45105-16051	Plate Sub-Assy, Horn Button Contact, No.1	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45125-16321	Mark, Steering Wheel Pad	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45125-16331	Mark, Steering Wheel Pad	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45130-16181-01	Button Assy, Horn	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45130-16181-04	Button Assy, Horn	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45180-16020-01	Cover Sub-Assy, Steering Wheel	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
45180-16020-04	Cover Sub-Assy, Steering Wheel	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
90179-12086	Nut, Steering Wheel Set	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
93315-15016	SCREW WWASHER	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
93540-44014	New Genuine Part	Steering Wheel ([05.1988 - ] (8805- )CD,LIM,TX)
