EL30

Toyota COROLLA · 1986 · 3,638 parts · 167 categories
EL30 ×

← Back to categories

3,638 items

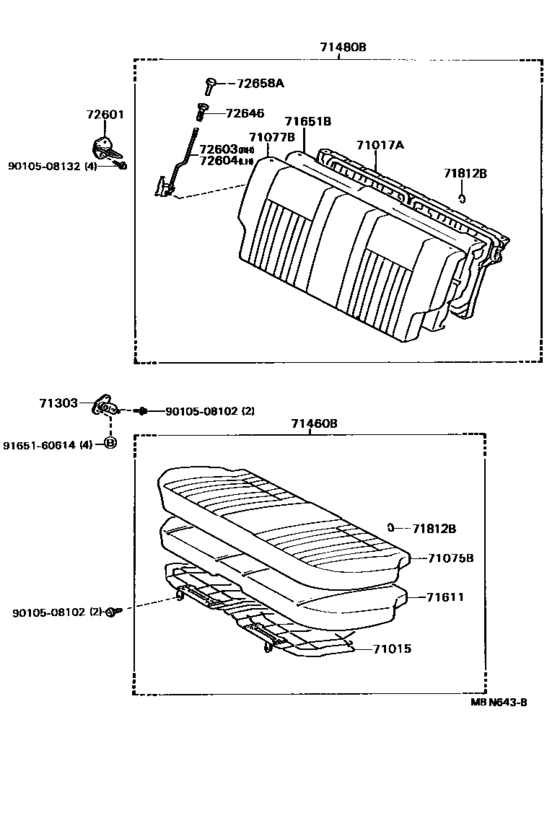

Rear Seat & Seat Track ([05.1988 - ] (8805- )CD,LIM,TX) 30
#OEMPart name
71015 71015-16070 Frame Sub-Assy, Rear Seat Cushion
71017 71017-16110 Frame Sub-Assy, Rear Seat Back
71075 71065-16510-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-16510-04 Cover, Rear Seat Cushion (For Bench Type)
71077 71077-1G340-03 Cover, Rear Seat Back (For Bench Type)
71077 71077-1G340-04 Cover, Rear Seat Back (For Bench Type)
71303 71303-16040 Hinge Sub-Assy, Rear Seat Back
71460 71560-16570-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-16570-04 Cushion Assy, Rear Seat (For Bench Type)
71480 71480-1G490-03 Back Assy, Rear Seat (For Bench Type)
71480 71480-1G490-04 Back Assy, Rear Seat (For Bench Type)
71611 71611-16170 Pad, Rear Seat Cushion
71651 71651-16220 Pad, Rear Seat Back(For Bench Type)
71812 90468-18071 Clip (For Front Seat Cushion Cover)
71812 90468-16019 Clip (For Rear Seat Back)
72601 72601-16070 Striker Sub-Assy, Rear Seat Lock
72601 72601-16100 Striker Sub-Assy, Rear Seat Back Look, Rh
72603 72630-16140 Lock Sub-Assy, Rear Seat Back, Rh
72604 72640-16100 Lock Sub-Assy, Rear Seat Back, Lh
72646 72646-16010-01 Grommet, Rear Seat Back Stop Button
72646 72646-16010-04 Grommet, Rear Seat Back Stop Button
72658 72658-16020-01 Knob, Rear Seat Back Locking
72658 72658-23010-C0 Knob, Rear Seat Back Locking
72658 72658-16020-04 Knob, Rear Seat Back Locking
72658 72658-23010-01 Button, Rear Seat Back Stop Release
72658 72658-23010-04 Button, Rear Seat Back Stop Release
9010508102 90105-08102 New Genuine Part
9010508132 90105-08132 New Genuine Part
9010508132 91511-B0814 BOLT
9165160614 91651-60614 Bolt
