EL30

Toyota COROLLA · 1986 · 3,638 parts · 167 categories

3,638 items

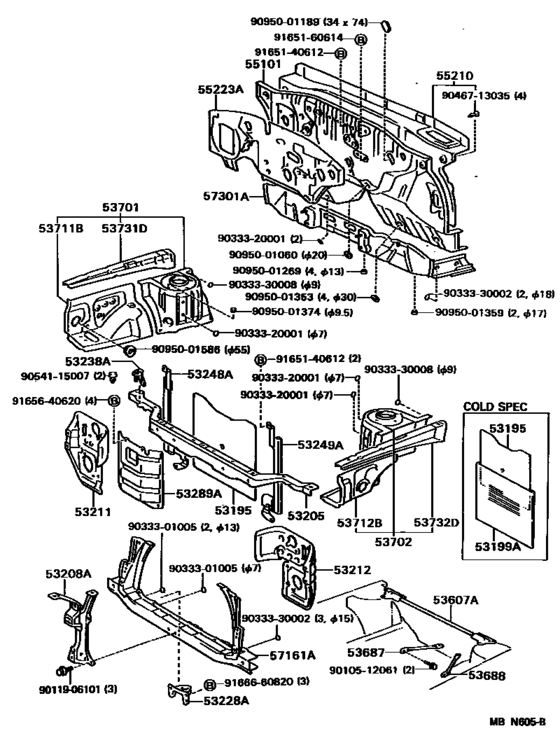

Front Fender Apron & Dash Panel ([05.1988 - ] (8805- )) 43

#	OEM	Part name
53205	53216-16080	Support Sub-Assy, Radiator, Upper
53208	53208-16050	Support Sub-Assy, Hood Lock
53208	53208-16070	Support Sub-Assy, Hood Lock
53211	53211-16070	Support, Radiator, Rh
53212	53212-16070	Support, Radiator, Lh
53228	53228-16070	Bracket, Radiator Mounting, Lower No.1
53238	53238-16010	Bracket, Hood Bumper Mounting
53701	53701-16160	Apron Sub-Assy, Front Fender, Rh
53702	53702-16090	Apron Sub-Assy, Front Fender, Lh
53711	53711-16090	Apron, Front Fender, Front Rh
53712	53712-10190	Apron, Front Fender, Front Lh
53731	53731-16020	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-16020	Member, Front Apron To Cowl Side, Upper Lh
55101	55101-16220	Panel Sub-Assy, Dash
55210	55210-16060	Insulator Assy, Dash Panel
57161	57161-16906	Member, Front Cross, Front W/rear
57301	57301-16010	Member Sub-Assy, Steering Gear Box Support
9010512061	90105-12061	Bolt(For Front Lower Arm Bracket)
9011906101	90119-06101	New Genuine Part
9011906101	90119-06010	BOLT WWASHER
9033301005	90333-01005	New Genuine Part
9033320001	90333-20001	PLUG
9033330002	90333-30002	Cover, Front Floor Hole
9033330008	90333-30008	PLUG PLATE
9046713035	90467-13035	Clip
9054115007	90541-15007	Cushion, Hood Bumper
9054115007	90541-15026	Cushion, Hood Bumper
9095001060	90950-01060	Plug, Hole, No.1(For Dash Panel)
9095001060	90950-01866	Plug, Hole(For Front Door Panel)
9095001189	90950-01189	Plug, Hole, No.3(For Dash Panel)
9095001269	90950-01269	New Genuine Part
9095001269	90950-01453	New Genuine Part
9095001353	90950-01353	Plug, Hole(For Rocker Inner Panel)
9095001359	90950-01359	New Genuine Part
9095001374	90950-01374	Cover, Switch Hole
9095001586	90950-01586	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165160614	91651-60614	Bolt
9165640620	91656-40620	Bolt(For Oil Receiver Pipe)
9165640620	91651-60618	Bolt(For Oil Receiver Pipe)
9166660820	91666-60820	New Genuine Part
9166660820	91661-60816	Bolt

OEM	Part name	Category
53208-16050	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53208-16070	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53211-16070	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53212-16070	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53216-16080	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53228-16070	Bracket, Radiator Mounting, Lower No.1	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53238-16010	Bracket, Hood Bumper Mounting	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53701-16160	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53702-16090	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53711-16090	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53712-10190	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53731-16020	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
53732-16020	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
55101-16220	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
55210-16060	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
57161-16906	Member, Front Cross, Front W/rear	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
57301-16010	Member Sub-Assy, Steering Gear Box Support	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90080-11225	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90105-12061	Bolt(For Front Lower Arm Bracket)	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90119-06010	BOLT WWASHER	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90119-06101	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90333-01005	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90333-20001	PLUG	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90333-30002	Cover, Front Floor Hole	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90333-30008	PLUG PLATE	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90467-13035	Clip	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90541-15007	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90541-15026	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01060	Plug, Hole, No.1(For Dash Panel)	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01189	Plug, Hole, No.3(For Dash Panel)	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01269	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01353	Plug, Hole(For Rocker Inner Panel)	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01359	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01374	Cover, Switch Hole	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01453	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01586	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
90950-01866	Plug, Hole(For Front Door Panel)	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
91651-40612	BOLT	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
91651-60614	Bolt	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
91651-60618	Bolt(For Oil Receiver Pipe)	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
91656-40620	Bolt(For Oil Receiver Pipe)	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
91661-60816	Bolt	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
91666-60820	New Genuine Part	Front Fender Apron & Dash Panel ([05.1988 - ] (8805- ))
