EL30

Toyota COROLLA · 1986 · 3,638 parts · 167 categories

3,638 items

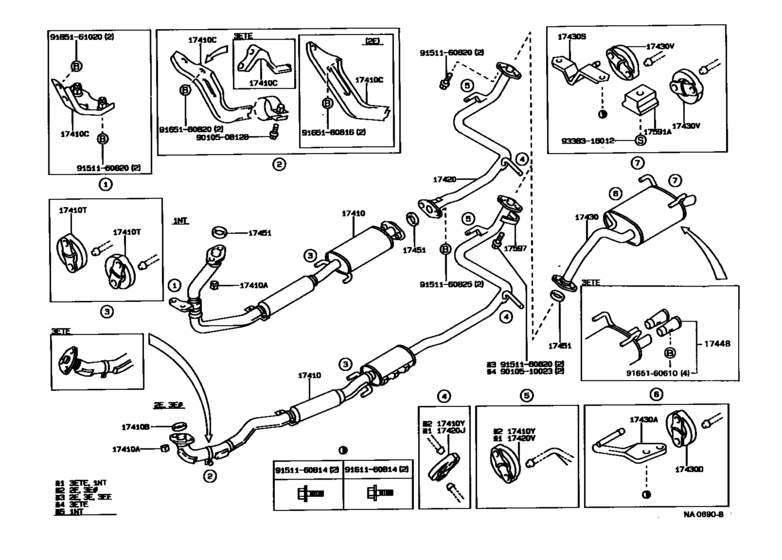

Exhaust Pipe ([05.1988 - ] (8805- )) 35

#	OEM	Part name
17410	17410-11190	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06004	Gasket(For Manifold Extension)
17410	90917-06039	Gasket, Exhaust Pipe
17410	17571-11020	Bracket, Exhaust Pipe Front (For Front)
17410	17565-55020	Bolt Or Ring, Exhaust Pipe Front (For Center)
17410	17565-11100	Bolt Or Ring, Exhaust Pipe Front (For Front)
17430	17430-11080	Pipe Assy, Exhaust, Tail
17430	17430-11081	Pipe Assy, Exhaust, Tail
17430	17507-11010	Bracket, Exhaust Tail Pipe(For Front)
17430	17508-11010	Bracket, Exhaust Tail Pipe (For Rear)
17430	17565-63030	Bracket, Catalytic Converter Support
17451	90917-06026	Gasket, Exhaust Pipe
17451	90917-06060	Gasket, Exhaust Pipe, Center
17591	17591-11010	Stopper, Exhaust Pipe Support
9010508128	90105-08128	Bolt (For Front Oil Pump Setting)
9010508128	91511-K0840	Bolt(For Crankshaft Bearing Cap Set)
9010510023	90105-10023	Bolt
9010510023	91512-81035	BOLT
9151160814	91511-60814	New Genuine Part
9151160814	91511-B0814	BOLT
9151160820	91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160820	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9161160814	91611-60814	Bolt
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9165161020	91651-61020	Bolt, No.1 (For Center Support Bearing)
9338316012	93383-16012	New Genuine Part

OEM	Part name	Category
17410-11190	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.1988 - ] (8805- ))
17430-11080	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.1988 - ] (8805- ))
17430-11081	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.1988 - ] (8805- ))
17507-11010	Bracket, Exhaust Tail Pipe(For Front)	Exhaust Pipe ([05.1988 - ] (8805- ))
17508-11010	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([05.1988 - ] (8805- ))
17565-11100	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([05.1988 - ] (8805- ))
17565-55020	Bolt Or Ring, Exhaust Pipe Front (For Center)	Exhaust Pipe ([05.1988 - ] (8805- ))
17565-63030	Bracket, Catalytic Converter Support	Exhaust Pipe ([05.1988 - ] (8805- ))
17571-11020	Bracket, Exhaust Pipe Front (For Front)	Exhaust Pipe ([05.1988 - ] (8805- ))
17591-11010	Stopper, Exhaust Pipe Support	Exhaust Pipe ([05.1988 - ] (8805- ))
90080-11396	Bolt	Exhaust Pipe ([05.1988 - ] (8805- ))
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1988 - ] (8805- ))
90105-08128	Bolt (For Front Oil Pump Setting)	Exhaust Pipe ([05.1988 - ] (8805- ))
90105-10023	Bolt	Exhaust Pipe ([05.1988 - ] (8805- ))
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1988 - ] (8805- ))
90917-06004	Gasket(For Manifold Extension)	Exhaust Pipe ([05.1988 - ] (8805- ))
90917-06026	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1988 - ] (8805- ))
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1988 - ] (8805- ))
90917-06060	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([05.1988 - ] (8805- ))
91511-60814	New Genuine Part	Exhaust Pipe ([05.1988 - ] (8805- ))
91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Exhaust Pipe ([05.1988 - ] (8805- ))
91511-60825	Bolt (For Transfer Stiffener Plate)	Exhaust Pipe ([05.1988 - ] (8805- ))
91511-B0814	BOLT	Exhaust Pipe ([05.1988 - ] (8805- ))
91511-B0825	Bolt (For Transfer Stiffener Plate)	Exhaust Pipe ([05.1988 - ] (8805- ))
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Exhaust Pipe ([05.1988 - ] (8805- ))
91511-K0840	Bolt(For Crankshaft Bearing Cap Set)	Exhaust Pipe ([05.1988 - ] (8805- ))
91512-81035	BOLT	Exhaust Pipe ([05.1988 - ] (8805- ))
91611-60814	Bolt	Exhaust Pipe ([05.1988 - ] (8805- ))
91651-60610	BOLT	Exhaust Pipe ([05.1988 - ] (8805- ))
91651-60816	BOLT	Exhaust Pipe ([05.1988 - ] (8805- ))
91651-60820	Bolt, Radiator Side Support Plate	Exhaust Pipe ([05.1988 - ] (8805- ))
91651-61020	Bolt, No.1 (For Center Support Bearing)	Exhaust Pipe ([05.1988 - ] (8805- ))
91651-B0610	BOLTWWASHER	Exhaust Pipe ([05.1988 - ] (8805- ))
91651-B0820	Bolt, Radiator Side Support Plate	Exhaust Pipe ([05.1988 - ] (8805- ))
93383-16012	New Genuine Part	Exhaust Pipe ([05.1988 - ] (8805- ))
