Search › Model › EH6
EH6

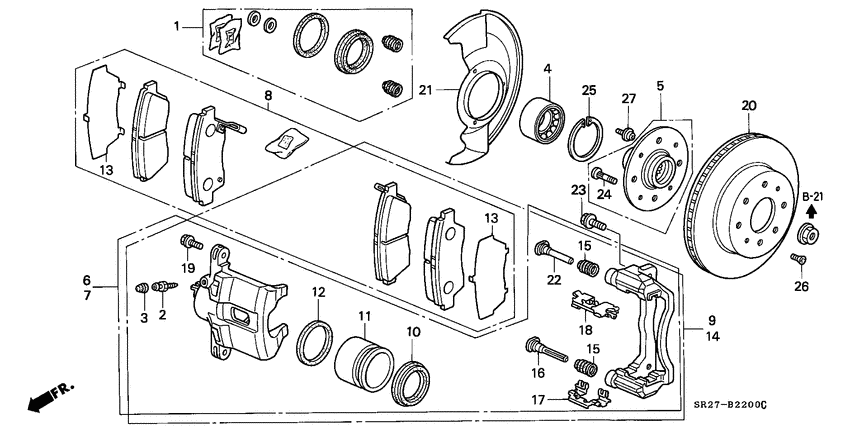

Front brake 25
| # | OEM | Part name |
|---|---|---|
| 1 | 01463-SR3-V00 | Caliper set - FR. |
| 2 | 43352-SM4-951 | Screw - BLEEDER |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW |
| 4 | 44300-S04-A02 | Bearing assy - FR. HUB (KOYO SEIKO) |
| 4 | 44300-S5A-004 | FR HUB Bearing assy (KOYO SEIKO) |
| 4 | 44300-S04-A01 | Bearing assy - FR. HUB (NTN) |
| 4 | 44300-S5A-008 | FR HUB Bearing assy (NTN) |
| 5 | 44600-S04-A00 | Hub assy - FR. |
| 6 | 45018-S04-V01 | Caliper sub assy. - R. FR. |
| 7 | 45019-S04-V01 | Caliper sub assy. - L. FR. |
| 8 | 45022-S04-V10 | Pad set - FR. |
| 11 | 45216-SR3-V01 | Piston - 54MM |
| 11 | 45216-S5A-J01 | Piston |
| 16 | 45235-SR3-003 | Pin a |
| 17 | 45237-SR3-003 | Retainer a |
| 18 | 45238-SR3-003 | Retainer b |
| 19 | 45240-SC2-003 | Bolt - FLANGE, 8X22 |
| 20 | 45251-SK7-J00 | Disk - FR. BRAKE |
| 21 | 45255-SR3-V01 | Guard - FR. BRAKE SPLASH |
| 22 | 45262-SR3-003 | Pin b |
| 23 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) |
| 24 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) |
| 24 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) |
| 24 | 90113-SA0-006 | Bolt - WHEEL (SAGA) |
| 25 | 90681-SR3-A00 | Circlip, SPECIAL INTERNAL, 79MM |
| OEM | Part name | Category |
|---|---|---|
| 01463-SR3-V00 | Caliper set - FR. | Front brake |
| 43352-SM4-951 | Screw - BLEEDER | Front brake |
| 43353-SD5-003 | Cap - BLEEDER SCREW | Front brake |
| 44300-S04-A01 | Bearing assy - FR. HUB (NTN) | Front brake |
| 44300-S04-A02 | Bearing assy - FR. HUB (KOYO SEIKO) | Front brake |
| 44300-S5A-004 | FR HUB Bearing assy (KOYO SEIKO) | Front brake |
| 44300-S5A-008 | FR HUB Bearing assy (NTN) | Front brake |
| 44600-S04-A00 | Hub assy - FR. | Front brake |
| 45018-S04-V01 | Caliper sub assy. - R. FR. | Front brake |
| 45019-S04-V01 | Caliper sub assy. - L. FR. | Front brake |
| 45022-S04-V10 | Pad set - FR. | Front brake |
| 45216-S5A-J01 | Piston | Front brake |
| 45216-SR3-V01 | Piston - 54MM | Front brake |
| 45235-SR3-003 | Pin a | Front brake |
| 45237-SR3-003 | Retainer a | Front brake |
| 45238-SR3-003 | Retainer b | Front brake |
| 45240-SC2-003 | Bolt - FLANGE, 8X22 | Front brake |
| 45251-SK7-J00 | Disk - FR. BRAKE | Front brake |
| 45255-SR3-V01 | Guard - FR. BRAKE SPLASH | Front brake |
| 45262-SR3-003 | Pin b | Front brake |
| 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Front brake |
| 90113-SA0-006 | Bolt - WHEEL (SAGA) | Front brake |
| 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Front brake |
| 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Front brake |
| 90681-SR3-A00 | Circlip, SPECIAL INTERNAL, 79MM | Front brake |
