Search › Model › EG2
EG2

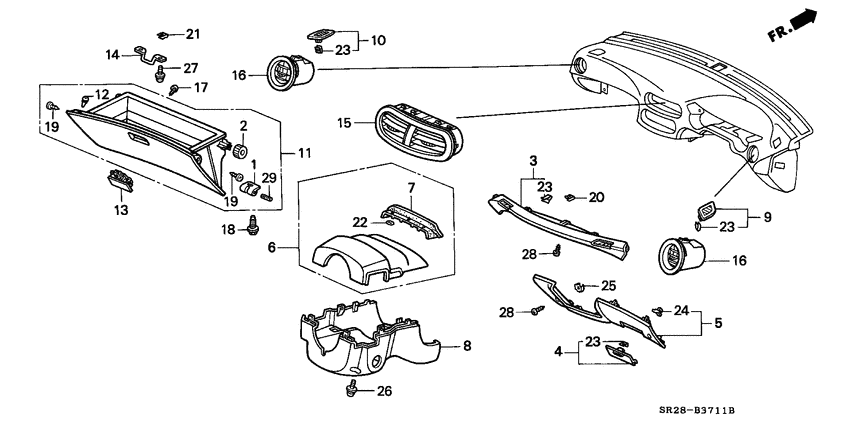

Instrument panel garnish (RH) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 66405-SD4-000 | Stay - GLOVE BOX HINGE |
| 2 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER |
| 7 | 77351-SR2-000 | Boot - COLUMN |
| 12 | 77509-SR3-000 | Stopper - GLOVE BOX |
| 14 | 77542-SR3-000 | Striker - GLOVE BOX |
| 18 | 90140-SH3-003 | Bolt-washer - 5X18 |
| 19 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) |
| 20 | 90302-SA4-003 | Nut - SPRING, 4MM |
| 21 | 90305-SA0-000 | Nut - FLOATING, 4MM |
| 22 | 90310-SB2-003 | Nut - SPEED |
| 23 | 90666-SD4-003 | Clip - FITTING |
| 24 | 90666-SR2-000 | Clip - INSTRUMENT DRIVER LOWER |
| 25 | 91640-SM4-003 | Grommet - SCREW, 4MM |
| OEM | Part name | Category |
|---|---|---|
| 66405-SD4-000 | Stay - GLOVE BOX HINGE | Instrument panel garnish (RH) |
| 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Instrument panel garnish (RH) |
| 77351-SR2-000 | Boot - COLUMN | Instrument panel garnish (RH) |
| 77509-SR3-000 | Stopper - GLOVE BOX | Instrument panel garnish (RH) |
| 77542-SR3-000 | Striker - GLOVE BOX | Instrument panel garnish (RH) |
| 90140-SH3-003 | Bolt-washer - 5X18 | Instrument panel garnish (RH) |
| 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Instrument panel garnish (RH) |
| 90302-SA4-003 | Nut - SPRING, 4MM | Instrument panel garnish (RH) |
| 90305-SA0-000 | Nut - FLOATING, 4MM | Instrument panel garnish (RH) |
| 90310-SB2-003 | Nut - SPEED | Instrument panel garnish (RH) |
| 90666-SD4-003 | Clip - FITTING | Instrument panel garnish (RH) |
| 90666-SR2-000 | Clip - INSTRUMENT DRIVER LOWER | Instrument panel garnish (RH) |
| 91640-SM4-003 | Grommet - SCREW, 4MM | Instrument panel garnish (RH) |
