EG2

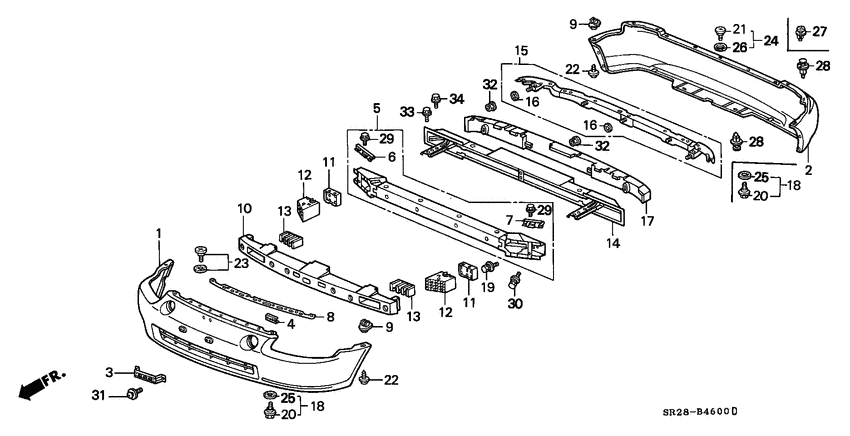

Bumpers (1) 20
| # | OEM | Part name |
|---|---|---|
| 4 | 71113-SH2-000 | Nut - LICENSE PLATE |
| 8 | 71142-SR2-000 | Stiffener - FR. BUMPER UPPER |
| 9 | 71144-SR3-013 | Grommet - BUMPER SIDE |
| 10 | 71170-SR2-A00 | Absorber - FR. BUMPER |
| 11 | 71172-SR2-A00 | Gusset - FR. BUMPER BEAM |
| 12 | 71172-SR3-A00 | Gusset - FR. BUMPER BEAM |
| 13 | 71173-SR2-A00 | Gusset - FR. BUMPER BEAM CENTER |
| 15 | 71540-SR2-000 | Beam, RR. BUMPER UPPER |
| 16 | 71544-SR2-000 | Seal - RR. UPPER BEAM |
| 17 | 71570-SR2-A00 | Absorber - RR. BUMPER |
| 18 | 90101-SE0-010 | Bolt assy. b - BUMPER |
| 19 | 90105-634-000 | Bolt-washer (8x20) |
| 20 | 90109-SE0-003 | Bolt b - BUMPER |
| 21 | 90112-SM4-003 | Bolt - BUMPER |
| 22 | 90121-SA7-000 | Screw - TAPPING, 5X16 |
| 23 | 90130-SR2-003 | Bolt assy - BUMPER |
| 24 | 90130-SH3-010 | Bolt assy - BUMPER |
| 25 | 90540-SA7-000 | Washer - BUMPER |
| 26 | 90540-SE0-000 | Washer - BUMPER |
| 28 | 91503-SZ3-003 | Clip A |
| OEM | Part name | Category |
|---|---|---|
| 71113-SH2-000 | Nut - LICENSE PLATE | Bumpers (1) |
| 71142-SR2-000 | Stiffener - FR. BUMPER UPPER | Bumpers (1) |
| 71144-SR3-013 | Grommet - BUMPER SIDE | Bumpers (1) |
| 71170-SR2-A00 | Absorber - FR. BUMPER | Bumpers (1) |
| 71172-SR2-A00 | Gusset - FR. BUMPER BEAM | Bumpers (1) |
| 71172-SR3-A00 | Gusset - FR. BUMPER BEAM | Bumpers (1) |
| 71173-SR2-A00 | Gusset - FR. BUMPER BEAM CENTER | Bumpers (1) |
| 71540-SR2-000 | Beam, RR. BUMPER UPPER | Bumpers (1) |
| 71544-SR2-000 | Seal - RR. UPPER BEAM | Bumpers (1) |
| 71570-SR2-A00 | Absorber - RR. BUMPER | Bumpers (1) |
| 90101-SE0-010 | Bolt assy. b - BUMPER | Bumpers (1) |
| 90105-634-000 | Bolt-washer (8x20) | Bumpers (1) |
| 90109-SE0-003 | Bolt b - BUMPER | Bumpers (1) |
| 90112-SM4-003 | Bolt - BUMPER | Bumpers (1) |
| 90121-SA7-000 | Screw - TAPPING, 5X16 | Bumpers (1) |
| 90130-SH3-010 | Bolt assy - BUMPER | Bumpers (1) |
| 90130-SR2-003 | Bolt assy - BUMPER | Bumpers (1) |
| 90540-SA7-000 | Washer - BUMPER | Bumpers (1) |
| 90540-SE0-000 | Washer - BUMPER | Bumpers (1) |
| 91503-SZ3-003 | Clip A | Bumpers (1) |
