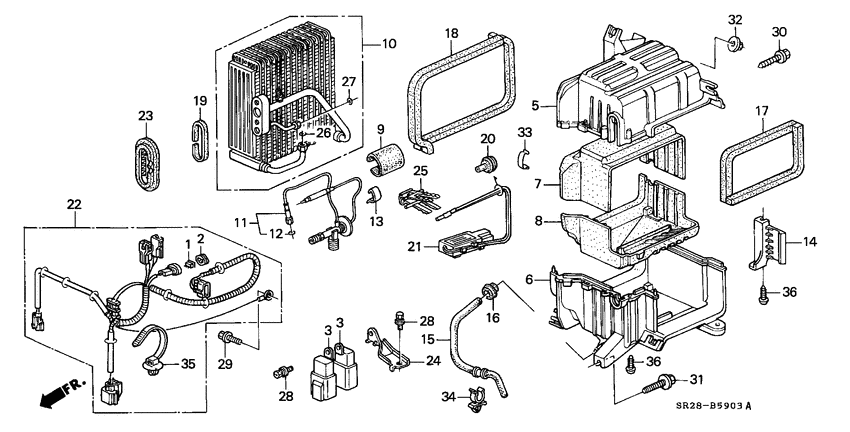

| 32147-SF1-003 |
Connector - DIODE(3P) |
Air conditioner (COOLING UNIT; 4) |
| 32148-SF1-003 |
Rubber - SEAL |
Air conditioner (COOLING UNIT; 4) |
| 39795-SB2-003 |
Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
Air conditioner (COOLING UNIT; 4) |
| 80201-SR3-000 |
Case - EVAPORATOR UPPER |
Air conditioner (COOLING UNIT; 4) |
| 80202-SR3-000 |
Case - EVAPORATOR LOWER |
Air conditioner (COOLING UNIT; 4) |
| 80205-SR2-000 |
Insulator - EVAPORATOR UPPER |
Air conditioner (COOLING UNIT; 4) |
| 80206-SR2-000 |
Insulator - EVAPORATOR LOWER |
Air conditioner (COOLING UNIT; 4) |
| 80214-SL5-A01 |
Insulator - EXPANSION |
Air conditioner (COOLING UNIT; 4) |
| 80215-SR2-013 |
Evaporator comp. |
Air conditioner (COOLING UNIT; 4) |
| 80220-ST7-A02 |
Valve assy. - EXPANSION (10N) (FUJI KOKI) |
Air conditioner (COOLING UNIT; 4) |
| 80223-ST7-A01 |
O-ring - FUJI KOKI |
Air conditioner (COOLING UNIT; 4) |
| 80225-SR3-010 |
Clamp |
Air conditioner (COOLING UNIT; 4) |
| 80266-SR3-000 |
Plate - EVAPORATOR HARNESS |
Air conditioner (COOLING UNIT; 4) |
| 80271-SR3-000 |
Hose - DRAIN |
Air conditioner (COOLING UNIT; 4) |
| 80272-SF4-000 |
Grommet - DRAIN HOSE |
Air conditioner (COOLING UNIT; 4) |
| 80286-SR3-000 |
Seal - EVAPORATOR INNER |
Air conditioner (COOLING UNIT; 4) |
| 80287-SR3-000 |
Seal - EVAPORATOR OUTER |
Air conditioner (COOLING UNIT; 4) |
| 80288-SR3-000 |
Seal - EVAPORATOR JOINT |
Air conditioner (COOLING UNIT; 4) |
| 80291-SR3-000 |
Grommet - EVAPORATOR SENSOR |
Air conditioner (COOLING UNIT; 4) |
| 80411-SR2-003 |
Knob - AIR CONDITIONER SWITCH |
Air conditioner (COOLING UNIT; 4) |
| 80430-SR3-003 |
Thermostat - AIR CONDITIONER |
Air conditioner (COOLING UNIT; 4) |
| 80460-SR3-020 |
Harness - AIR CONDITIONER WIRE (MANUAL AIR CONDITIONER) |
Air conditioner (COOLING UNIT; 4) |
| 80464-SR3-000 |
Grommet - AIR CONDITIONER PIPE |
Air conditioner (COOLING UNIT; 4) |
| 80491-SR3-000 |
Bracket - AIR CONDITIONER RELAY |
Air conditioner (COOLING UNIT; 4) |
| 80566-SR3-003 |
Clip - EVAPORATOR SENSOR |
Air conditioner (COOLING UNIT; 4) |
| 80872-ST7-000 |
O-ring - 1/2" |
Air conditioner (COOLING UNIT; 4) |
| 80873-ST7-000 |
O-ring - 8MM |
Air conditioner (COOLING UNIT; 4) |
| 90012-PC6-000 |
Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
Air conditioner (COOLING UNIT; 4) |
| 90153-SE0-003 |
Bolt - EARTH, 6X12 |
Air conditioner (COOLING UNIT; 4) |
| 90155-SE0-003 |
Screw - TAPPING, 6X20 |
Air conditioner (COOLING UNIT; 4) |
| 90156-SH3-000 |
Bolt-washer - 6X24 |
Air conditioner (COOLING UNIT; 4) |
| 90321-SV4-003 |
Nut-washer - 6MM (PAINT CUTTING) |
Air conditioner (COOLING UNIT; 4) |
| 90659-692-000 |
Clamp - CASE |
Air conditioner (COOLING UNIT; 4) |
| 91546-SR3-003 |
Clamp - 16.5 |
Air conditioner (COOLING UNIT; 4) |
| 91547-SF4-003 |
Band - WIRE HARNESS (BLUE) (123.5MM) |
Air conditioner (COOLING UNIT; 4) |
