EE97

Toyota COROLLA · 1987 · 5,156 parts · 305 categories

5,156 items

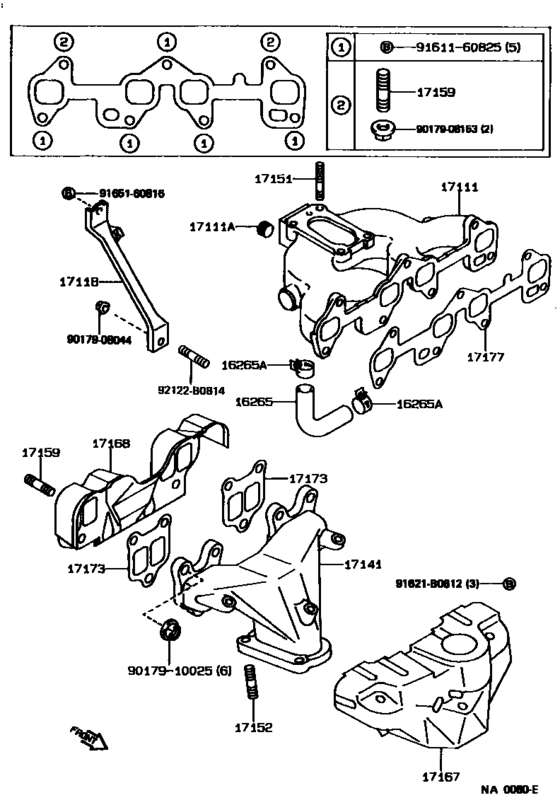

Manifold ([05.1987 - ] (8705- )2E) 29

#	OEM	Part name
16265	16265-11010	Hose, Intake Manifold Water
16265	90467-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)
16265	90467-21006	Clip(For Ventilation Hose No.2)
17111	17101-10060	Manifold, Intake
17111	90344-53015	Plug, W/head Taper Screw, No.1
17141	17141-11040	Manifold, Exhaust
17141	17141-11041	Manifold, Exhaust
17151	92122-40828	Bolt, Stud(For Timing Gear Cover)
17152	90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	92122-61028	Bolt, Stud(For Manifold To Cylinder Head)
17159	92132-60825	Bolt, Stud(For Manifold To Cylinder Head)
17167	17107-11090	Insulator, Exhaust Manifold Heat, No.1
17167	17167-11040	Insulator, Exhaust Manifold Heat, No.1
17168	17168-10011	Insulator, Exhaust Manifold Heat, No.2
17173	17173-10020	Gasket, Exhaust Manifold To Head
17173	17173-10021	Gasket, Exhaust Manifold To Head
17177	17177-10010	Gasket, Intake Manifold To Head, No.1
17177	17177-10020	Gasket, Intake Manifold To Head, No.1
17177	17177-10011	Gasket, Intake Manifold To Head, No.1
91621	91621-B0612	New Genuine Part
91621	91621-J0612	BOLT W-WASHER
92122	92122-B0814	New Genuine Part
9017908044	90179-08044	NUT
9017908153	90179-08153	NUT
9017910025	90179-10025	NUT
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt

OEM	Part name	Category
16265-11010	Hose, Intake Manifold Water	Manifold ([05.1987 - ] (8705- )2E)
17101-10060	Manifold, Intake	Manifold ([05.1987 - ] (8705- )2E)
17107-11090	Insulator, Exhaust Manifold Heat, No.1	Manifold ([05.1987 - ] (8705- )2E)
17141-11040	Manifold, Exhaust	Manifold ([05.1987 - ] (8705- )2E)
17141-11041	Manifold, Exhaust	Manifold ([05.1987 - ] (8705- )2E)
17167-11040	Insulator, Exhaust Manifold Heat, No.1	Manifold ([05.1987 - ] (8705- )2E)
17168-10011	Insulator, Exhaust Manifold Heat, No.2	Manifold ([05.1987 - ] (8705- )2E)
17173-10020	Gasket, Exhaust Manifold To Head	Manifold ([05.1987 - ] (8705- )2E)
17173-10021	Gasket, Exhaust Manifold To Head	Manifold ([05.1987 - ] (8705- )2E)
17177-10010	Gasket, Intake Manifold To Head, No.1	Manifold ([05.1987 - ] (8705- )2E)
17177-10011	Gasket, Intake Manifold To Head, No.1	Manifold ([05.1987 - ] (8705- )2E)
17177-10020	Gasket, Intake Manifold To Head, No.1	Manifold ([05.1987 - ] (8705- )2E)
90080-11396	Bolt	Manifold ([05.1987 - ] (8705- )2E)
90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([05.1987 - ] (8705- )2E)
90179-08044	NUT	Manifold ([05.1987 - ] (8705- )2E)
90179-08153	NUT	Manifold ([05.1987 - ] (8705- )2E)
90179-10025	NUT	Manifold ([05.1987 - ] (8705- )2E)
90344-53015	Plug, W/head Taper Screw, No.1	Manifold ([05.1987 - ] (8705- )2E)
90467-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Manifold ([05.1987 - ] (8705- )2E)
90467-21006	Clip(For Ventilation Hose No.2)	Manifold ([05.1987 - ] (8705- )2E)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Manifold ([05.1987 - ] (8705- )2E)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Manifold ([05.1987 - ] (8705- )2E)
91621-B0612	New Genuine Part	Manifold ([05.1987 - ] (8705- )2E)
91621-J0612	BOLT W-WASHER	Manifold ([05.1987 - ] (8705- )2E)
91651-60816	BOLT	Manifold ([05.1987 - ] (8705- )2E)
92122-40828	Bolt, Stud(For Timing Gear Cover)	Manifold ([05.1987 - ] (8705- )2E)
92122-61028	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([05.1987 - ] (8705- )2E)
92122-B0814	New Genuine Part	Manifold ([05.1987 - ] (8705- )2E)
92132-60825	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([05.1987 - ] (8705- )2E)
