EE97

Toyota COROLLA · 1987 · 5,156 parts · 305 categories
EE97 ×

← Back to categories

5,156 items

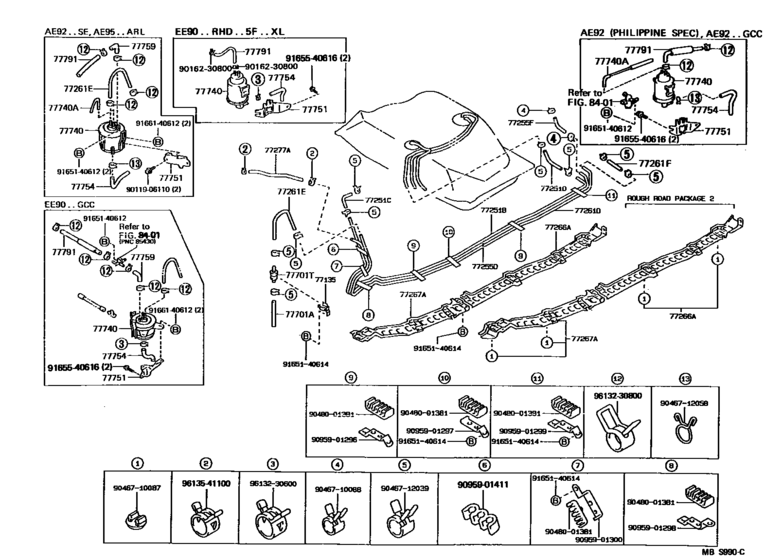

Fuel Tank & Tube ([08.1989 - ] (8908- )AE92,EE9#..GL,STD,XL) 45
#OEMPart name
77135 77135-20050 Bracket, Check Valve
77251 77251-12470 Tube, Fuel Main
77251 77259-12100 Hose, Fuel, No.1(For Fuel Main Tube)
77251 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77251 95337-06020 Hose, Differential Pressure Control
77255 77255-12410 Tube, Fuel Return
77255 95333-04015 Hose, Fuel, No.2 (For Fuel Return Tube)
77255 95337-04015 Hose, Fuel, No.2 (For Fuel Return Tube)
77261 77261-12250 Tube, Fuel Tank To Canister
77261 77259-12140 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266 77266-12030 Protector, Fuel Tube, No.1
77266 77266-12040 Protector, Fuel Tube, No.1
77267 77267-12060 Protector, Fuel Tube, No.2
77267 77267-12070 Protector, Fuel Tube, No.2
77277 23271-11011 Hose, Fuel, No.1(For Return Tube, No.1)
77701 77249-12050 Hose, Fuel, No.1 (For Breather Valve)
77701 90917-10069 Valve, Check (For Main Fuel Tank)
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
9011906110 90119-06110 New Genuine Part
9011906110 90119-06442 BOLT WWASHER
9016230800 90162-30800 New Genuine Part
9046710087 90467-10087 New Genuine Part
9046710088 90467-10088 Clip, No.2(For Idle-Up Hose)
9046710088 96132-41000 Clip, No.1(For Idle-Up Hose)
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046712058 90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)
9048001381 90480-01381 New Genuine Part
9095901296 90959-01296 New Genuine Part
9095901297 90959-01297 New Genuine Part
9095901298 90959-01298 New Genuine Part
9095901299 90959-01299 New Genuine Part
9095901300 90959-01300 New Genuine Part
9095901411 90959-01411 New Genuine Part
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140614 91651-40614 Bolt
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9166140612 91661-40612 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
9613541100 96135-41100 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9613541100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
Source
Public OEM parts-catalog data
Variants
2 / 7
Category
305
Collected
2026-08-02
