Search › Model › EE97

EE97

Toyota COROLLA · 1987 · 5,156 parts · 305 categories

5,156 items

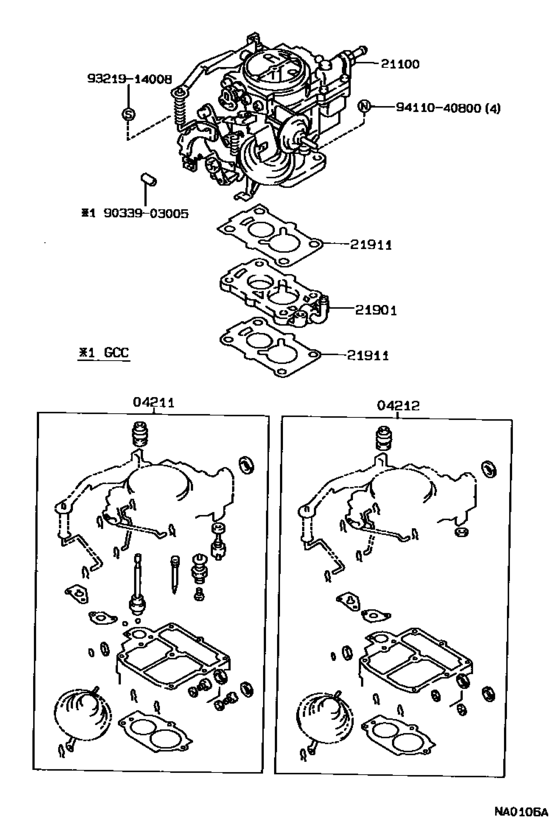

Carburetor Assembly ([05.1987 - ] (8705- )2E) 28

#	OEM	Part name
4211	04211-11050	Carburetor Kit
4211	04211-11052	Carburetor Kit
4211	04211-11051	Carburetor Kit
4211	04211-11070	Carburetor Kit
4211	04211-11072	Carburetor Kit
4211	04211-11071	Carburetor Kit
4211	04211-11080	Carburetor Kit
4211	04211-11082	Carburetor Kit
4211	04211-11081	Carburetor Kit
4212	04212-10020	Gasket Kit, Carburetor
4212	04212-10031	Gasket Kit, Carburetor
4212	04212-10021	Gasket Kit, Carburetor
4212	04212-10030	Gasket Kit, Carburetor
21100	21100-11211	Carburetor Assy
21100	21100-11212	Carburetor Assy
21100	21100-11450	Carburetor Assy
21100	21100-11451	Carburetor Assy
21100	21100-11480	Carburetor Assy
21100	21100-11481	Carburetor Assy
21901	21901-10040	Insulator Sub-Assy, Carburetor Heat, No.1
21901	21901-10041	Insulator Sub-Assy, Carburetor Heat, No.1
21901	21901-11020	Insulator Sub-Assy, Carburetor Heat, No.1
21911	21911-10020	Gasket, Carburetor
21911	21911-10021	Gasket, Carburetor
9033903005	90339-03005	Plug, No.1
9321914008	93219-14008	Screw, W/washer(For Bearing Cover Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)

OEM	Part name	Category
04211-11050	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11051	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11052	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11070	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11071	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11072	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11080	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11081	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04211-11082	Carburetor Kit	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04212-10020	Gasket Kit, Carburetor	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04212-10021	Gasket Kit, Carburetor	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04212-10030	Gasket Kit, Carburetor	Carburetor Assembly ([05.1987 - ] (8705- )2E)
04212-10031	Gasket Kit, Carburetor	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21100-11211	Carburetor Assy	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21100-11212	Carburetor Assy	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21100-11450	Carburetor Assy	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21100-11451	Carburetor Assy	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21100-11480	Carburetor Assy	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21100-11481	Carburetor Assy	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21901-10040	Insulator Sub-Assy, Carburetor Heat, No.1	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21901-10041	Insulator Sub-Assy, Carburetor Heat, No.1	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21901-11020	Insulator Sub-Assy, Carburetor Heat, No.1	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21911-10020	Gasket, Carburetor	Carburetor Assembly ([05.1987 - ] (8705- )2E)
21911-10021	Gasket, Carburetor	Carburetor Assembly ([05.1987 - ] (8705- )2E)
90339-03005	Plug, No.1	Carburetor Assembly ([05.1987 - ] (8705- )2E)
93219-14008	Screw, W/washer(For Bearing Cover Setting)	Carburetor Assembly ([05.1987 - ] (8705- )2E)
94110-40800	Nut(For Steering Damper)	Carburetor Assembly ([05.1987 - ] (8705- )2E)
94130-00802	Nut, No.1 (For Center Support Bearing)	Carburetor Assembly ([05.1987 - ] (8705- )2E)
