EE97

Toyota COROLLA · 1987 · 5,156 parts · 305 categories

5,156 items

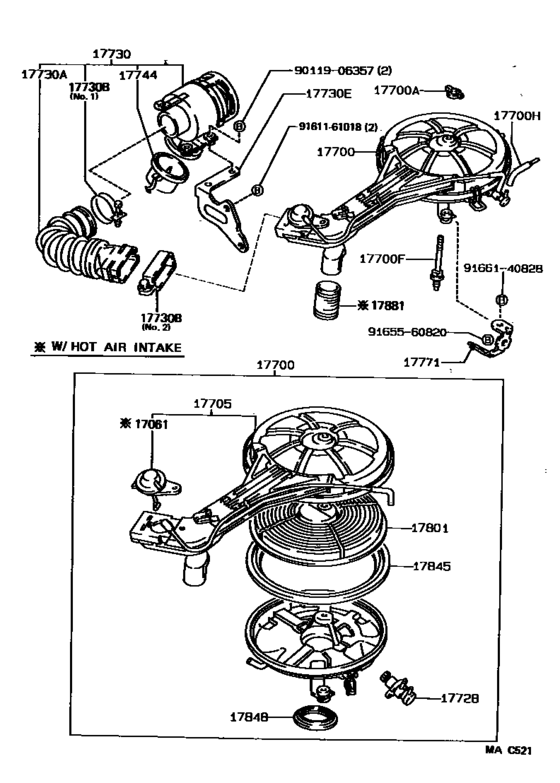

Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E) 39

#	OEM	Part name
17061	17061-10010	Diaphragm Sub-Assy
17700	17700-11200	Cleaner Assy, Air
17700	17700-11210	Cleaner Assy, Air
17700	17700-11540	Cleaner Assy, Air
17700	90175-06010	Nut, Wing(For Air Cleaner)
17700	90116-06142	Bolt, Stud(For Air Cleaner Setting)
17700	17341-10010	Hose, No.1(For Air Injection System)
17705	17705-11180	Cap Sub-Assy, Air Cleaner
17705	17705-11190	Cap Sub-Assy, Air Cleaner
17705	17705-11370	Cap Sub-Assy, Air Cleaner
17728	17728-10010	Valve, Thermostatic
17728	17728-11020	Valve, Thermostatic
17730	17730-11011	Precleaner Assy, Air W/hose
17730	17730-11050	Precleaner Assy, Air W/hose
17730	17730-11020	Precleaner Assy, Air W/hose
17730	17881-11080	Hose, Precleaner
17730	17881-11200	Hose, Precleaner
17730	90460-01005	Clamp(For Air Cleaner Hose, No.2)
17730	90460-01034	Clamp(For Air Cleaner Hose, No.2) - HOSE(FOR PRECLEANER HOSE)
17730	96111-10600	Clamp Or Clip, Hose(For Radiator Outlet No.1)
17730	17741-11010	Bracket, Precleaner, No.1
17730	17741-11020	Bracket, Precleaner, No.1
17744	17744-16020	Cup, Precleaner
17744	17744-35010	Cup, Precleaner
17771	17771-11020	Bracket, Air Cleaner Inlet Duct
17801	17801-10030	Element Sub-Assy, Air Cleaner Filter
17801	17801-11100	Element Sub-Assy, Air Cleaner Filter
17845	17845-10020	Gasket, Filter Element
17848	17848-10021	Gasket, Air Cleaner To Carburetor
17881	17881-10030	Hose, Air Cleaner, No.1
17881	17881-10033	Hose, Air Cleaner, No.1
17881	17881-10031	Hose, Air Cleaner, No.1
17881	17881-10032	Hose, Air Cleaner, No.1
9011906357	90119-06357	BOLT WWASHER
9161161018	91611-61018	Bolt (For Transfer Case)Cover No.2
9161161018	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165560820	91655-60820	BOLT
9165560820	91651-60816	BOLT
9166140828	91661-40828	New Genuine Part

OEM	Part name	Category
17061-10010	Diaphragm Sub-Assy	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17341-10010	Hose, No.1(For Air Injection System)	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17700-11200	Cleaner Assy, Air	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17700-11210	Cleaner Assy, Air	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17700-11540	Cleaner Assy, Air	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17705-11180	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17705-11190	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17705-11370	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17728-10010	Valve, Thermostatic	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17728-11020	Valve, Thermostatic	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17730-11011	Precleaner Assy, Air W/hose	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17730-11020	Precleaner Assy, Air W/hose	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17730-11050	Precleaner Assy, Air W/hose	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17741-11010	Bracket, Precleaner, No.1	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17741-11020	Bracket, Precleaner, No.1	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17744-16020	Cup, Precleaner	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17744-35010	Cup, Precleaner	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17771-11020	Bracket, Air Cleaner Inlet Duct	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17801-10030	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17801-11100	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17845-10020	Gasket, Filter Element	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17848-10021	Gasket, Air Cleaner To Carburetor	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17881-10030	Hose, Air Cleaner, No.1	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17881-10031	Hose, Air Cleaner, No.1	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17881-10032	Hose, Air Cleaner, No.1	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17881-10033	Hose, Air Cleaner, No.1	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17881-11080	Hose, Precleaner	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
17881-11200	Hose, Precleaner	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
90116-06142	Bolt, Stud(For Air Cleaner Setting)	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
90119-06357	BOLT WWASHER	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
90175-06010	Nut, Wing(For Air Cleaner)	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
90460-01005	Clamp(For Air Cleaner Hose, No.2)	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
90460-01034	Clamp(For Air Cleaner Hose, No.2) - HOSE(FOR PRECLEANER HOSE)	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
91611-61018	Bolt (For Transfer Case)Cover No.2	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
91651-60816	BOLT	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
91655-60820	BOLT	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
91661-40828	New Genuine Part	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
96111-10600	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E)
