EE97

Toyota COROLLA · 1987 · 5,156 parts · 305 categories

5,156 items

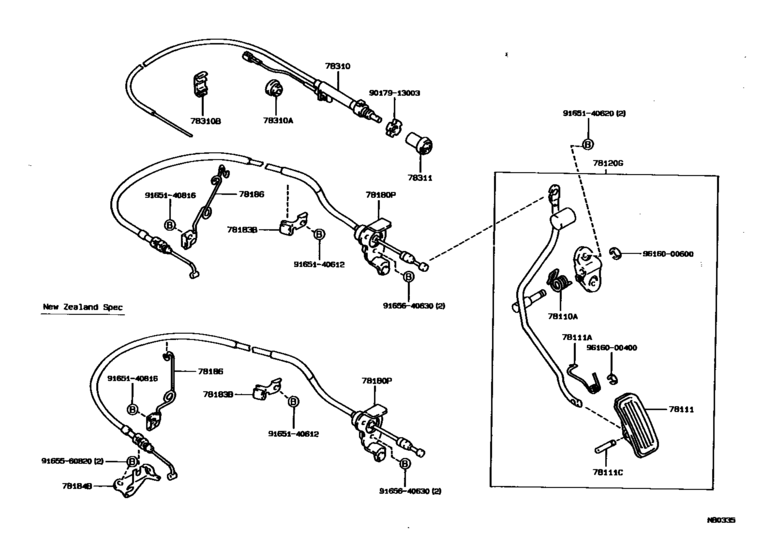

Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD) 24

#	OEM	Part name
78110	90508-18025	Spring (For Accelerator Pedal Rod)
78111	78111-32010	Pedal, Accelerator
78111	90508-20056	Spring (For Accelerator Pedal)
78111	90249-05001	Pin (For Accelerator Pedal)
78120	78120-12080	Rod Assy, Accelerator Pedal
78180	78180-12850	Cable Assy, Accelerator Control
78180	78180-12851	Cable Assy, Accelerator Control
78183	78183-12100	Clamp, Accelerator Control Cable
78186	78186-12200	Support, Accelerator Control Cable, No.1
78310	84506-12060	Cable Assy, Choke
78310	90480-13055	Grommet, Dash Panel, No.3
78310	90464-00117	Clamp, Choke Cable
78311	78311-12021	Knob, Choke Control Cable
9017913003	90179-13003	Bolt Or Nut, Rear Window Defogger Switch Set
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165140620	91651-40620	BOLT
9165140816	91651-40816	BOLT
9165560820	91655-60820	BOLT
9165560820	91651-60816	BOLT
9165640630	91656-40630	New Genuine Part
9165640630	91652-60630	New Genuine Part
9616000400	96160-00400	Ring, E(For Release Arm)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
78111-32010	Pedal, Accelerator	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
78120-12080	Rod Assy, Accelerator Pedal	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
78180-12850	Cable Assy, Accelerator Control	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
78180-12851	Cable Assy, Accelerator Control	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
78183-12100	Clamp, Accelerator Control Cable	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
78186-12200	Support, Accelerator Control Cable, No.1	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
78311-12021	Knob, Choke Control Cable	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
84506-12060	Cable Assy, Choke	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
90080-11225	New Genuine Part	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
90179-13003	Bolt Or Nut, Rear Window Defogger Switch Set	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
90249-05001	Pin (For Accelerator Pedal)	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
90464-00117	Clamp, Choke Cable	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
90480-13055	Grommet, Dash Panel, No.3	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
90508-18025	Spring (For Accelerator Pedal Rod)	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
90508-20056	Spring (For Accelerator Pedal)	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
91651-40612	BOLT	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
91651-40620	BOLT	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
91651-40816	BOLT	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
91651-60816	BOLT	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
91652-60630	New Genuine Part	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
91655-60820	BOLT	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
91656-40630	New Genuine Part	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
96160-00400	Ring, E(For Release Arm)	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Accelerator Link ([05.1987 - ] (8705- )EE9#..RHD)
