Search › Model › EE80

EE80

Toyota COROLLA · 1984 · 4,367 parts · 194 categories

4,367 items

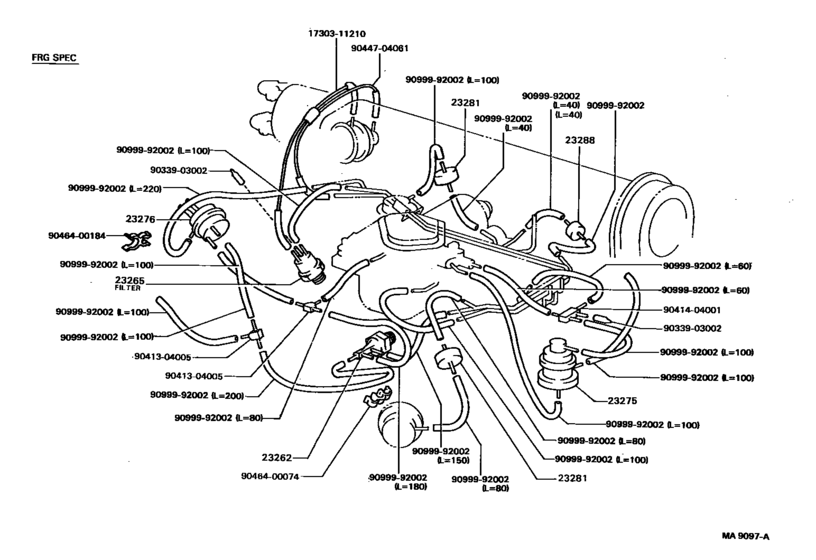

Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC) 24

#	OEM	Part name
23262	25820-11020	Valve, Bimetal Vacuum Switching, No.1
23262	90925-05035	Valve, Bimetal Vacuum Switching, No.1
23262	90925-05051	Valve, Bimetal Vacuum Switching, No.1
23262	90925-05076	Valve, Bimetal Vacuum Switching, No.1
23262	90925-05077	Valve, Bimetal Vacuum Switching, No.1
23265	90917-11024	Filter, Gas, No.1
23265	90917-11027	Filter, Gas, No.1
23275	90925-03155	Valve, Vacuum Control, No.1
23275	90925-03174	Valve, Vacuum Control, No.1
23275	90925-03175	Valve, Vacuum Control, No.1
23281	90925-01014	Valve, Vacuum Transmitting, No.1
23281	90925-01029	Valve, Vacuum Transmitting, No.1
23281	90925-01079	Valve, Vacuum Transmitting, No.1
23281	90925-01041	Valve, Bimetal Vacuum Switching, No.1
23288	90925-04017	Jet, No.1
23288	90925-04018	Jet, No.2
1730311210	17303-11210	Pipe Sub-Assy, Air, No.1
9033903002	90339-03002	PLUG
9041304005	90413-04005	Way, 3, No.1 (For Front Drive Shift)
9041404001	90414-04001	Joint, No.1 (For Idle Up Divice)
9044704061	90447-04061	Hose, Fuel, No.1(For Charcoal Canister)
9046400074	90464-00074	Joint, No.1 (For Idle Up Divice)
9046400184	90464-00184	Clamp, Vacuum Tube
9099992002	90999-92002	Air Hose (300 mm)

OEM	Part name	Category
17303-11210	Pipe Sub-Assy, Air, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
25820-11020	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90339-03002	PLUG	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90414-04001	Joint, No.1 (For Idle Up Divice)	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90447-04061	Hose, Fuel, No.1(For Charcoal Canister)	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90464-00074	Joint, No.1 (For Idle Up Divice)	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90464-00184	Clamp, Vacuum Tube	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90917-11024	Filter, Gas, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90917-11027	Filter, Gas, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-01014	Valve, Vacuum Transmitting, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-01029	Valve, Vacuum Transmitting, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-01041	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-01079	Valve, Vacuum Transmitting, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-03155	Valve, Vacuum Control, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-03174	Valve, Vacuum Control, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-03175	Valve, Vacuum Control, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-04017	Jet, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-04018	Jet, No.2	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-05035	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-05051	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-05076	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90925-05077	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
