Search › Model › EE80

EE80

Toyota COROLLA · 1984 · 4,367 parts · 194 categories

4,367 items

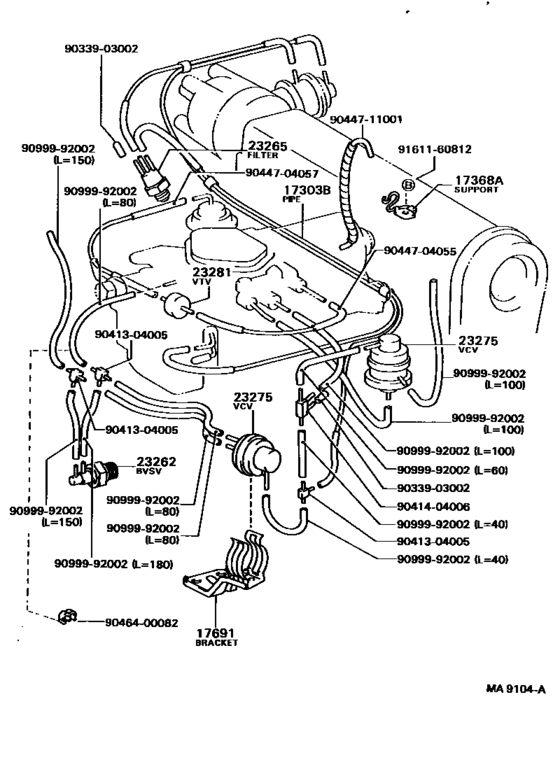

Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG) 22

#	OEM	Part name
17303	17303-11050	Pipe Sub-Assy, Air, No.1
17303	17303-11051	Pipe Sub-Assy, Air, No.1
17368	17368-11010	Support, Air Tube
17691	17691-11020	Bracket, Vacuum Control Valve, No.1
23262	90925-05035	Valve, Bimetal Vacuum Switching, No.1
23262	90925-05076	Valve, Bimetal Vacuum Switching, No.1
23265	90917-11024	Filter, Gas, No.1
23265	90917-11027	Filter, Gas, No.1
23275	90925-03155	Valve, Vacuum Control, No.1
23275	90925-03175	Valve, Vacuum Control, No.1
23281	90925-01014	Valve, Vacuum Transmitting, No.1
23281	90925-01041	Valve, Bimetal Vacuum Switching, No.1
9033903002	90339-03002	PLUG
9041304005	90413-04005	Way, 3, No.1 (For Front Drive Shift)
9041404006	90414-04006	New Genuine Part
9044704055	90447-04055	Hose, Cruise Control Vacuum
9044704057	90447-04057	New Genuine Part
9044711001	90447-11001	New Genuine Part
9046400082	90464-00082	Clamp(For Resistive Cord)
9099992002	90999-92002	Air Hose (300 mm)
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt

OEM	Part name	Category
17303-11050	Pipe Sub-Assy, Air, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
17303-11051	Pipe Sub-Assy, Air, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
17368-11010	Support, Air Tube	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
17691-11020	Bracket, Vacuum Control Valve, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90339-03002	PLUG	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90414-04006	New Genuine Part	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90447-04055	Hose, Cruise Control Vacuum	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90447-04057	New Genuine Part	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90447-11001	New Genuine Part	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90464-00082	Clamp(For Resistive Cord)	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90917-11024	Filter, Gas, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90917-11027	Filter, Gas, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90925-01014	Valve, Vacuum Transmitting, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90925-01041	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90925-03155	Valve, Vacuum Control, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90925-03175	Valve, Vacuum Control, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90925-05035	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90925-05076	Valve, Bimetal Vacuum Switching, No.1	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)
91611-B0812	Bolt	Vacuum Piping ([05.1986 - ] (8605- )2EL..MTM..EUG)

Source: Public OEM parts-catalog data
Variants: 2 / 188
Category: 194
Collected: 2026-08-02
