Search › Model › EE80

EE80

Toyota COROLLA · 1984 · 4,367 parts · 194 categories

4,367 items

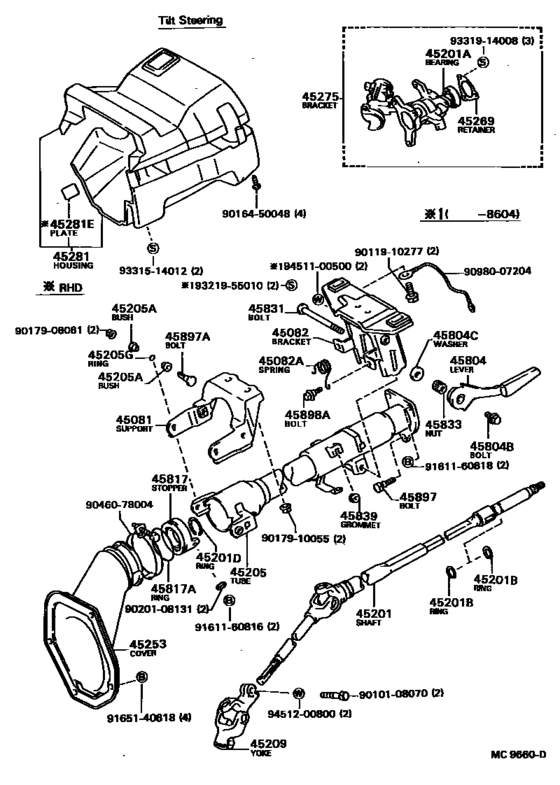

Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA) 55

#	OEM	Part name
45081	45081-12020	Support Sub-Assy, Tilt Steering
45082	45082-12021	Bracket Sub-Assy, Break Away W/capsule
45082	90508-29015	Spring, Torsion(For Tilt Steering Return)
45201	45210-12210	Shaft Sub-Assy, Steering Main
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17196	Ring, Shaft Snap(For Steering Main Shaft)
45201	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)
45205	45870-12190	Tube Sub-Assy, Steering Column
45205	45870-12210	Tube Sub-Assy, Steering Column
45205	90389-11005	Bush(For Steering Column Tube)
45205	90301-11005	Ring, O(For Steering Column Tube)
45209	45209-32010	Yoke Sub-Assy, Steering Sliding
45209	45209-10020	Yoke Sub-Assy, Steering Sliding
45253	45025-12130	Cover, Steering Column Hole
45269	45269-10010	Retainer, Main Shaft Bearing
45275	45280-12040	Bracket, Steering Column, Upper
45275	45280-12042	Bracket, Steering Column, Upper
45275	45280-12052	Bracket, Steering Column, Upper
45281	45286-12935-03	Housing, Steering Column
45281	45286-12935-06	Housing, Steering Column
45281	45286-12936-03	Housing, Steering Column
45281	45286-12936-01	Housing, Steering Column
45281	45286-12936-06	Housing, Steering Column
45804	45804-12010	Lever Sub-Assy, Steering Tilt
45804	90105-08060	Bolt(For Steering Tilt Lever)
45804	90201-08029	Washer, Plate(For Steering Tilt Lever)
45817	45808-20020	Stopper, Steering Shaft Thrust
45817	45808-20030	Stopper Sub-Assy, Steering Shaft Thrust
45817	90301-54002	Ring, O(For Input Front)
45831	45831-20010	Bolt, Tilt Lever Lock, No.1
45833	45833-20010	Nut, Tilt Steering Adjusting, No.1
45839	45839-20010	Grommet, Return Spring
45897	45897-12020	Bolt, Steering Lock Set
45897	45897-26010	Bolt, Tilt Steering Pawl Set
45898	45898-20020	Bolt, Return Spring Set
9010108070	90101-08070	Bolt, Hexagon
9010108070	90119-08560	Bolt, Hexagon
9011910277	90119-10277	New Genuine Part
9016450048	90164-50048	SCREW
9017908061	90179-08061	Nut (For Connecting Rod Swivel)
9017910055	90179-10055	NUT
9020108131	90201-08131	WASHER
9046078004	90460-78004	New Genuine Part
9098007204	90980-07204	Cable, Bond(For Horn Earth)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9165140618	91651-40618	New Genuine Part
9321955010	93219-55010	New Genuine Part
9331514012	93315-14012	Screw with washer
9331914008	93319-14008	SCREW
9451100500	94511-00500	Washer, Cover Set, No.2
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-12130	Cover, Steering Column Hole	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45081-12020	Support Sub-Assy, Tilt Steering	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45082-12021	Bracket Sub-Assy, Break Away W/capsule	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45209-10020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45209-32010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45210-12210	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45269-10010	Retainer, Main Shaft Bearing	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45280-12040	Bracket, Steering Column, Upper	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45280-12042	Bracket, Steering Column, Upper	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45280-12052	Bracket, Steering Column, Upper	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45286-12935-03	Housing, Steering Column	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45286-12935-06	Housing, Steering Column	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45286-12936-01	Housing, Steering Column	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45286-12936-03	Housing, Steering Column	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45286-12936-06	Housing, Steering Column	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45804-12010	Lever Sub-Assy, Steering Tilt	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45808-20020	Stopper, Steering Shaft Thrust	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45808-20030	Stopper Sub-Assy, Steering Shaft Thrust	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45831-20010	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45833-20010	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45839-20010	Grommet, Return Spring	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45870-12190	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45870-12210	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45897-26010	Bolt, Tilt Steering Pawl Set	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
45898-20020	Bolt, Return Spring Set	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90101-08070	Bolt, Hexagon	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90105-08060	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90119-08830	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90119-10277	New Genuine Part	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90164-50048	SCREW	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90179-08061	Nut (For Connecting Rod Swivel)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90179-10055	NUT	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90201-08029	Washer, Plate(For Steering Tilt Lever)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90201-08131	WASHER	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90301-11005	Ring, O(For Steering Column Tube)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90301-54002	Ring, O(For Input Front)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90389-11005	Bush(For Steering Column Tube)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90460-78004	New Genuine Part	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90508-29015	Spring, Torsion(For Tilt Steering Return)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90520-17196	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
90980-07204	Cable, Bond(For Horn Earth)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
91611-60818	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
91611-B0816	Bolt	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
91651-40618	New Genuine Part	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
93219-55010	New Genuine Part	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
93315-14012	Screw with washer	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
93319-14008	SCREW	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
94511-00500	Washer, Cover Set, No.2	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([05.1983 - ] (8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-86 05)GL,STD..SA ; (8411-8605)GT..SA ; (8605- )GL,GT ,SE..SA)

Source: Public OEM parts-catalog data
Variants: 2 / 188
Category: 194
Collected: 2026-08-02
