Search › Model › EE80
EE80

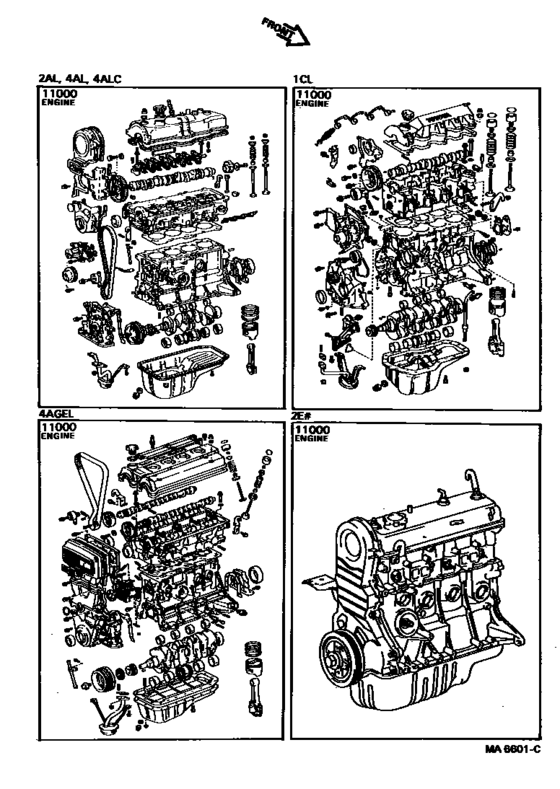

Partial Engine Assembly ([05.1983 - ] (8305- )) 10
| # | OEM | Part name |
|---|---|---|
| 11000 | 19000-11120 | Engine Assy, Partial |
| 11000 | 12511-11020 | Bracket, Alternator, No.1 |
| 11000 | 16381-11021 | Bar, Fan Belt Adjusting |
| 11000 | 16100-19195 | Pump Assy, Engine Water |
| 11000 | 19000-11121 | Engine Assy, Partial |
| 11000 | 44311-10011 | Pulley, Vane Pump |
| 11000 | 88431-12341 | Bracket, Compressor Mounting, No.1 |
| 11000 | 88444-10031 | Bracket, Idle Pulley |
| 11000 | 88451-12031 | Pulley, Vane Pump Drive - CRANKSHAFT, NO.2 |
| 11000 | 90105-08100 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 12511-11020 | Bracket, Alternator, No.1 | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 16100-19195 | Pump Assy, Engine Water | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 16381-11021 | Bar, Fan Belt Adjusting | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 19000-11120 | Engine Assy, Partial | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 19000-11121 | Engine Assy, Partial | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 44311-10011 | Pulley, Vane Pump | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 88431-12341 | Bracket, Compressor Mounting, No.1 | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 88444-10031 | Bracket, Idle Pulley | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 88451-12031 | Pulley, Vane Pump Drive - CRANKSHAFT, NO.2 | Partial Engine Assembly ([05.1983 - ] (8305- )) |
| 90105-08100 | BOLT | Partial Engine Assembly ([05.1983 - ] (8305- )) |
