EE80

Toyota COROLLA · 1984 · 4,367 parts · 194 categories

← Back to categories

4,367 items

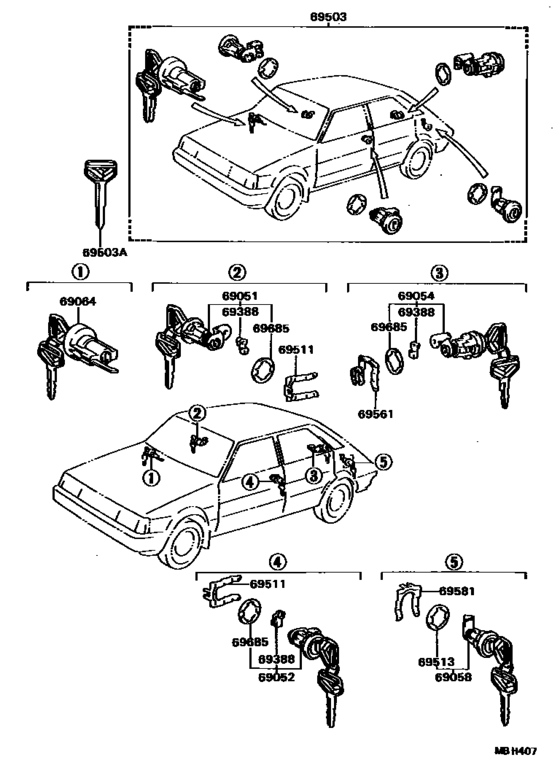

Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS) 17

#	OEM	Part name
69051	69051-12170	Cylinder & Key Set, Door Lock, Rh
69051	69051-60090	Cylinder & Key Set, Door Lock
69052	69052-12170	Cylinder & Key Set, Door Lock, Lh
69052	69052-60090	Cylinder & Key Set, Door Lock, Lh
69054	69055-12370	Cylinder & Key Set, Back Door Lock
69064	69057-12140	Cylinder & Key Set, Ignition Switch Lock
69064	69057-32090	Cylinder & Key Set, Ignition Switch Lock
69064	69057-16050	Cylinder & Key Set, Ignition Switch Lock
69388	69759-20080	Snap, Door Lock Control Link
69388	69759-20090	Snap(For Rear Door Lock)
69503	69005-12640	Cylinder Set, Lock
69503	69005-12641	Cylinder Set, Lock
69503	90999-00084	Key, Blank
69511	69511-32010	Retainer, Front Door Lock Cylinder
69561	69501-12010	Retainer, Luggage Compartment Or Back Door Lock Cylinder
69685	69513-32010	Pad, Lock Cylinder
69685	69563-32010	Pad, Luggage Compartment Door Lock Cylinder

OEM	Part name	Category
69005-12640	Cylinder Set, Lock	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69005-12641	Cylinder Set, Lock	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69051-12170	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69051-60090	Cylinder & Key Set, Door Lock	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69052-12170	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69052-60090	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69055-12370	Cylinder & Key Set, Back Door Lock	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69057-12140	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69057-16050	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69057-32090	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69501-12010	Retainer, Luggage Compartment Or Back Door Lock Cylinder	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69511-32010	Retainer, Front Door Lock Cylinder	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69513-32010	Pad, Lock Cylinder	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69563-32010	Pad, Luggage Compartment Door Lock Cylinder	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69759-20080	Snap, Door Lock Control Link	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
69759-20090	Snap(For Rear Door Lock)	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
90999-00084	Key, Blank	Lock Cylinder Set ([10.1984 - ] (8410- )3DS,5DS)
