Search › Model › EE80

EE80

Toyota COROLLA · 1984 · 4,367 parts · 194 categories

4,367 items

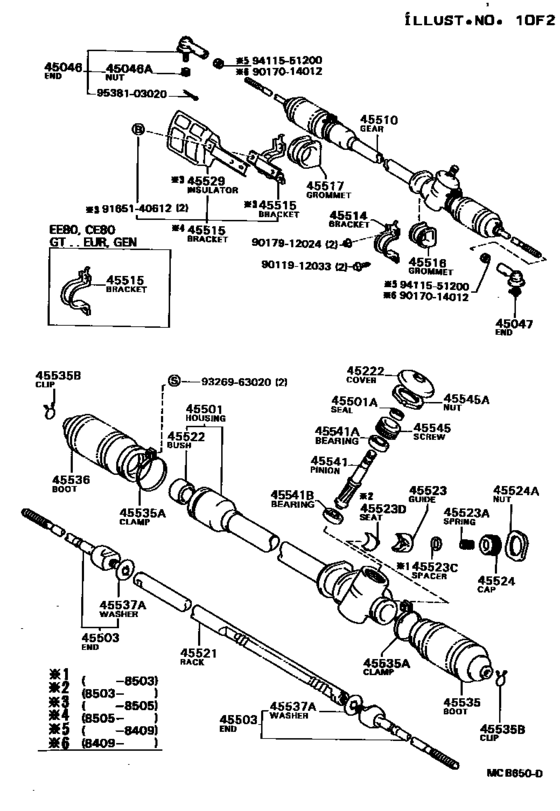

Front Steering Gear & Link ([05.1983 - ] (8305- )LHD) 42

#	OEM	Part name
45046	45046-19175	End Sub-Assy, Tie Rod
45046	90171-12028	Nut, Castle(For Pitman Arm)
45222	45222-10030	Cover, Steering Gear Dust
45501	45501-12100	Housing Sub-Assy, Steering Rack
45501	45501-12120	Housing Sub-Assy, Steering Rack
45501	90311-15001	Seal, Oil(For Steering Bevel Gear Housing)
45501	90311-15002	Seal, Oil(For Steering Bevel Gear Housing)
45503	45503-19036	End Sub-Assy, Steering Rack
45510	45510-12091	Gear Assy, Steering
45510	45510-12240	Gear Assy, Steering
45514	45514-12040	Bracket, Steering Rack Housing, No.1
45515	45515-12060	Bracket, Steering Rack Housing, No.2
45515	45515-12070	Bracket, Steering Rack Housing, No.2
45516	45516-20010	Grommet, Steering Rack Housing, No.1
45517	45517-12050	Grommet, Steering Rack Housing, No.2
45521	45521-12120	Rack, Steering
45522	45522-10021	Bush, Steering Rack
45523	45523-17012	Guide, Rack(For Steering Gear)
45523	45523-12040	Guide, Rack(For Steering Gear)
45523	90501-28007	Spring(For Steering Gear Rack Guide)
45523	44277-17010	Seat, Rack Guide
45524	45524-12020	Cap, Steering Rack Guide Spring
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-12011	Boot, Steering Rack, No.1
45535	90461-10273	Clamp(For Steering Rack Boot)
45535	90949-01082	Clamp(For Power Steering Rack Boot)
45535	90467-18003	Clip Or Clamp(For Ventilation Hose)
45536	45536-12030	Boot, Steering Rack, No.2
45537	90214-14002	Washer, Claw(For Power Steering Rack End)
45541	45541-12060	Pinion, Steering
45541	90363-15003	Bearing, Radial Ball(For Steering Rack Housing)
45541	90363-13001	Bearing, Radial Ball(For Steering Rack Housing)
45545	45545-10010	Screw, Pinion Bearing Adjusting
45545	90179-38001	Nut(For Pinion Bearing Adjusting Screw)
9011912033	90119-12033	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9017912024	90179-12024	NUT
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9326963020	93269-63020	Screw(For Steering Rack Boot Clamp)
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
44277-17010	Seat, Rack Guide	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45046-19175	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45222-10030	Cover, Steering Gear Dust	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45501-12100	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45501-12120	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45503-19036	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45510-12091	Gear Assy, Steering	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45510-12240	Gear Assy, Steering	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45514-12040	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45515-12060	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45515-12070	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45516-20010	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45517-12050	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45521-12120	Rack, Steering	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45522-10021	Bush, Steering Rack	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45523-12040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45523-17012	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45524-12020	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45535-12011	Boot, Steering Rack, No.1	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45536-12030	Boot, Steering Rack, No.2	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45541-12060	Pinion, Steering	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
45545-10010	Screw, Pinion Bearing Adjusting	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90080-11225	New Genuine Part	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90119-12033	New Genuine Part	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90179-12024	NUT	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90179-38001	Nut(For Pinion Bearing Adjusting Screw)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90311-15001	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90311-15002	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90363-13001	Bearing, Radial Ball(For Steering Rack Housing)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90363-15003	Bearing, Radial Ball(For Steering Rack Housing)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90461-10273	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90467-18003	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90501-28007	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
90949-01082	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
91651-40612	BOLT	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
93269-63020	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([05.1983 - ] (8305- )LHD)
