Search › Model › EE80

EE80

Toyota COROLLA · 1984 · 4,367 parts · 194 categories

4,367 items

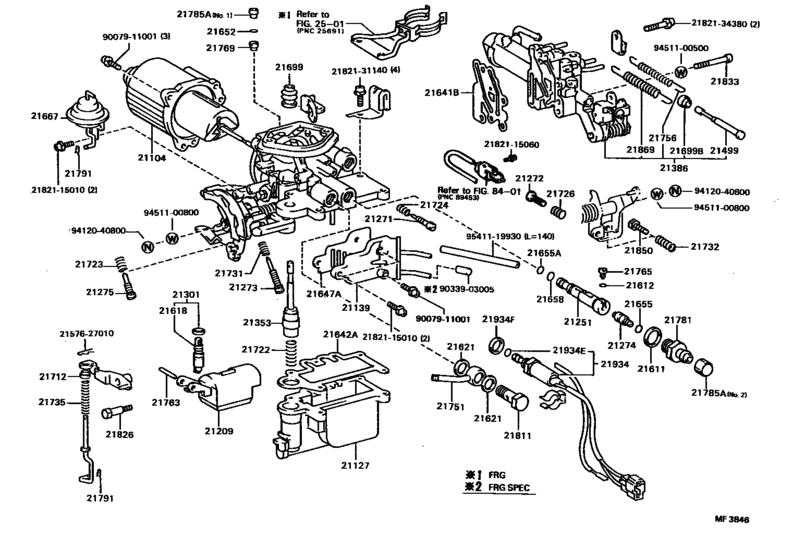

Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC) 89

#	OEM	Part name
21104	21014-11290	Chamber Sub-Assy, Suction
21104	21014-11410	Chamber Sub-Assy, Suction
21127	21127-11150	Bowl, Float
21127	21127-11270	Bowl, Float
21139	21139-11150	Adapter(For Carburetor Connecting Pipe)
21139	21139-11390	Adapter(For Carburetor Connecting Pipe)
21209	21209-11090	Float Sub-Assy
21251	21251-15461	Jet, 1St Main
21271	21271-11150	Screw, Idle Adjusting
21272	21276-11090	Screw, 1St Idle Adjusting
21273	21273-11090	Screw, Throttle Adjusting
21274	21275-15460	Screw, 1St Throttle Adjusting
21275	21273-60151	Screw, Throttle Adjusting
21275	21844-33010	Screw, 1St Idle Adjusting
21301	21301-11140	Valve Sub-Assy, Needle
21353	21353-11140	Plunger, Pump
21353	21353-11150	Plunger, Pump
21386	21386-11140	Compensator
21386	21386-11151	Compensator
21386	21386-11290	Compensator
21386	21386-11410	Compensator
21499	21499-11140	Rod, Push(For Carburetor)
21499	21499-11150	Rod, Push(For Carburetor)
21499	21499-11230	Rod, Push(For Carburetor)
21611	21611-15250	Gasket, Main Jet
21612	21612-15250	Gasket, Power Valve
21618	21618-14010	Gasket, Needle Valve Seat
21621	21633-24030	Gasket, Carburetor To Carburetor Hose Union Bolt
21641	21641-11090	Gasket, Compensator
21641	21641-11140	Gasket, Compensator
21642	21642-11090	Gasket, Float Bowl
21642	21642-11140	Gasket, Float Bowl
21647	21647-11090	Gasket, Adapter
21647	21647-11590	Gasket, Adapter
21652	21652-15250	Ring, O(For Suction Chanber Adjusting)
21655	21655-60010	Ring, O(For Lifter Rod)
21655	21655-15250	Ring, O(For Main Jet Adjusting Screw)
21658	21658-15250	Ring, O(For Main Guide Upper)
21667	21667-11090	Diaphragm
21699	21699-28150	Boot(For Pump Plunger)
21699	21699-11090	Boot(For Compensator)
21712	21712-38010	Bush, Sliding Rod
21712	21712-61020	Bush, Sliding Rod
21722	21722-22010	Spring, Pump Damping
21723	21723-11041	Spring, Idle Adjusting
21724	21723-38010	Spring, Idle Adjusting
21726	21723-60010	Spring, Idle Adjusting
21731	21723-21030	Spring, Idle Adjusting
21732	21726-15251	Spring, 1St Idle Adjusting
21735	21735-11090	Spring, Pump Arm
21735	21735-11150	Spring, Pump Arm
21735	21735-15250	Spring, Pump Arm
21735	21735-21032	Spring, Pump Arm
21751	21894-11150	Union, Nipple
21756	21756-15250	Spring, Back(For Throttle Shaft)
21756	21756-15251	Spring, Back(For Throttle Shaft)
21763	21763-38010	Pin, Float Lever
21765	21765-15250	Pin(For Pump Plunger)
21769	21769-15250	Pin(For Suction Chanber Adjusting)
21781	21781-15460	Plug, Main Passage(For Carburetor Jet)
21781	21672-15250	Plug, Plate(For Suction Chanber Adjusting)
21781	21781-15461	Plug, Main Passage(For Carburetor Jet)
21785	21785-11090	Plug, Plate(For Suction Chanber Adjusting)
21791	21791-60010	Ring, Snap, No.1(For Carburetor Link)
21791	21791-13010	Ring, Snap, No.1(For Carburetor Link)
21811	21811-11060	Bolt, Union Nipple
21826	21826-24470	Screw, Pump Arm Set
21833	21833-31012	Screw, Set, No.1(For Carburetor Body Set)
21850	21272-11090	Screw, Throttle Switch Adjusting
21850	21272-11230	Screw, Throttle Switch Adjusting
21869	21869-15250	Spring(For Main Jet)
21934	21062-11180	Solenoid, Throttle Valve
21934	21062-11183	Solenoid, Throttle Valve
21934	21062-11400	Solenoid, Throttle Valve
21934	21062-11410	Solenoid, Throttle Valve
21934	21656-15250	Ring, O(For Solenoid Valve)
21934	21633-15250	Gasket
2157627010	21576-27010	Clip, Pump Strainer
2182115010	21821-15010	Screw(For Choke Lever Adapter Set)
2182115060	21821-15060	Screw, 2Nd Throttle Valve Set
2182131140	21821-31140	Screw(For 2Nd Regulator Cover Set)
2182134380	21821-34380	Screw, 2nd Throttle Valve Set
9007911001	90079-11001	SCREW
9033903005	90339-03005	Plug, No.1
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451100500	94511-00500	Washer, Cover Set, No.2
9451100800	94511-00800	WASHERSPRING
9541119930	95411-19930	Hose(For Carburetor To Manifold)
9541119930	90999-92002	Air Hose (300 mm)

OEM	Part name	Category
21014-11290	Chamber Sub-Assy, Suction	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21014-11410	Chamber Sub-Assy, Suction	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21062-11180	Solenoid, Throttle Valve	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21062-11183	Solenoid, Throttle Valve	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21062-11400	Solenoid, Throttle Valve	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21062-11410	Solenoid, Throttle Valve	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21127-11150	Bowl, Float	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21127-11270	Bowl, Float	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21139-11150	Adapter(For Carburetor Connecting Pipe)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21139-11390	Adapter(For Carburetor Connecting Pipe)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21209-11090	Float Sub-Assy	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21251-15461	Jet, 1St Main	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21271-11150	Screw, Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21272-11090	Screw, Throttle Switch Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21272-11230	Screw, Throttle Switch Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21273-11090	Screw, Throttle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21273-60151	Screw, Throttle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21275-15460	Screw, 1St Throttle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21276-11090	Screw, 1St Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21301-11140	Valve Sub-Assy, Needle	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21353-11140	Plunger, Pump	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21353-11150	Plunger, Pump	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21386-11140	Compensator	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21386-11151	Compensator	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21386-11290	Compensator	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21386-11410	Compensator	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21499-11140	Rod, Push(For Carburetor)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21499-11150	Rod, Push(For Carburetor)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21499-11230	Rod, Push(For Carburetor)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21576-27010	Clip, Pump Strainer	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21611-15250	Gasket, Main Jet	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21612-15250	Gasket, Power Valve	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21618-14010	Gasket, Needle Valve Seat	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21633-15250	Gasket	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21633-24030	Gasket, Carburetor To Carburetor Hose Union Bolt	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21641-11090	Gasket, Compensator	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21641-11140	Gasket, Compensator	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21642-11090	Gasket, Float Bowl	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21642-11140	Gasket, Float Bowl	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21647-11090	Gasket, Adapter	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21647-11590	Gasket, Adapter	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21652-15250	Ring, O(For Suction Chanber Adjusting)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21655-15250	Ring, O(For Main Jet Adjusting Screw)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21655-60010	Ring, O(For Lifter Rod)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21656-15250	Ring, O(For Solenoid Valve)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21658-15250	Ring, O(For Main Guide Upper)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21667-11090	Diaphragm	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21672-15250	Plug, Plate(For Suction Chanber Adjusting)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21699-11090	Boot(For Compensator)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21699-28150	Boot(For Pump Plunger)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21712-38010	Bush, Sliding Rod	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21712-61020	Bush, Sliding Rod	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21722-22010	Spring, Pump Damping	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21723-11041	Spring, Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21723-21030	Spring, Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21723-38010	Spring, Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21723-60010	Spring, Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21726-15251	Spring, 1St Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21735-11090	Spring, Pump Arm	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21735-11150	Spring, Pump Arm	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21735-15250	Spring, Pump Arm	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21735-21032	Spring, Pump Arm	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21756-15250	Spring, Back(For Throttle Shaft)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21756-15251	Spring, Back(For Throttle Shaft)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21763-38010	Pin, Float Lever	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21765-15250	Pin(For Pump Plunger)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21769-15250	Pin(For Suction Chanber Adjusting)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21781-15460	Plug, Main Passage(For Carburetor Jet)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21781-15461	Plug, Main Passage(For Carburetor Jet)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21785-11090	Plug, Plate(For Suction Chanber Adjusting)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21791-13010	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21791-60010	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21811-11060	Bolt, Union Nipple	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21821-15010	Screw(For Choke Lever Adapter Set)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21821-15060	Screw, 2Nd Throttle Valve Set	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21821-31140	Screw(For 2Nd Regulator Cover Set)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21821-34380	Screw, 2nd Throttle Valve Set	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21826-24470	Screw, Pump Arm Set	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21833-31012	Screw, Set, No.1(For Carburetor Body Set)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21844-33010	Screw, 1St Idle Adjusting	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21869-15250	Spring(For Main Jet)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
21894-11150	Union, Nipple	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90079-11001	SCREW	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90339-03005	Plug, No.1	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
90999-92002	Air Hose (300 mm)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
94120-40800	Nut(For Clutch Pedal Stopper)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
94511-00500	Washer, Cover Set, No.2	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
94511-00800	WASHERSPRING	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)
95411-19930	Hose(For Carburetor To Manifold)	Carburetor ([05.1986 - ] (8605- )FRG SPEC (8605- )2ELC)

Source: Public OEM parts-catalog data
Variants: 2 / 188
Category: 194
Collected: 2026-08-02
