EE108

Toyota SPRINTER-CARIB-TRUENO · 1991 · 4,187 parts · 200 categories

4,187 items

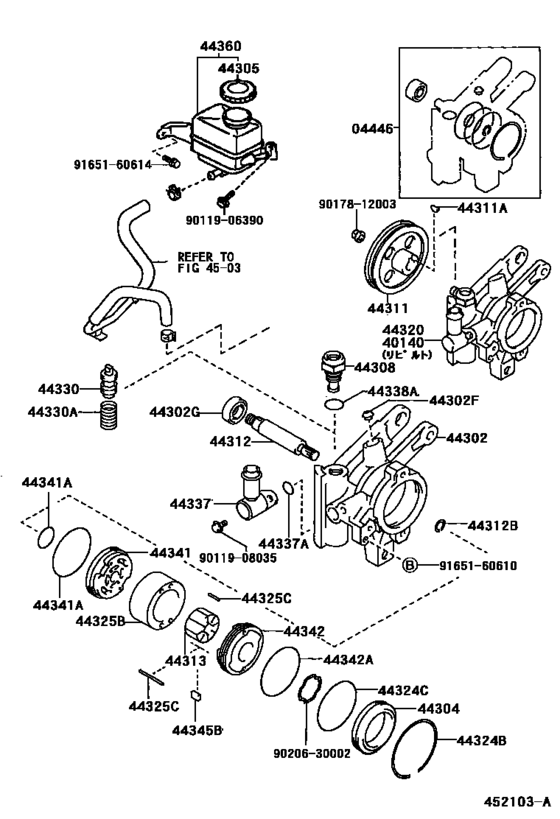

Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#) 60

#	OEM	Part name
4446	04446-20030	Gasket Kit, Power Steering Pump
4446	04446-20031	Gasket Kit, Power Steering Pump
40140	40140-12241	Pump Assy,vane Rebuilt
40140	44320-12212	Pump Assy, Vane
44302	44302-12110	Housing Sub-Assy, Vane Pump, Front
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44304	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44305	44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-12050	Union Sub-Assy, Pressure Port
44308	44308-12042	Union Sub-Assy, Pressure Port
44311	44311-12110	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-12241	Pump Assy, Vane
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-52001	Ring, O(For Pump Housing Rear)
44325	44325-12110	Ring, Fixed(For Vane Pump)
44325	44325-12120	Ring, Fixed(For Vane Pump)
44325	44325-12130	Ring, Fixed(For Vane Pump)
44325	44325-12140	Ring, Fixed(For Vane Pump)
44325	44325-12150	Ring, Fixed(For Vane Pump)
44325	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44325	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-12311	Valve Assy, Flow Control
44330	44330-12321	Valve Assy, Flow Control
44330	44330-12331	Valve Assy, Flow Control
44330	44330-12341	Valve Assy, Flow Control
44330	44330-12351	Valve Assy, Flow Control
44330	44330-12361	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44337	44337-12060	Union, Power Steering Suction Port
44337	90301-12003	Ring, O(For Power Steering Suction Port)
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	44342-32010	Plate, Vane Pump Side, Rear
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-12050	Reservoir Assy, Vane Pump Oil
9011906390	90119-06390	BOLT WWASHER
9011908035	90119-08035	New Genuine Part
9017812003	90178-12003	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER
9165160614	91651-60614	Bolt

OEM	Part name	Category
04446-20030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
04446-20031	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
40140-12241	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44302-12110	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44308-12042	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44308-12050	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44311-12110	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44320-12212	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44320-12241	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44330-12311	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44330-12321	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44330-12331	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44330-12341	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44330-12351	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44330-12361	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44337-12060	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
44360-12050	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90119-06390	BOLT WWASHER	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
91651-60610	BOLT	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
91651-60614	Bolt	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
91651-B0610	BOLTWWASHER	Vane Pump & Reservoir (Power Steering) ([06.1991 - ] (9106- )EE10#)
