EE108

Toyota SPRINTER-CARIB-TRUENO · 1991 · 4,187 parts · 200 categories
EE108 ×

← Back to categories

4,187 items

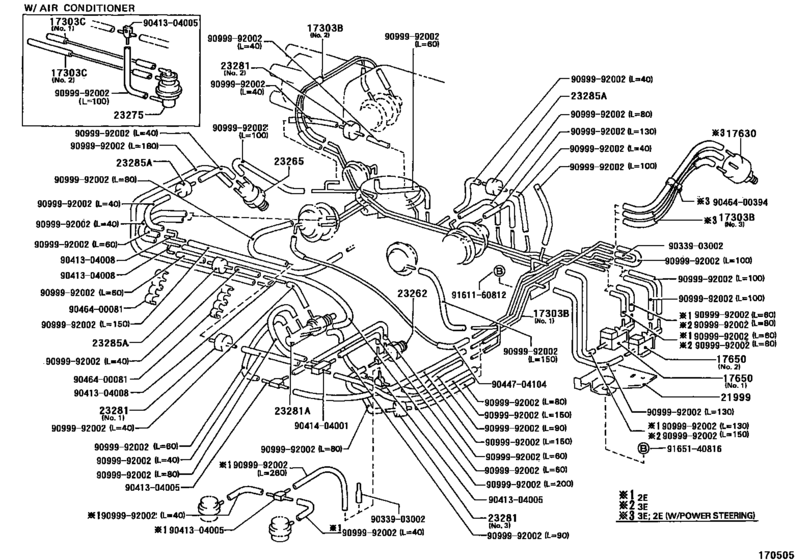

Vacuum Piping ([09.1991 - 01.1994] (9109-9401)2E,3E..3FC) 29
#OEMPart name
17303 17303-11310 Pipe Sub-Assy, Air, No.1
17303 17303-11350 Pipe Sub-Assy, Air, No.1
17303 17303-11510 Pipe Sub-Assy, Air, No.1
17303 17303-11680 Pipe Sub-Assy, Air, No.2
17303 17303-11770 Pipe Sub-Assy, Air, No.2
17630 17630-28020 Valve Assy, Air Control
17650 90910-12047 Valve Assy, Vacuum Switching
17650 90910-12109 Valve Assy, Vacuum Switching
17650 90910-12271 Valve Assy, Vacuum Switching
21999 21999-11120 Bracket, Vacuum Switching Valve
23262 25820-11040 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11027 Filter, Gas, No.1
23275 90925-03173 Valve, Vacuum Control, No.1
23281 90925-01091 Valve, Vacuum Transmitting, No.1
23281 90925-01100 Valve, Vacuum Transmitting, No.1
23281 90925-01101 Valve, Vacuum Transmitting, No.1
23281 90925-02088 Valve, Vacuum Transmitting, No.2
23285 90917-10049 Valve, Check, No.1
9033903002 90339-03002 PLUG
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041304008 90413-04008 Way, 3(For Transfer Breather Hose)
9041404001 90414-04001 Joint, No.1 (For Idle Up Divice)
9044704104 90447-04104 New Genuine Part
9046400081 90464-00081 Clamp (For Idle Up Divice), No.1
9046400394 90464-00394 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9165140816 91651-40816 BOLT
