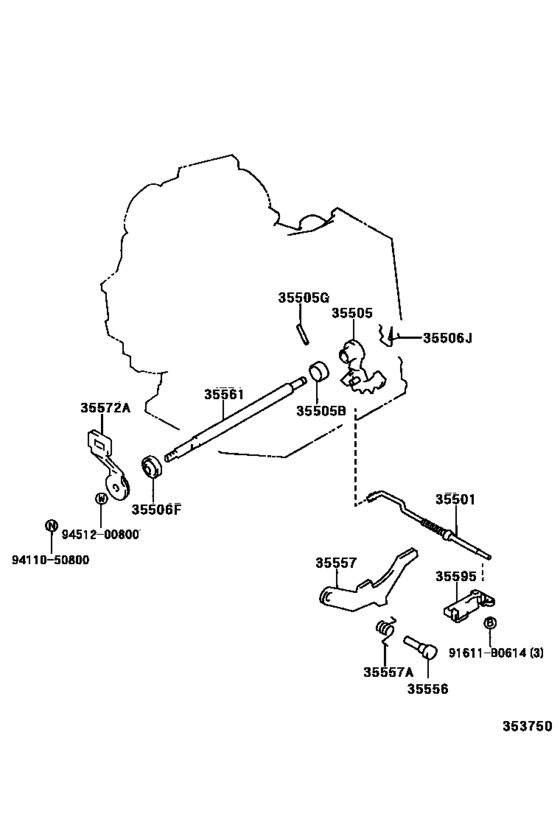

| 35501-32030 |
Rod Sub-Assy, Parking Lock |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 35505-32040 |
Lever Sub-Assy, Manual Valve |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 35556-32010 |
Shaft, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 35557-32020 |
Pawl, Parking Lock |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 35561-32010 |
Shaft Sub-Assy, Manual Valve Lever |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 35572-12110 |
Lever, Transmission Control Shaft |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 35595-32010 |
Bracket, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 90254-04011 |
Pin, Slotted Spring (For Transfer Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 90311-12002 |
Oil Seal, Type T |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 90508-26047 |
Spring, Torsion (For Parking Lock Pawl) |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 90524-09001 |
Spring, Retainer (For Manual Valve Lever Shaft) |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 90560-20006 |
Spacer (For Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 91611-B0614 |
Bolt (For Rear Differential Breather Plug Oil Deflector) |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 94110-50800 |
Nut(For Repair Actuator Set) |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
| 94512-00800 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) |
