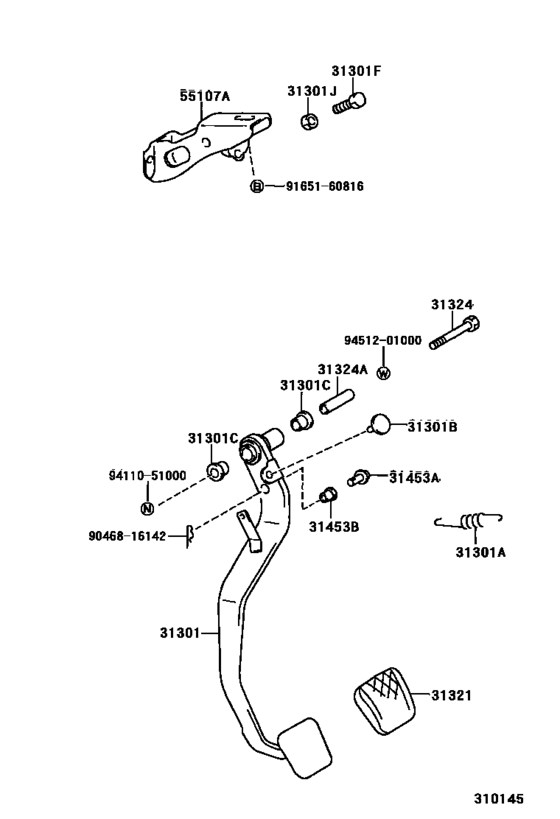

| 31301-12370 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 31301-12371 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 31321-12040 |
Pad, Clutch Pedal |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 47148-12010 |
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 55107-12170 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90080-11396 |
Bolt |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90101-10015 |
Shaft, Clutch Pedal |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90101-10369 |
Bolt(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90170-A0002 |
Nut |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90386-08002 |
Bush(For Clutch Pedal Over Center Spring Pin) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90387-10003 |
Collar, Clutch Pedal Shaft |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90468-16142 |
Clip(For Push Rod Clevis Pin) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90506-14052 |
Spring(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 91651-60816 |
BOLT |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 94110-51000 |
Nut(For Steering Center Arm) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 94120-41000 |
Nut(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
| 94512-01000 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Clutch Pedal & Flexible Hose ([06.1991 - ] (9106- )MTM..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ; (9305- )5F..GT) |
