Search › Model › EE108

EE108

Toyota SPRINTER-CARIB-TRUENO · 1991 · 4,187 parts · 200 categories

4,187 items

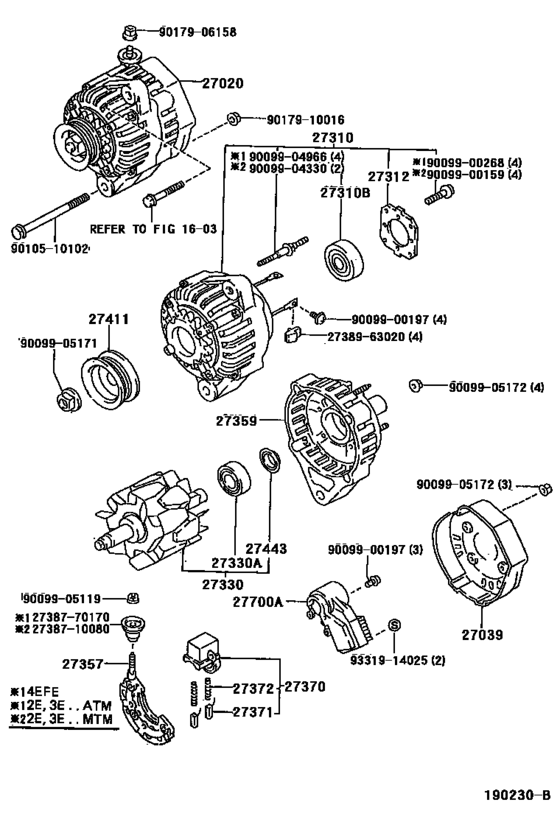

Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E) 59

#	OEM	Part name
27020	27060-10100	Alternator Assy
27020	27060-11260	Alternator Assy
27020	27060-11120	Alternator Assy
27020	27060-11200	Alternator Assy
27020	27060-11270	Alternator Assy
27039	27039-11190	Cover, Alternator Rear End
27039	27039-72150	Cover, Alternator Rear End
27039	27039-15170	Cover, Alternator Rear End
27039	27039-15171	Cover, Alternator Rear End
27039	27039-73020	Cover, Alternator Rear End
27039	27039-16380	Cover, Alternator Rear End
27310	27310-10090	Frame Assy, Drive End, Alternator
27310	90099-10198	Bearing(For Alternator Drive End Frame)
27310	90099-10229	Bearing(For Alternator Drive End Frame)
27310	27310-16103	Frame Assy, Drive End, Alternator
27310	90099-10178	Bearing(For Alternator Drive End Frame)
27312	27312-72120	Plate, Bearing Retainer, Alternator
27312	27312-70200	Plate, Bearing Retainer, Alternator
27330	27330-72150	Rotor Assy, Alternator
27330	90099-10154	Bearing(For Alternator Rotor)
27330	27330-72101	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27357	27357-72150	Holder, Alternator, W/rectifier
27357	27357-63020	Holder, Alternator, W/rectifier
27359	27359-72150	Frame, Alternator Rectifier End
27359	27359-16180	Frame, Alternator Rectifier End
27359	27359-16181	Frame, Alternator Rectifier End
27359	27384-16380	Washer
27370	27370-54450	Holder Assy, Alternator Brush
27370	27370-58320	Holder Assy, Alternator Brush
27371	27371-70300	Brush, Alternator
27372	27372-63020	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27411	27411-10051	Pulley, Alternator
27411	27411-65010	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-10080	Regulator Assy, Generator
27700	27700-66010	Regulator Assy, Generator
27700	27700-11020	Regulator Assy, Generator
27700	27700-11060	Regulator Assy, Generator
27700	27700-11030	Regulator Assy, Generator
27700	27700-72090	Regulator Assy, Generator
27700	27700-11070	Regulator Assy, Generator
2738710080	27387-10080	Insulator, Terminal
2738770170	27387-70170	Insulator, Terminal
2738963020	27389-63020	Insulator, Terminal
9009900159	90099-00159	New Genuine Part
9009900197	90099-00197	Screw
9009900268	90099-00268	Screw(For Alternator Drive End Frame)
9009904330	90099-04330	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9010510102	90105-10102	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9331914025	93319-14025	Screw W Washer

OEM	Part name	Category
27039-11190	Cover, Alternator Rear End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27039-15170	Cover, Alternator Rear End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27039-15171	Cover, Alternator Rear End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27039-16380	Cover, Alternator Rear End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27039-72150	Cover, Alternator Rear End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27039-73020	Cover, Alternator Rear End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27060-10100	Alternator Assy	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27060-11120	Alternator Assy	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27060-11200	Alternator Assy	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27060-11260	Alternator Assy	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27060-11270	Alternator Assy	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27310-10090	Frame Assy, Drive End, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27310-16103	Frame Assy, Drive End, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27312-70200	Plate, Bearing Retainer, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27312-72120	Plate, Bearing Retainer, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27330-72101	Rotor Assy, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27330-72150	Rotor Assy, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27357-63020	Holder, Alternator, W/rectifier	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27357-72150	Holder, Alternator, W/rectifier	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27359-16180	Frame, Alternator Rectifier End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27359-16181	Frame, Alternator Rectifier End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27359-72150	Frame, Alternator Rectifier End	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27370-54450	Holder Assy, Alternator Brush	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27370-58320	Holder Assy, Alternator Brush	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27371-70300	Brush, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27372-63020	Spring, Alternator Brush	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27372-87501	Spring, Alternator Brush	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27384-16380	Washer	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27387-10080	Insulator, Terminal	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27387-70170	Insulator, Terminal	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27389-63020	Insulator, Terminal	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27411-10051	Pulley, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27411-65010	Pulley, Alternator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27443-63020	Cover, Alternator Bearing	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27700-10080	Regulator Assy, Generator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27700-11020	Regulator Assy, Generator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27700-11030	Regulator Assy, Generator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27700-11060	Regulator Assy, Generator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27700-11070	Regulator Assy, Generator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27700-66010	Regulator Assy, Generator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
27700-72090	Regulator Assy, Generator	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-00159	New Genuine Part	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-00197	Screw	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-00268	Screw(For Alternator Drive End Frame)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-04330	New Genuine Part	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-05119	New Genuine Part	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-05171	Nut(For Alternator Pulley)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-05172	New Genuine Part	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-10154	Bearing(For Alternator Rotor)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-10178	Bearing(For Alternator Drive End Frame)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-10198	Bearing(For Alternator Drive End Frame)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90099-10229	Bearing(For Alternator Drive End Frame)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90105-10102	BOLT	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
90179-10132	Nut	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
93319-14025	Screw W Washer	Alternator ([09.1991 - ] 12V 50A,70A (9106- )4EFE..EE101..4F ; (9109- )2E,3E)
