Search › Model › EE104

EE104

Toyota COROLLA · 1994 · 4,723 parts · 239 categories
EE104 ×

← Back to categories

4,723 items

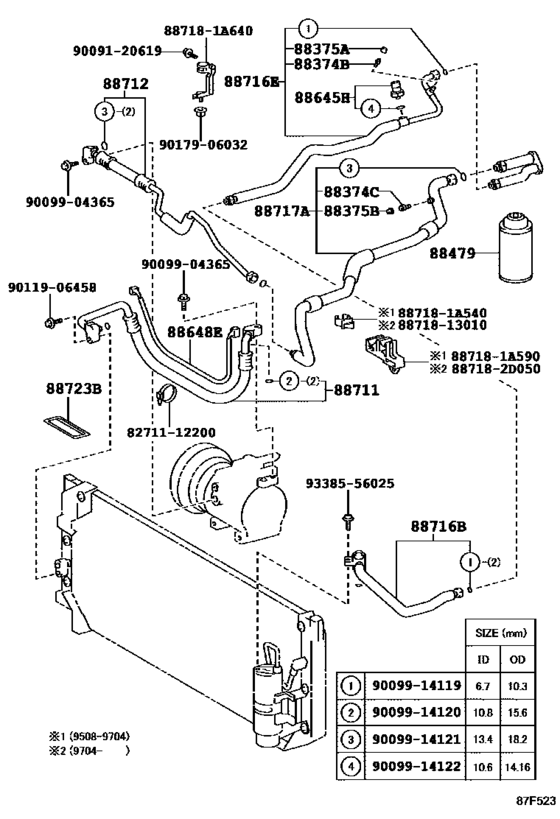

Heating & Air Conditioning - Cooler Piping ([08.1995 - ] DEALER OPTION (9508- )EE10#) 39
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88479 90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88645 88645-20050 Switch, Pressure
88648 88648-12490 Wiring, Cooler
88648 88648-12550 Wiring, Cooler
88711 88711-1A110 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-1A180 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-1A140 Hose, Cooler Refrigerant Suction, No.1
88712 88712-1A440 Hose, Cooler Refrigerant Suction, No.1
88712 88712-1A520 Hose, Cooler Refrigerant Suction, No.1
88716 88716-1A240 Pipe, Cooler Refrigerant Liquid, B
88716 88716-12890 Pipe, Cooler Refrigerant Liquid, E
88716 88716-1A250 Pipe, Cooler Refrigerant Liquid, E
88716 88716-1A330 Pipe, Cooler Refrigerant Liquid, E
88716 88716-1A530 Pipe, Cooler Refrigerant Liquid, E
88717 88717-12760 Pipe, Cooler Refrigerant Suction, A
88717 88717-13020 Pipe, Cooler Refrigerant Suction, No.1
88717 88717-1A020 Pipe, Cooler Refrigerant Suction, A
88723 88723-12110 Label, Cooler Service Caution
88723 88723-12120 Label, Cooler Service Caution
887181 88718-1A540 Clamp(For Cooler Refrigerant Hose), No.1
887181 88718-1A590 Pipe, Cooler Refrigerant Suction, No.2
887181 88718-1A640 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2D050 Pipe, Cooler Refrigerant Suction, No.2
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8871813010 88718-13010 Pipe, Cooler Refrigerant Suction, No.2
9009120619 90091-20619 BOLT
9009904365 90099-04365 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9011906458 90119-06458 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9338556025 93385-56025 New Genuine Part
