EE102

Toyota COROLLA · 1994 · 3,322 parts · 184 categories

← Back to categories

3,322 items

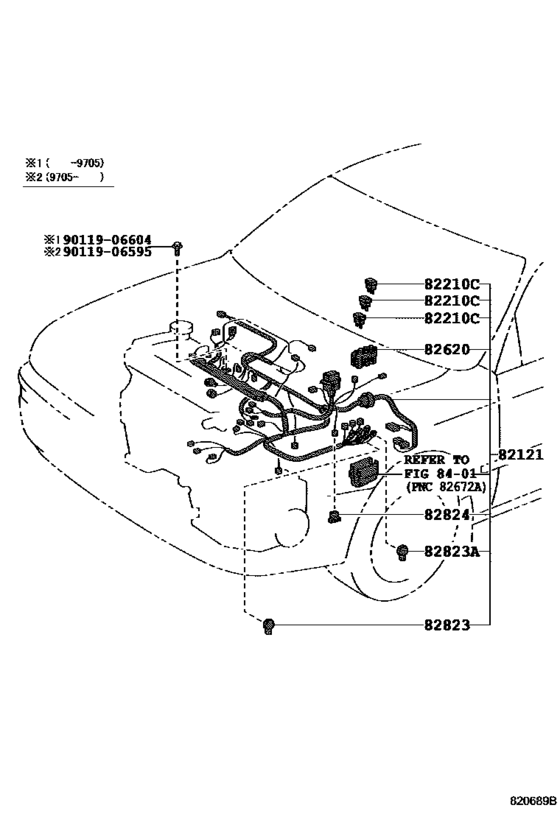

Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104) 11

#	OEM	Part name
82121	82121-13721	Wire, Engine
82210	90982-08188	Fusible Link
82210	90982-08228	Fusible Link
82210	90982-08246	Fusible Link
82210	90982-08257	Fusible Link
82620	82620-12080	Block Assy, Fusible Link
82823	82823-12090	Cap, Terminal, No.1
82823	82823-22060	Cap, Terminal, No.1
82824	82824-20050	Connector, Wiring Harness
9011906595	90119-06595	BOLT WWASHER
9011906604	90119-06604	New Genuine Part

OEM	Part name	Category
82121-13721	Wire, Engine	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
82620-12080	Block Assy, Fusible Link	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
82823-12090	Cap, Terminal, No.1	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
82823-22060	Cap, Terminal, No.1	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
82824-20050	Connector, Wiring Harness	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
90119-06595	BOLT WWASHER	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
90119-06604	New Genuine Part	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
90982-08188	Fusible Link	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
90982-08228	Fusible Link	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
90982-08246	Fusible Link	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
90982-08257	Fusible Link	Wiring & Clamp ([06.1991 - ] ｴﾝｼﾞﾝ (9106- )EE101,102,103,104)
