Search › Model › EE102

EE102

Toyota COROLLA · 1994 · 3,322 parts · 184 categories

3,322 items

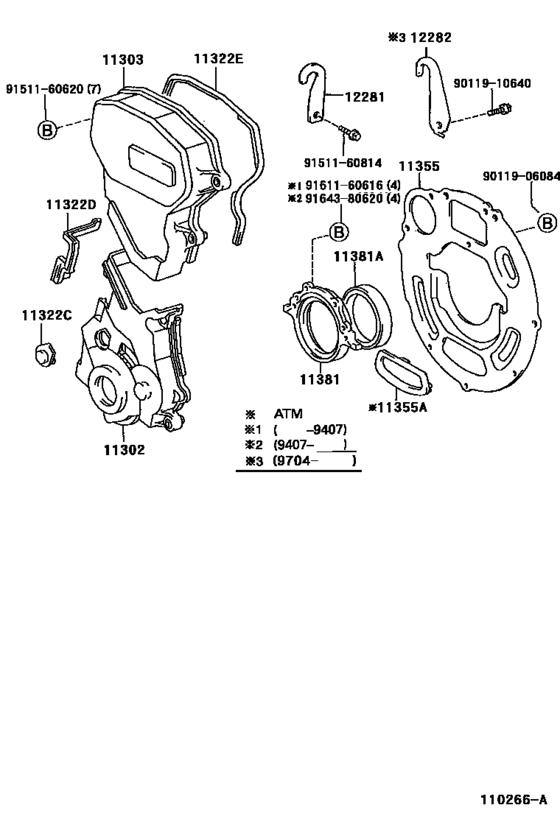

Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE) 20

#	OEM	Part name
11302	11302-11110	Cover Sub-Assy, Timing Chain Or Belt
11303	11303-11031	Cover Sub-Assy, Crankshaft Gear Or Pulley
11322	11323-10011	Cover, Timing Belt, No.3
11322	11328-11041	Gasket, Timing Belt Cover, No.1
11322	11329-11010	Gasket, Timing Belt Cover, No.2
11355	11355-10012	Plate, Rear End
11381	11381-10021	Retainer, Engine Rear Oil Seal
11381	90311-75009	Seal, Engine Rear Oil
12281	12281-11031	Hanger, Engine, No.1
12282	12282-11022	Hanger, Engine, No.2
9011906084	90119-06084	Bolt(For Rear Wheel Cylinder)
9011910640	90119-10640	New Genuine Part
9151160620	91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)
9151160620	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9151160814	91511-60814	New Genuine Part
9151160814	91511-B0814	BOLT
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9164380620	91643-80620	New Genuine Part
9164380620	91641-80616	BOLT W-WASHER

OEM	Part name	Category
11302-11110	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
11303-11031	Cover Sub-Assy, Crankshaft Gear Or Pulley	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
11323-10011	Cover, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
11328-11041	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
11329-11010	Gasket, Timing Belt Cover, No.2	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
11355-10012	Plate, Rear End	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
11381-10021	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
12281-11031	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
12282-11022	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
90119-06084	Bolt(For Rear Wheel Cylinder)	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
90119-10640	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
90311-75009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91511-60814	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91511-B0814	BOLT	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91611-60616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91611-B0616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91641-80616	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
91643-80620	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1991 - ] (9106- )4EFE,5EFE)
