EE102

Toyota COROLLA · 1994 · 3,322 parts · 184 categories

3,322 items

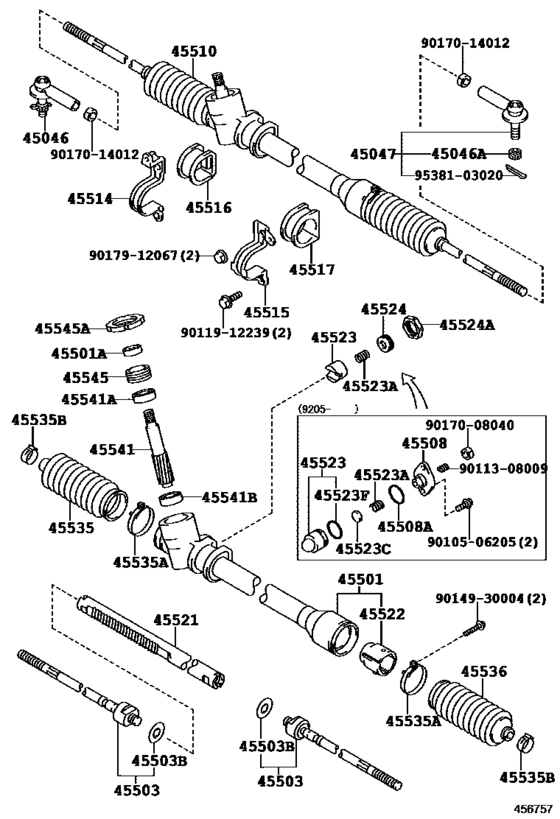

Front Steering Gear & Link ([05.1997 - ] (9705- )EE102) 47

#	OEM	Part name
45046	45046-29305	End Sub-Assy, Tie Rod
45046	90171-12028	Nut, Castle(For Pitman Arm)
45501	45501-12160	Housing Sub-Assy, Steering Rack
45501	90311-15002	Seal, Oil(For Steering Bevel Gear Housing)
45503	45503-19205	End Sub-Assy, Steering Rack
45503	45503-19215	End Sub-Assy, Steering Rack
45503	90214-14009	Washer, Claw(For Steering Rack End)
45508	45546-12010	Cover Sub-Assy, Steering Rack Guide Spring
45508	90301-33013	Ring, O(For Steering Rack Guide Spring Cover)
45510	45510-12260	Gear Assy, Steering
45514	45514-12090	Bracket, Steering Rack Housing, No.1
45514	45514-12110	Bracket, Steering Rack Housing, No.1
45515	45515-12170	Bracket, Steering Rack Housing, No.2
45516	45516-12060	Grommet, Steering Rack Housing, No.1
45517	45517-12111	Grommet, Steering Rack Housing, No.2
45521	45521-20040	Rack, Steering
45522	45522-12060	Bush, Steering Rack
45523	45053-12010	Guide, Rack(For Steering Gear)
45523	45504-12040	Guide, Rack(For Steering Gear)
45523	90501-32032	Spring(For Steering Gear Rack Guide)
45523	90501-35040	Spring(For Steering Gear Rack Guide)
45523	90501-40040	Spring(For Steering Gear Rack Guide)
45523	45542-12010	Spacer(For Rack Guide)
45524	45524-42010	Cap, Steering Rack Guide Spring
45524	90179-33003	Nut(For Power Steering Rack Guide Cap)
45535	45535-12060	Boot, Steering Rack, No.1
45535	45535-12100	Boot, Steering Rack, No.1
45535	90460-50003	Clamp(For Steering Rack Boot)
45535	90460-52001	Clamp(For Power Steering Rack Boot)
45535	90080-46174	Clip(For Steering Rack Boot)
45535	90467-19012	Clip
45535	90467-19019	Clip
45535	90467-19017	Clip(For Steering Rack Boot)
45535	90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)
45541	45541-12080	Pinion, Steering
45541	90363-15015	Bearing, Radial Ball(For Steering Pinion Upper)
45541	90363-13004	Bearing, Radial Ball(For Steering Pinion Upper)
45545	45545-10010	Screw, Pinion Bearing Adjusting
45545	90179-38001	Nut(For Pinion Bearing Adjusting Screw)
9010506205	90105-06205	New Genuine Part
9011308009	90113-08009	New Genuine Part
9011912239	90119-12239	New Genuine Part
9014930004	90149-30004	Screw(For Steering Rack Boot Clamp)
9017008040	90170-08040	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9017912067	90179-12067	New Genuine Part
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
45046-29305	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45053-12010	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45501-12160	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45503-19205	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45503-19215	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45504-12040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45510-12260	Gear Assy, Steering	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45514-12090	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45514-12110	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45515-12170	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45516-12060	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45517-12111	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45521-20040	Rack, Steering	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45522-12060	Bush, Steering Rack	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45524-42010	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45535-12060	Boot, Steering Rack, No.1	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45535-12100	Boot, Steering Rack, No.1	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45541-12080	Pinion, Steering	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45542-12010	Spacer(For Rack Guide)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45545-10010	Screw, Pinion Bearing Adjusting	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
45546-12010	Cover Sub-Assy, Steering Rack Guide Spring	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90080-46174	Clip(For Steering Rack Boot)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90105-06205	New Genuine Part	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90113-08009	New Genuine Part	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90119-12239	New Genuine Part	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90149-30004	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90170-08040	New Genuine Part	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90179-12067	New Genuine Part	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90179-33003	Nut(For Power Steering Rack Guide Cap)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90179-38001	Nut(For Pinion Bearing Adjusting Screw)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90214-14009	Washer, Claw(For Steering Rack End)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90301-33013	Ring, O(For Steering Rack Guide Spring Cover)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90311-15002	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90363-13004	Bearing, Radial Ball(For Steering Pinion Upper)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90363-15015	Bearing, Radial Ball(For Steering Pinion Upper)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90460-50003	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90460-52001	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90467-19012	Clip	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90467-19017	Clip(For Steering Rack Boot)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90467-19019	Clip	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90501-32032	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90501-35040	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
90501-40040	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([05.1997 - ] (9705- )EE102)
