Search › Model › EE101

EE101

Toyota COROLLA · 1991 · 6,010 parts · 266 categories

6,010 items

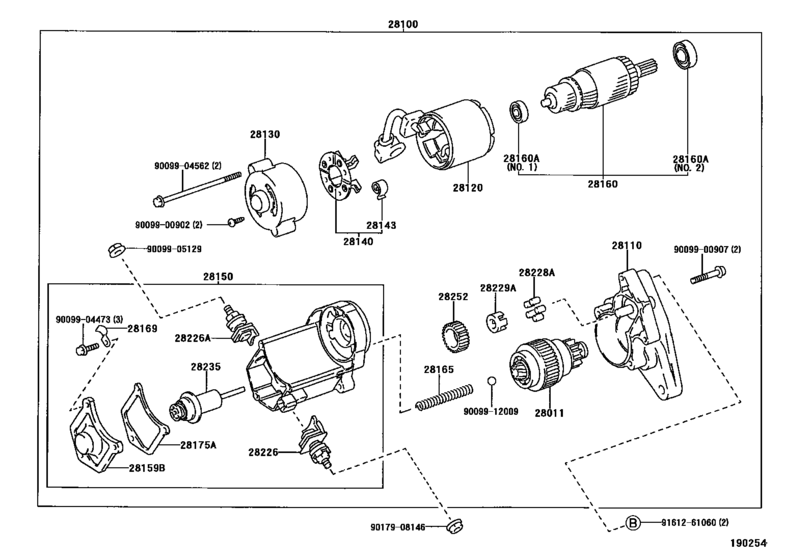

Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE) 44

#	OEM	Part name
28011	28011-26042	Clutch Sub-Assy, Starter
28011	28011-70020	Clutch Sub-Assy, Starter
28100	28100-11080	Starter Assy
28100	28100-11160	Starter Assy
28100	28100-11100	Starter Assy
28100	28100-10040	Starter Assy
28100	28100-11010	Starter Assy
28110	28110-10040	Housing Assy, Starter Drive
28110	28110-11010	Housing Assy, Starter Drive
28120	28120-26071	Yoke Assy, Starter
28120	28120-70020	Yoke Assy, Starter
28130	28130-10040	Frame Assy, Starter Commutator End
28130	28130-11010	Frame Assy, Starter Commutator End
28140	28140-26070	Holder Assy, Starter Brush
28140	28140-70020	Holder Assy, Starter Brush
28143	28143-70020	Spring, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-11080	Switch Assy, Magnet Starter
28150	28150-11100	Switch Assy, Magnet Starter
28150	28150-10021	Switch Assy, Magnet Starter
28150	28150-34080	Switch Assy, Magnet Starter
28159	28159-10040	Cover, Magnet Switch
28160	28160-26071	Armature Assy, Starter
28160	28160-70021	Armature Assy, Starter
28160	28253-45020	Bearing, Starter Armature
28160	90099-10113	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28169	28169-10040	Clamp, Starter Motor Lead Wire
28175	28175-10040	Gasket, Magnet Switch Cover
28226	28226-72080	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28235	28235-35080	Plunger, Magnet Switch
28252	28254-45020	Pinion, Starter Drive
9009900902	90099-00902	Screw, W/washer(For Bearing Cover Setting)
9009900907	90099-00907	New Genuine Part
9009904473	90099-04473	New Genuine Part
9009904562	90099-04562	BOLT
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161261060	91612-61060	Bolt(for Clutch Release Cylinder Setting)

OEM	Part name	Category
28011-26042	Clutch Sub-Assy, Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28011-70020	Clutch Sub-Assy, Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28100-10040	Starter Assy	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28100-11010	Starter Assy	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28100-11080	Starter Assy	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28100-11100	Starter Assy	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28100-11160	Starter Assy	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28110-10040	Housing Assy, Starter Drive	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28110-11010	Housing Assy, Starter Drive	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28120-26071	Yoke Assy, Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28120-70020	Yoke Assy, Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28130-10040	Frame Assy, Starter Commutator End	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28130-11010	Frame Assy, Starter Commutator End	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28140-26070	Holder Assy, Starter Brush	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28140-70020	Holder Assy, Starter Brush	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28143-70020	Spring, Starter Brush	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28150-10021	Switch Assy, Magnet Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28150-11080	Switch Assy, Magnet Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28150-11100	Switch Assy, Magnet Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28150-34080	Switch Assy, Magnet Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28159-10040	Cover, Magnet Switch	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28160-26071	Armature Assy, Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28160-70021	Armature Assy, Starter	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28169-10040	Clamp, Starter Motor Lead Wire	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28175-10040	Gasket, Magnet Switch Cover	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28226-72010	Starter Kit, Motor Terminal	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28226-72080	Starter Kit, Battery Terminal	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28229-26040	Retainer, Starter Idle Gear	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28235-35080	Plunger, Magnet Switch	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28253-45020	Bearing, Starter Armature	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
28254-45020	Pinion, Starter Drive	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-00902	Screw, W/washer(For Bearing Cover Setting)	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-00907	New Genuine Part	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-04473	New Genuine Part	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-04562	BOLT	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-10113	Bearing, Starter Armature	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-12009	Ball, Starter Clutch	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90099-17112	Spring, Starter Brush	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90179-08146	Nut	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
90179-08204	Nut	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([05.1992 - ] 12V 1.0KW (9205- )2E,4EFE)
