Search › Model › EE101

EE101

Toyota COROLLA · 1991 · 6,010 parts · 266 categories

← Back to categories

6,010 items

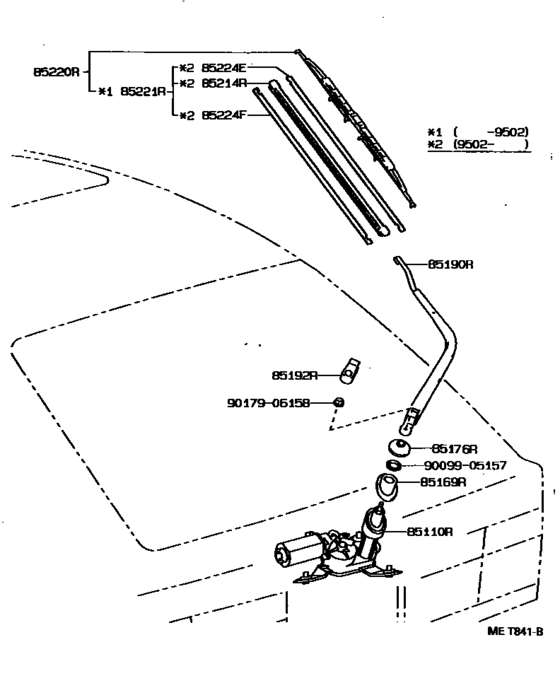

Rear Wiper ([05.1992 - ] (9205- )HB) 12

#	OEM	Part name
85110	85130-12810	Motor Assy, Rear Wiper
85169	85134-12780	Washer, Rear Wiper Link Pivot, No.1
85176	85176-13070	Cap, Rear Wiper Link
85190	85241-12021	Arm Assy, Rear Wiper
85190	85241-12031	Arm Assy, Rear Wiper
85192	85244-12010	Cover, Rear Wiper Arm
85214	85214-22360	Rubber, Rear Wiper
85214	85214-20330	Rubber, Wiper, Rh
85220	85242-12021	Blade Assy, Rear Wiper
85224	85224-60050	Plate, Wiper Rubber Backing, No.1
9009905157	90099-05157	Nut, Windshield Wiper Link Pivot
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2

OEM	Part name	Category
85130-12810	Motor Assy, Rear Wiper	Rear Wiper ([05.1992 - ] (9205- )HB)
85134-12780	Washer, Rear Wiper Link Pivot, No.1	Rear Wiper ([05.1992 - ] (9205- )HB)
85176-13070	Cap, Rear Wiper Link	Rear Wiper ([05.1992 - ] (9205- )HB)
85214-20330	Rubber, Wiper, Rh	Rear Wiper ([05.1992 - ] (9205- )HB)
85214-22360	Rubber, Rear Wiper	Rear Wiper ([05.1992 - ] (9205- )HB)
85224-60050	Plate, Wiper Rubber Backing, No.1	Rear Wiper ([05.1992 - ] (9205- )HB)
85241-12021	Arm Assy, Rear Wiper	Rear Wiper ([05.1992 - ] (9205- )HB)
85241-12031	Arm Assy, Rear Wiper	Rear Wiper ([05.1992 - ] (9205- )HB)
85242-12021	Blade Assy, Rear Wiper	Rear Wiper ([05.1992 - ] (9205- )HB)
85244-12010	Cover, Rear Wiper Arm	Rear Wiper ([05.1992 - ] (9205- )HB)
90099-05157	Nut, Windshield Wiper Link Pivot	Rear Wiper ([05.1992 - ] (9205- )HB)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Rear Wiper ([05.1992 - ] (9205- )HB)

Source: Public OEM parts-catalog data
Variants: 2 / 35
Category: 266
Collected: 2026-08-02
