Search › Model › EE101

EE101

Toyota COROLLA · 1991 · 6,010 parts · 266 categories

6,010 items

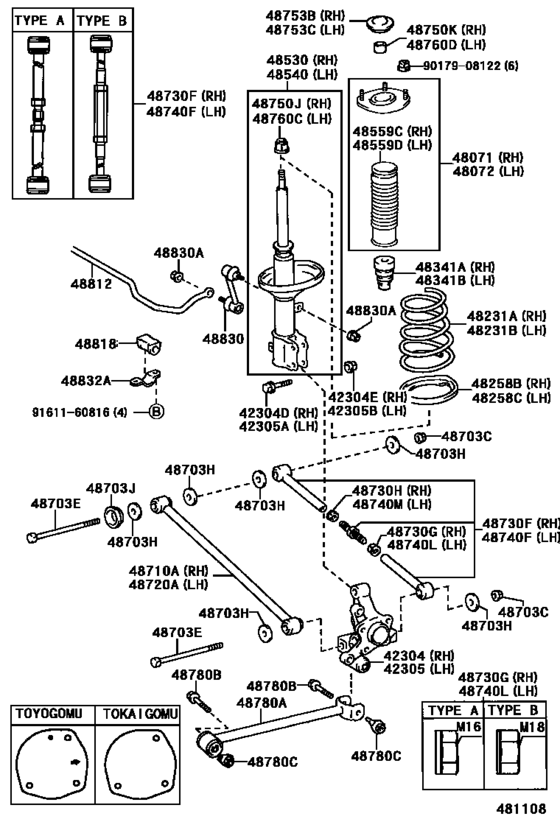

Rear Spring & Shock Absorber ([05.1992 - ] (9205- )) 40

#	OEM	Part name
42304	42304-12160	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-12180	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-12102	Bolt (For Rear Axle Carrier)
42304	90105-12236	Bolt (For Rear Axle Carrier)
42304	90179-12025	Nut (For Rear Axle Carrier)
42305	42305-12160	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-12180	Carrier Sub-Assy, Rear Axle, Lh
48071	48071-12140	Support Sub-Assy, Rear Suspension, Rh
48072	48072-12140	Support Sub-Assy, Rear Suspension, Lh
48231	48231-1E200	Spring, Coil, Rear Rh
48258	48258-12040	Insulator, Rear Coil Spring, Lower Rh
48341	48341-12130	Bumper, Rear Spring
48530	48530-12570	Absorber Assy, Shock, Rear Rh
48540	48540-12510	Absorber Assy, Shock, Rear Lh
48559	48559-12080	Cover, Rear Shock Absober Dust, Rh No.1
48559	48559-12090	Cover, Rear Shock Absober Dust
48703	90179-14019	Nut
48703	90105-14099	Bolt(For Rear Suspension Arm)
48703	90201-14017	Washer(For Rear Suspension Arm)
48703	90209-15002	Washer, No.2(For Rear Suspension Arm)
48710	48710-12240	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-12140	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-12150	Arm Assy, Rear Suspension, No.2 Lh
48730	90179-16022	Nut, No.1(For Rear Suspension Arm No.2)
48730	90179-16021	Nut, No.2(For Arm Assy, Rear Suspension, No.2)
48750	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-12050	Cover, Rear Suspension Support
48780	48780-12080	Rod Assy, Strut, Rear
48780	90119-12152	Bolt(For Rear Suspension Arm)
48780	90179-12063	Nut(For Rear Suspension Arm)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48812	48812-12180	Bar, Stabilizer, Rear
48818	48818-12160	Bush, Stabilizer, Rear
48830	48830-20010	Link Assy, Rear Stabilizer
48830	90179-10183	Nut(For Front Stabilizer Link)
48832	48832-20030	Bracket, Stabilizer(For Rear)
9017908122	90179-08122	Nut(For Rear Suspension Support)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
42304-12160	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
42304-12180	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
42305-12160	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
42305-12180	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48071-12140	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48072-12140	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48231-1E200	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48258-12040	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48341-12130	Bumper, Rear Spring	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48530-12570	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48540-12510	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48559-12080	Cover, Rear Shock Absober Dust, Rh No.1	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48559-12090	Cover, Rear Shock Absober Dust	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48710-12240	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48730-12140	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48730-12150	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48753-12050	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48780-12080	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48812-12180	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48818-12160	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
48832-20030	Bracket, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90105-12102	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90105-12236	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90105-14099	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90119-12152	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-12025	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-12063	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-14019	Nut	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-16021	Nut, No.2(For Arm Assy, Rear Suspension, No.2)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90179-16022	Nut, No.1(For Rear Suspension Arm No.2)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90201-14017	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90209-15002	Washer, No.2(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))
91611-B0816	Bolt	Rear Spring & Shock Absorber ([05.1992 - ] (9205- ))

Source: Public OEM parts-catalog data
Variants: 2 / 35
Category: 266
Collected: 2026-08-02
