EE101

Toyota COROLLA · 1991 · 6,010 parts · 266 categories
EE101 ×

← Back to categories

6,010 items

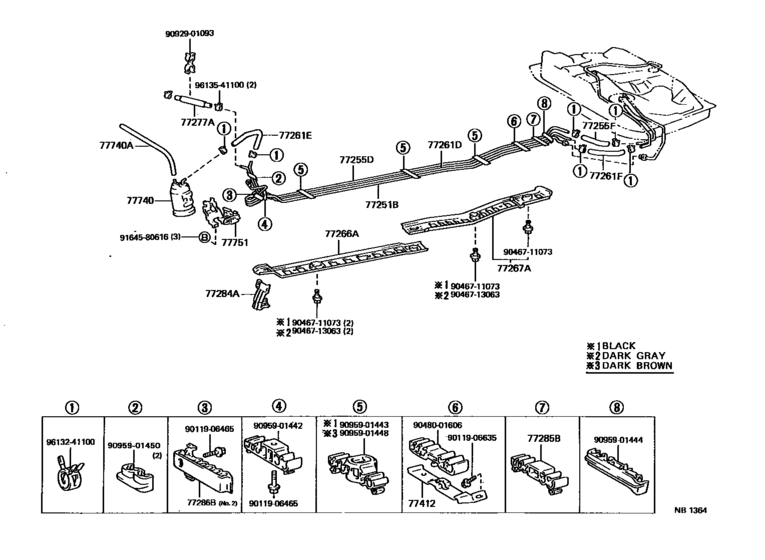

Fuel Tank & Tube ([05.1992 - ] (9205- )AE101,EE101..RHD) 34
#OEMPart name
77251 77251-12570 Tube, Fuel Main
77255 77255-12510 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 77261-12370 Tube, Fuel Tank To Canister
77261 77259-12200 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266 77266-12080 Protector, Fuel Tube, No.1
77267 77267-12100 Protector, Fuel Tube, No.2
77277 90447-12132 Hose, Fuel, No.1(For Return Tube, No.1)
77277 90447-12150 Hose, Fuel, No.1(For Return Tube, No.1)
77284 77284-12030 Protector, Fuel Tube, No.3
77285 77285-12020 Clamp, Fuel Tube W/grommet, No.1
77286 77286-12020 Clamp, Fuel Tube W/grommet, No.2
77286 77286-12040 Clamp, Fuel Tube W/grommet, No.2
77412 77412-12020 Support, Fuel Tube Grommet, No.2
77740 77740-12630 Canister Assy, Charcoal
77751 77750-12100 Bracket, Charcoal Canister Base
9011906465 90119-06465 BOLT
9011906635 90119-06635 New Genuine Part
9046711073 90467-11073 New Genuine Part
9046713063 90467-13063 New Genuine Part
9048001606 90480-01606 GROMMET
9092901093 90929-01093 New Genuine Part
9095901442 90959-01442 CLAMP
9095901443 90959-01443 New Genuine Part
9095901444 90959-01444 New Genuine Part
9095901448 90959-01448 CLAMP
9095901450 90959-01450 Clamp, Fuel Tube, No.1
9164580616 91645-80616 New Genuine Part
9164580616 91641-C0612 New Genuine Part
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
9613541100 96135-41100 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9613541100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
