EE101

Toyota COROLLA · 1991 · 6,010 parts · 266 categories
EE101 ×

← Back to categories

6,010 items

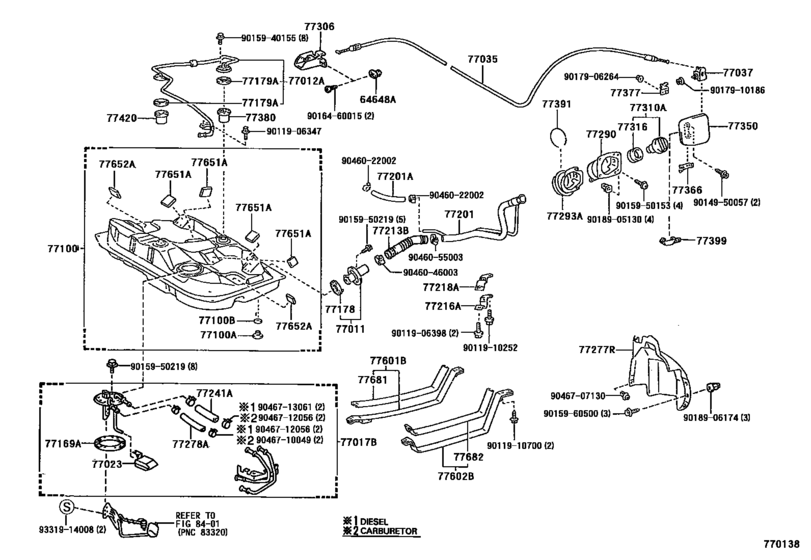

Fuel Tank & Tube ([05.1992 - 05.1995] (9205-9505)WG) 71
#OEMPart name
64648 64648-12010 Grommet, Luggage Door Lock Opener
77011 77011-12090 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-12080 Tube Sub-Assy, Fuel Tank Breather, No.1
77012 77012-12140 Tube Sub-Assy, Fuel Tank Breather, No.1
77035 77035-13020 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-13050 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-12050 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-12931 Tank Assy, Fuel
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-12500 Pipe Sub-Assy, Fuel Tank Inlet
77201 95311-13022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-12160 Hose, Fuel Tank To Filler Pipe
77216 77216-12070 Support, Fuel Tank Filler Pipe, No.1
77218 77218-12030 Support, Fuel Tank Filler Pipe, No.3
77241 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77277 77277-13050 Protector, Fuel Tank Filler Pipe
77290 77291-12090 Shield Assy, Fuel Tank Filler Pipe
77293 77293-12060 Shield, Fuel Tank Filler Pipe, No.3
77306 77306-13040-P0 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-13040-W3 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-13070-C0 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-13071 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-13040 Lid Assy, Fuel Filler Opening
77366 77360-12040 Spring, Fuel Filler Opening Lid Hinge
77377 77377-20050 Retainer, Fuel Filler Opening Lid Lock
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-14020 Ring, Fuel Inlet Box
77399 77399-12010 Hanger, Fuel Tank Cap
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77601 77601-12180 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-12130 Band Sub-Assy, Fuel Tank, No.1 Lh
77651 77651-20090 Cushion, Fuel Tank, No.1
77651 77652-12100 Cushion, Fuel Tank, No.1
77681 77681-12030 Seat, Fuel Tank Band, Rh
77681 77681-32060 Seat, Fuel Tank Band, Rh
77681 77682-12030 Seat, Fuel Tank Band, Rh
77682 77681-32070 Seat, Fuel Tank Band, Rh
9011906347 90119-06347 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011910252 90119-10252 BOLT
9011910700 90119-10700 New Genuine Part
9014950057 90149-50057 New Genuine Part
9015940155 90159-40155 SCREW WWASHER
9015950153 90159-50153 New Genuine Part
9015950153 90159-50323 SCREWWWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015960500 90159-60500 SCREW WWASHER
9016460015 90164-60015 SCREW
9017906264 90179-06264 NUT, WWASHER
9017910186 90179-10186 New Genuine Part
9018905130 90189-05130 GROMMET SCREW
9018906174 90189-06174 GROMMET SCREW
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9046707130 90467-07130 CLIP
9046710049 90467-10049 Clamp Or Clip(For Fuel Hose Set)
9046710049 90467-10149 Clip, No.2(For Idle-Up Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9331914008 93319-14008 SCREW
