EE101

Toyota COROLLA · 1991 · 6,010 parts · 266 categories

6,010 items

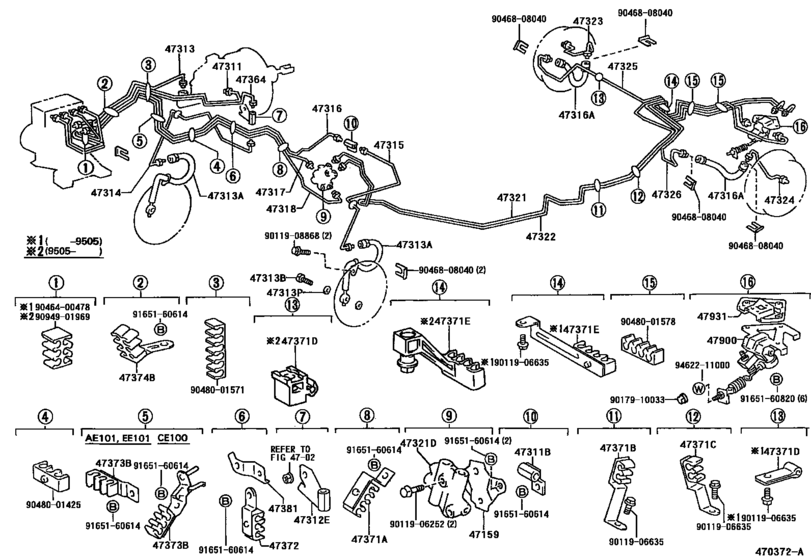

Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD) 99

#	OEM	Part name
47159	47159-12070	Bracket, Proportioning Valve
47311	47311-12560	Tube, Front Brake, No.1
47311	47311-12570	Tube, Front Brake, No.1
47311	47391-12010	Way, No.1(For Front Brake Tube)
47311	90412-10116	Way(For Front Brake Tube)
47311	47311-12450	Tube, Front Brake, No.1
47311	47311-12510	Tube, Front Brake, No.1
47311	47311-12540	Tube, Front Brake, No.1
47311	90413-10262	Way, No.1(For Front Brake Tube)
47312	90904-12007	Way, No.2(For Front Brake Tube)
47312	90412-10183	Way, No.2(For Front Brake Tube)
47313	47313-12370	Tube, Front Brake, No.3
47313	47313-12380	Tube, Front Brake, No.3
47313	90947-02798	Hose, Flexible, No.1(For Front)
47313	90947-02911	Hose, Flexible, No.1(For Front)
47313	90947-02799	Hose, Flexible, No.1(For Front)
47313	90947-02912	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47313	47313-12260	Tube, Front Brake, No.3
47313	47313-12290	Tube, Front Brake, No.3
47313	47313-12320	Tube, Front Brake, No.3
47313	47313-12340	Tube, Front Brake, No.3
47313	90947-02659	Hose, Flexible, No.1(For Front)
47313	90947-02660	Hose, Flexible, No.1(For Front)
47314	47314-12290	Tube, Front Brake, No.4
47314	47314-12320	Tube, Front Brake, No.4
47314	47314-12390	Tube, Front Brake, No.4
47314	47314-12400	Tube, Front Brake, No.4
47315	47315-12450	Tube, Front Brake, No.5
47315	47315-12460	Tube, Front Brake, No.5
47316	47316-12250	Tube, Front Brake, No.6
47316	90947-02783	Hose, Flexible(For Rear Brake Tube)
47316	90947-02921	Hose, Flexible(For Rear Brake Tube)
47316	47316-12240	Tube, Front Brake, No.6
47316	90947-02657	Hose, Flexible(For Rear Brake Tube)
47316	90947-02809	Hose, Flexible(For Rear Brake Tube)
47317	47317-12100	Tube, Front Brake, No.7
47317	47317-12090	Tube, Front Brake, No.7
47318	47318-12270	Tube, Front Brake, No.8
47318	47318-12230	Tube, Front Brake, No.8
47321	47321-12130	Tube, Rear Brake, No.1
47321	47321-12170	Tube, Rear Brake, No.1
47321	47321-12200	Tube, Rear Brake, No.1
47321	90412-10140	Valve Assy, Proportioning
47321	47321-13090	Tube, Rear Brake, No.1
47321	90413-10205	Valve Assy, Proportioning
47322	47322-12280	Tube, Rear Brake, No.2
47322	47322-12320	Tube, Rear Brake, No.2
47322	47322-12350	Tube, Rear Brake, No.2
47322	47322-13130	Tube, Rear Brake, No.2
47323	47323-12250	Tube, Rear Brake, No.3
47324	47324-12210	Tube, Rear Brake, No.4
47325	47325-12170	Tube, Rear Brake, No.5
47325	47325-12180	Tube, Rear Brake, No.5
47325	47325-13090	Tube, Rear Brake, No.5
47326	47326-12060	Tube, Rear Brake, No.6
47326	47326-12070	Tube, Rear Brake, No.6
47326	47326-13020	Tube, Rear Brake, No.6
47364	47364-12040	Tube, Front Brake, No.13
47364	47364-12041	Tube, Front Brake, No.13
47364	47364-12070	Tube, Front Brake, No.13
47364	47364-12130	Tube, Front Brake, No.13
47371	47371-12090	Clamp, Brake Tube, No.1
47371	47371-12100	Clamp, Brake Tube, No.1
47371	47375-12040	Clamp, Brake Tube, No.6
47371	47375-12060	Clamp, Brake Tube, No.7
47371	47371-12150	Clamp(For Clutch Master Cylinder Tube)
47371	47371-12160	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.10
47371	47375-12010	Clamp, Brake Tube, No.6
47371	47375-12020	Clamp, Brake Tube, No.7
47371	90461-08687	Clamp, Brake Tube, No.8
47371	47375-12050	Clamp, Brake Tube, No.9
47372	47372-12060	Clamp, Brake Tube, No.2
47372	90461-06119	Clamp, Brake Tube, No.2
47372	47372-12010	Clamp, Brake Tube, No.2
47373	47373-12010	Clamp, Brake Tube, No.1
47373	47373-12020	Clamp, Brake Tube, No.3
47374	47374-12030	Clamp, Brake Tube, No.4
47374	47374-12020	Clamp, Brake Tube, No.4
47381	47381-12190	Bracket, Brake Tube Clamp No.1
47900	47900-12011	Valve Assy, Load Sensing W/spring
47900	47900-12021	Valve Assy, Load Sensing W/spring
47931	47931-12011	Bracket, Load Sensing Valve
9011906252	90119-06252	New Genuine Part
9011906635	90119-06635	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9017910033	90179-10033	Nut (For Front Wiper Arm Setting)
9046400478	90464-00478	Clamp, Brake Tube, No.3
9046808040	90468-08040	CLIP
9048001425	90480-01425	Grommet, No.1(For Front Brake Tube)
9048001571	90480-01571	Clamp, Brake Tube, No.5
9048001578	90480-01578	New Genuine Part
9094901969	90949-01969	Clamp, Brake Tube, No.6
9094901969	90080-46365	Clamp, Brake Tube, No.5
9165160614	91651-60614	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9462211000	94622-11000	WASHER

OEM	Part name	Category
47159-12070	Bracket, Proportioning Valve	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47311-12450	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47311-12510	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47311-12540	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47311-12560	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47311-12570	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47313-12260	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47313-12290	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47313-12320	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47313-12340	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47313-12370	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47313-12380	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47314-12290	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47314-12320	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47314-12390	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47314-12400	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47315-12450	Tube, Front Brake, No.5	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47315-12460	Tube, Front Brake, No.5	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47316-12240	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47316-12250	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47317-12090	Tube, Front Brake, No.7	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47317-12100	Tube, Front Brake, No.7	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47318-12230	Tube, Front Brake, No.8	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47318-12270	Tube, Front Brake, No.8	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47321-12130	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47321-12170	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47321-12200	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47321-13090	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47322-12280	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47322-12320	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47322-12350	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47322-13130	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47323-12250	Tube, Rear Brake, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47324-12210	Tube, Rear Brake, No.4	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47325-12170	Tube, Rear Brake, No.5	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47325-12180	Tube, Rear Brake, No.5	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47325-13090	Tube, Rear Brake, No.5	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47326-12060	Tube, Rear Brake, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47326-12070	Tube, Rear Brake, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47326-13020	Tube, Rear Brake, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47364-12040	Tube, Front Brake, No.13	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47364-12041	Tube, Front Brake, No.13	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47364-12070	Tube, Front Brake, No.13	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47364-12130	Tube, Front Brake, No.13	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47371-12090	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47371-12100	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47371-12150	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47371-12160	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.10	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47372-12010	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47372-12060	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47373-12010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47373-12020	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47374-12020	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47374-12030	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47375-12010	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47375-12020	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47375-12040	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47375-12050	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47375-12060	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47381-12190	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47391-12010	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47900-12011	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47900-12021	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
47931-12011	Bracket, Load Sensing Valve	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90119-06252	New Genuine Part	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90119-06635	New Genuine Part	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90179-10033	Nut (For Front Wiper Arm Setting)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90412-10116	Way(For Front Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90412-10140	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90412-10183	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90413-10205	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90413-10262	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90461-06119	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90461-08687	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90464-00478	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90468-08040	CLIP	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90480-01425	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90480-01571	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90480-01578	New Genuine Part	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90904-12007	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02657	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02659	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02660	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02783	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02798	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02799	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02809	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02911	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02912	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90947-02921	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
91651-60614	Bolt	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
91651-60820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
91651-B0820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)
94622-11000	WASHER	Brake Tube & Clamp ([05.1992 - ] W(ABS) (9205- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 35
Category: 266
Collected: 2026-08-02
