Search › Model › EE101

EE101

Toyota COROLLA · 1991 · 6,010 parts · 266 categories

6,010 items

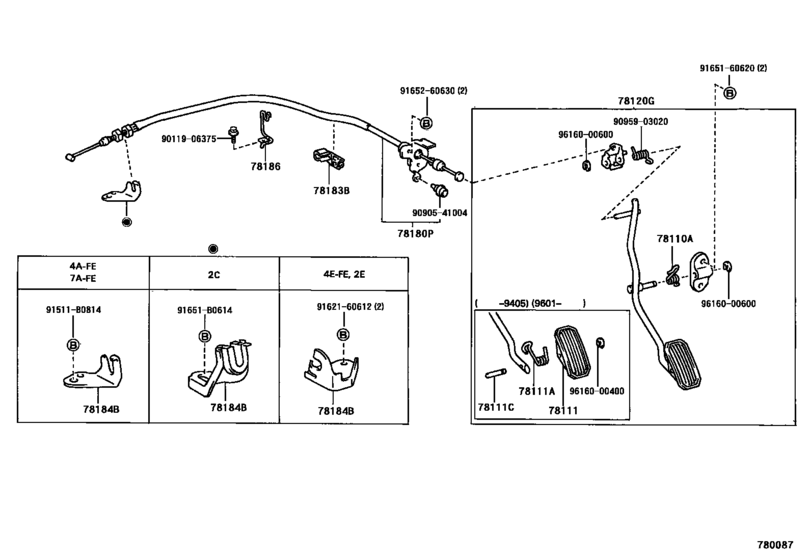

Accelerator Link ([05.1992 - ] (9205- )RHD) 25

#	OEM	Part name
78110	90508-18025	Spring (For Accelerator Pedal Rod)
78110	90508-26036	Spring (For Accelerator Pedal Rod)
78111	90508-18050	Spring (For Accelerator Pedal Rod)
78111	90249-05001	Pin (For Accelerator Pedal)
78111	78111-32010	Pedal, Accelerator
78120	78120-12160	Rod Assy, Accelerator Pedal
78120	78120-12161	Rod Assy, Accelerator Pedal
78120	78120-12150	Rod Assy, Accelerator Pedal
78120	78120-12151	Rod Assy, Accelerator Pedal
78180	78180-1A660	Cable Assy, Accelerator Control
78180	78180-1A440	Cable Assy, Accelerator Control
78183	78183-12160	Clamp, Accelerator Control Cable
78184	78184-16070	Bracket, Accelerator Control Cable
78184	78184-10080	Bracket, Accelerator Control Cable
91511	91511-B0814	BOLT
91651	91651-B0614	BOLT WWASHER
9011906375	90119-06375	Bolt (For Transmission Housing & Case Setting)
9090541004	90905-41004	New Genuine Part
9095903020	90959-03020	Spring (For Accelerator Pedal Rod)
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9165160620	91651-60620	BOLTWWASHER
9165260630	91652-60630	New Genuine Part
9616000400	96160-00400	Ring, E(For Release Arm)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
78111-32010	Pedal, Accelerator	Accelerator Link ([05.1992 - ] (9205- )RHD)
78120-12150	Rod Assy, Accelerator Pedal	Accelerator Link ([05.1992 - ] (9205- )RHD)
78120-12151	Rod Assy, Accelerator Pedal	Accelerator Link ([05.1992 - ] (9205- )RHD)
78120-12160	Rod Assy, Accelerator Pedal	Accelerator Link ([05.1992 - ] (9205- )RHD)
78120-12161	Rod Assy, Accelerator Pedal	Accelerator Link ([05.1992 - ] (9205- )RHD)
78180-1A440	Cable Assy, Accelerator Control	Accelerator Link ([05.1992 - ] (9205- )RHD)
78180-1A660	Cable Assy, Accelerator Control	Accelerator Link ([05.1992 - ] (9205- )RHD)
78183-12160	Clamp, Accelerator Control Cable	Accelerator Link ([05.1992 - ] (9205- )RHD)
78184-10080	Bracket, Accelerator Control Cable	Accelerator Link ([05.1992 - ] (9205- )RHD)
78184-16070	Bracket, Accelerator Control Cable	Accelerator Link ([05.1992 - ] (9205- )RHD)
90119-06375	Bolt (For Transmission Housing & Case Setting)	Accelerator Link ([05.1992 - ] (9205- )RHD)
90249-05001	Pin (For Accelerator Pedal)	Accelerator Link ([05.1992 - ] (9205- )RHD)
90508-18025	Spring (For Accelerator Pedal Rod)	Accelerator Link ([05.1992 - ] (9205- )RHD)
90508-18050	Spring (For Accelerator Pedal Rod)	Accelerator Link ([05.1992 - ] (9205- )RHD)
90508-26036	Spring (For Accelerator Pedal Rod)	Accelerator Link ([05.1992 - ] (9205- )RHD)
90905-41004	New Genuine Part	Accelerator Link ([05.1992 - ] (9205- )RHD)
90959-03020	Spring (For Accelerator Pedal Rod)	Accelerator Link ([05.1992 - ] (9205- )RHD)
91511-B0814	BOLT	Accelerator Link ([05.1992 - ] (9205- )RHD)
91621-60612	BOLTWWASHER	Accelerator Link ([05.1992 - ] (9205- )RHD)
91621-J0612	BOLT W-WASHER	Accelerator Link ([05.1992 - ] (9205- )RHD)
91651-60620	BOLTWWASHER	Accelerator Link ([05.1992 - ] (9205- )RHD)
91651-B0614	BOLT WWASHER	Accelerator Link ([05.1992 - ] (9205- )RHD)
91652-60630	New Genuine Part	Accelerator Link ([05.1992 - ] (9205- )RHD)
96160-00400	Ring, E(For Release Arm)	Accelerator Link ([05.1992 - ] (9205- )RHD)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Accelerator Link ([05.1992 - ] (9205- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 35
Category: 266
Collected: 2026-08-02
