Search › Model › EE100

EE100

Toyota COROLLA · 1991 · 4,320 parts · 235 categories

← Back to categories

4,320 items

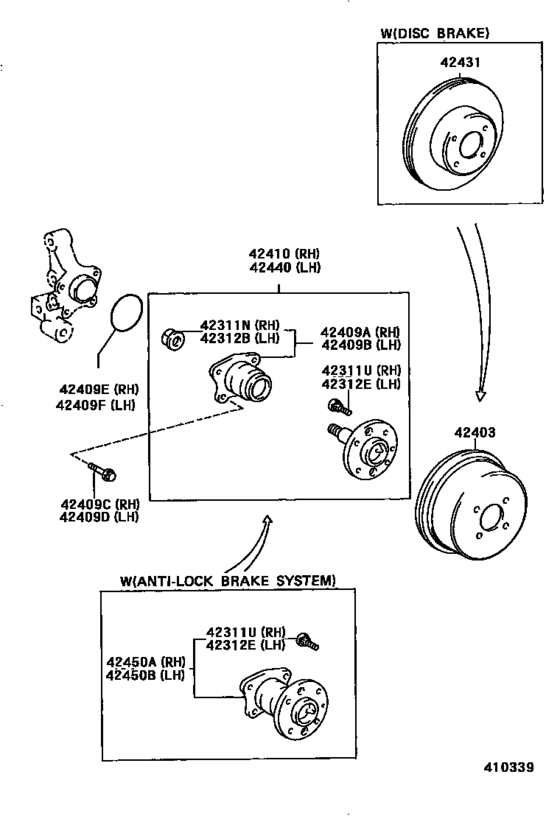

Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101) 9

#	OEM	Part name
42311	90179-20017	Nut (For Rear Axle Shaft)
42311	90942-02047	Bolt, Hub
42403	42431-20250	Drum Sub-Assy, Rear Brake
42403	42431-12130	Drum Sub-Assy, Rear Brake
42409	42409-19015	Bearing Sub-Assy, Rear Axle
42409	90105-10404	Bolt (For Rear Axle Carrier Rh)
42409	90301-61002	Ring, O (For Axle Bearing)
42409	90105-10124	Bolt (For Axle Bearing)
42410	42410-12090	Hub & Bearing Assy, Rear Axle, Rh

OEM	Part name	Category
42409-19015	Bearing Sub-Assy, Rear Axle	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
42410-12090	Hub & Bearing Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
42431-12130	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
42431-20250	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
90105-10124	Bolt (For Axle Bearing)	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
90105-10404	Bolt (For Rear Axle Carrier Rh)	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
90179-20017	Nut (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
90301-61002	Ring, O (For Axle Bearing)	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([08.1991 - ] (9108- )AE10#,CE100,EE100,101)

Source: Public OEM parts-catalog data
Variants: 2 / 25
Category: 235
Collected: 2026-08-02
