| 04111-30206-000 |
コッタピン |

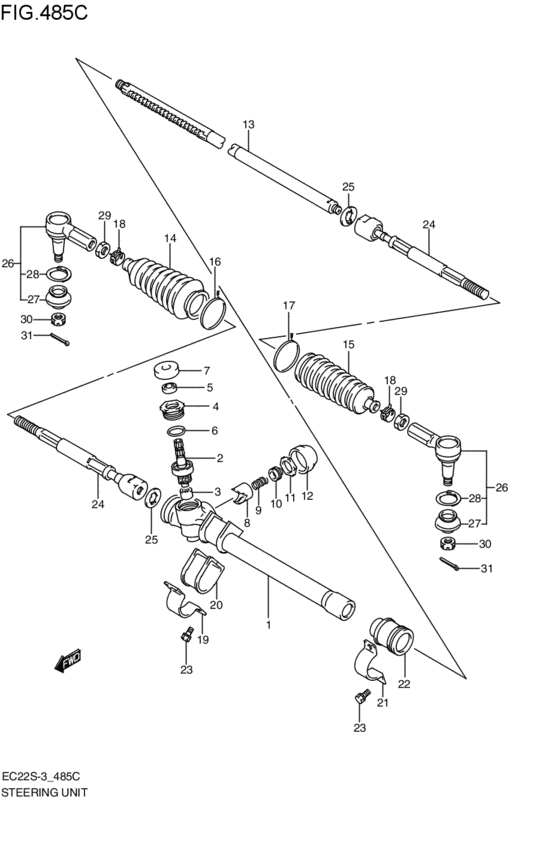

steering unit (2004-12-01~2005-09-01) |
| 04111-3020A-000 |
PIN |
steering unit (2004-12-01~2005-09-01) |
| 08314-40123-000 |
Nut - Nut, knuckle end |
steering unit (2004-12-01~2005-09-01) |
| 08314-4012A-000 |
NUT |
steering unit (2004-12-01~2005-09-01) |
| 09117-08099-000 |
ボルト,8X25 |
steering unit (2004-12-01~2005-09-01) |
| 09117-08101-000 |
BOLT(8X25) |
steering unit (2004-12-01~2005-09-01) |
| 09140-12030-000 |
NUT - Nut, tie rod (rh thread) |
steering unit (2004-12-01~2005-09-01) |
| 09263-10014-000 |
BEARING(10X14X10) - Bearing, cl rlse low |
steering unit (2004-12-01~2005-09-01) |
| 09280-34003-000 |
O RING(D:2,ID:34.1) |
steering unit (2004-12-01~2005-09-01) |
| 09283-15002-000 |
SEAL,OIL(15X25X5) |
steering unit (2004-12-01~2005-09-01) |
| 09401-16403-000 |
CLIP - Clip, 2nd air hose no.2 |
steering unit (2004-12-01~2005-09-01) |
| 09401-23402-000 |
CLIP |
steering unit (2004-12-01~2005-09-01) |
| 09460-01028-000 |
WIRE |
steering unit (2004-12-01~2005-09-01) |
| 09460-01029-000 |
WIRE |
steering unit (2004-12-01~2005-09-01) |
| 48451-82000-000 |
PACKING,STEERING GEAR CASE |
steering unit (2004-12-01~2005-09-01) |
| 48510-80H20-000 |
ケースアッシ,ステアリングギヤ |
steering unit (2004-12-01~2005-09-01) |
| 48521-76G00-000 |
BRACKET,STEERING PINION SIDE |
steering unit (2004-12-01~2005-09-01) |
| 48522-82000-000 |
BRACKET,STEERING RACK SIDE |
steering unit (2004-12-01~2005-09-01) |
| 48525-76G00-000 |
MOUNT,STRG PINION SIDE |
steering unit (2004-12-01~2005-09-01) |
| 48526-77A00-000 |
MOUNT,STRG RACK SIDE |
steering unit (2004-12-01~2005-09-01) |
| 48531-76G00-000 |
RACK,STEERING |
steering unit (2004-12-01~2005-09-01) |
| 48534-60J00-000 |
PLUNGER,STEERING RACK |
steering unit (2004-12-01~2005-09-01) |
| 48535-76G01-000 |
SCREW,RACK DAMPER |
steering unit (2004-12-01~2005-09-01) |
| 48536-58000-000 |
CAP,RACK DAMPER SCREW |
steering unit (2004-12-01~2005-09-01) |
| 48536-76G00-000 |
NUT,DAMPER SCREW LOCK |
steering unit (2004-12-01~2005-09-01) |
| 48537-80G00-000 |
SPRING,RACK PLUNGER |
steering unit (2004-12-01~2005-09-01) |
| 48550-70B10-000 |
PINION,STEERING |
steering unit (2004-12-01~2005-09-01) |
| 48562-82000-000 |
Plug, pinion bearing |
steering unit (2004-12-01~2005-09-01) |
| 48562-82K00-000 |
PLUG,PINION BEARING |
steering unit (2004-12-01~2005-09-01) |
| 48571-58J00-000 |
BOOT,STEERING PINION SIDE |
steering unit (2004-12-01~2005-09-01) |
| 48572-58J00-000 |
BOOT,STEERING RACK SIDE |
steering unit (2004-12-01~2005-09-01) |
| 48800-60810-000 |
Boot Set |
steering unit (2004-12-01~2005-09-01) |
| 48810-76G00-000 |
END,STEERING TIE-ROD |
steering unit (2004-12-01~2005-09-01) |
| 48819-60B00-000 |
BOOT SET |
steering unit (2004-12-01~2005-09-01) |
| 48819-60B01-000 |
Boot Set |
steering unit (2004-12-01~2005-09-01) |
| 48830-76G00-000 |
TIE-ROD,STEERING |
steering unit (2004-12-01~2005-09-01) |
| 48841-77A00-000 |
WASHER,STEERING TIE ROD LOCK |
steering unit (2004-12-01~2005-09-01) |
