Search › Model › EC22S

EC22S

Suzuki TWIN · 2003 · 1,918 parts · 106 categories

1,918 items

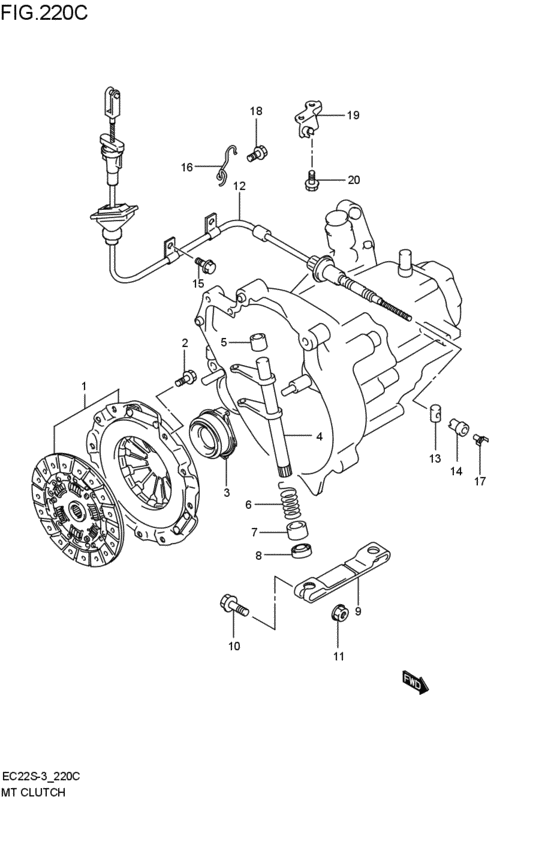

mt - clutch (MT; 2004-12-01~2005-09-01) 30

#	OEM	Part name
1	22400-60810-000	Disc set,clutch
1	22400-60811-000	DISC SET,CLUTCH
2	09117-06033-000	BOLT(6X12)
3	23265-60D00-000	BEARING,CLUTCH RELEASE
4	23260-60D02-000	SHAFT,CLUTCH RELEASE
5	09300-12011-000	BUSH(12X16X15)
6	23269-60D01-000	SPRING,CLUTCH RELEASE RETURN
7	09300-12004-000	BUSH(12X20X15)
8	09284-12007-000	SEAL,OIL(12X20X5)
9	23266-70B20-000	Arm,clutch release
9	23266-70B21-000	ARM,CLUTCH RELEASE
10	01550-08303-000	Bolt
10	01550-0830B-000	Bolt
10	01550-0830A-000	Bolt - Bolt, mount oil seal cover
11	08316-1008A-000	NUT - Nut, idle gear shaft
12	23710-75H00-000	CABLE ASSY,CLUTCH
13	09209-13018-000	PIN(13X18)
14	09150-06014-000	Nut
14	09150-06010-000	NUT
15	02162-06123-000	Bolt (6x12)
15	02162-0612B-000	SCREW - Bolt
15	02162-0612A-000	SCREW - Bolt, bracket
16	23915-70B01-000	CLAMP,CLUTCH CABLE
17	23922-76G00-000	CAP,CLUTCH CABLE JOINT LOCK
18	09135-06022-000	Bolt
18	09135-06027-000	BOLT(6X12)
19	23910-76G00-000	ブラケット,クラッチケーブル
20	01550-08203-000	Bolt
20	01550-0820B-000	Bolt
20	01550-0820A-000	Bolt - Bolt, funnel bracket

OEM	Part name	Category
01550-08203-000	Bolt	mt - clutch (MT; 2004-12-01~2005-09-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	mt - clutch (MT; 2004-12-01~2005-09-01)
01550-0820B-000	Bolt	mt - clutch (MT; 2004-12-01~2005-09-01)
01550-08303-000	Bolt	mt - clutch (MT; 2004-12-01~2005-09-01)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	mt - clutch (MT; 2004-12-01~2005-09-01)
01550-0830B-000	Bolt	mt - clutch (MT; 2004-12-01~2005-09-01)
02162-06123-000	Bolt (6x12)	mt - clutch (MT; 2004-12-01~2005-09-01)
02162-0612A-000	SCREW - Bolt, bracket	mt - clutch (MT; 2004-12-01~2005-09-01)
02162-0612B-000	SCREW - Bolt	mt - clutch (MT; 2004-12-01~2005-09-01)
08316-1008A-000	NUT - Nut, idle gear shaft	mt - clutch (MT; 2004-12-01~2005-09-01)
09117-06033-000	BOLT(6X12)	mt - clutch (MT; 2004-12-01~2005-09-01)
09135-06022-000	Bolt	mt - clutch (MT; 2004-12-01~2005-09-01)
09135-06027-000	BOLT(6X12)	mt - clutch (MT; 2004-12-01~2005-09-01)
09150-06010-000	NUT	mt - clutch (MT; 2004-12-01~2005-09-01)
09150-06014-000	Nut	mt - clutch (MT; 2004-12-01~2005-09-01)
09209-13018-000	PIN(13X18)	mt - clutch (MT; 2004-12-01~2005-09-01)
09284-12007-000	SEAL,OIL(12X20X5)	mt - clutch (MT; 2004-12-01~2005-09-01)
09300-12004-000	BUSH(12X20X15)	mt - clutch (MT; 2004-12-01~2005-09-01)
09300-12011-000	BUSH(12X16X15)	mt - clutch (MT; 2004-12-01~2005-09-01)
22400-60810-000	Disc set,clutch	mt - clutch (MT; 2004-12-01~2005-09-01)
22400-60811-000	DISC SET,CLUTCH	mt - clutch (MT; 2004-12-01~2005-09-01)
23260-60D02-000	SHAFT,CLUTCH RELEASE	mt - clutch (MT; 2004-12-01~2005-09-01)
23265-60D00-000	BEARING,CLUTCH RELEASE	mt - clutch (MT; 2004-12-01~2005-09-01)
23266-70B20-000	Arm,clutch release	mt - clutch (MT; 2004-12-01~2005-09-01)
23266-70B21-000	ARM,CLUTCH RELEASE	mt - clutch (MT; 2004-12-01~2005-09-01)
23269-60D01-000	SPRING,CLUTCH RELEASE RETURN	mt - clutch (MT; 2004-12-01~2005-09-01)
23710-75H00-000	CABLE ASSY,CLUTCH	mt - clutch (MT; 2004-12-01~2005-09-01)
23910-76G00-000	ブラケット,クラッチケーブル	mt - clutch (MT; 2004-12-01~2005-09-01)
23915-70B01-000	CLAMP,CLUTCH CABLE	mt - clutch (MT; 2004-12-01~2005-09-01)
23922-76G00-000	CAP,CLUTCH CABLE JOINT LOCK	mt - clutch (MT; 2004-12-01~2005-09-01)
