Search › Model › EC22S

EC22S

Suzuki TWIN · 2003 · 1,918 parts · 106 categories

1,918 items

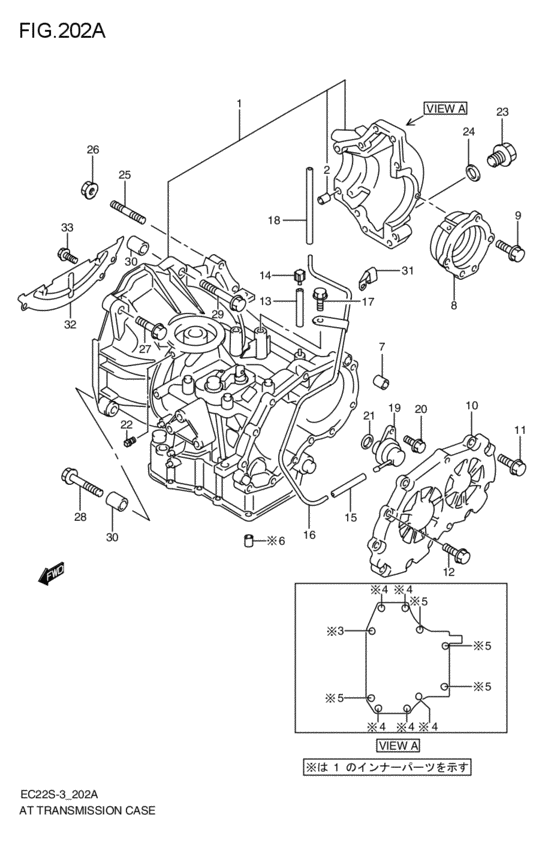

at - transmission case (AT; 2004-12-01~2005-09-01) 50

#	OEM	Part name
1	24700-76G12-000	CASE ASSY,T/M
2	04211-13149-000	PIN
3	24743-76G11-000	BOLT,T/M BOTTOM CASE N0.1
3	24743-76G12-000	Bolt,t/m Bottom Case No.1
4	09117-08090-000	BOLT(8X40)
5	01550-10503-000	Bolt - Bolt, rh
5	01550-1050B-000	Bolt
6	09202-06035-000	PIN
8	24721-76G10-000	HOUSING,SIDE BEARING
9	24722-56E00-000	ボルト,サイドベアリングハウジング
9	24722-72J10-000	BOLT,SIDE BRG HSG
9	24722-72J11-000	Bolt,side Brg Hsg
10	24731-76G10-000	COVER,T/M RR
11	01550-08253-000	Bolt, rear
11	01550-0825B-000	Bolt
11	01550-0825A-000	Bolt
12	24732-76G10-000	ボルト,トランスミッションリヤカバー
13	09352-50823-600	HOSE(5X8.2X600) - Hose, evapotation (5.0x8.2x600)
13	44420-44AR0-000	HOSE SET,FUEL
13	09352-50005-600	Hose(5X8.2X600)
14	27991-78G10-000	PLUG,BREATHER HOSE
15	09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
15	09355-35006-601	Hose(3.5X7.5X601)
16	24898-76G10-000	パイプ,バキューム
16	24898-76G11-000	PIPE,VACUUM
17	01550-0612A-000	Bolt
18	24899-76G50-000	HOSE,VACUUM
19	24781-71B80-000	DIAPHRAGM,VACUUM
21	26584-84G10-000	O-RING,VACUUM DIAPHRAGM
22	24822-58E00-000	PLUG,BOOSTER
22	24822-58E01-000	Plug,booster
23	09247-14044-000	DRAIN PLUG (M14x1.5)
24	24824-71B71-000	GASKET,18X24X2
25	01421-10353-000	Stud 10x1.25x55 - Stud bolt
25	01421-1035A-000	BOLT,STUD
25	01421-1035B-000	BOLT,STUD
26	08316-10103-000	Nut
26	08316-1010B-000	NUT
27	01550-10453-000	Bolt
27	01550-1045B-000	Bolt
28	01550-10553-000	Bolt - Bolt, front
28	01550-1055B-000	Bolt
29	01550-10603-000	Bolt
29	01550-1060B-000	Bolt
29	01550-1060A-000	Bolt
31	26585-71B70-000	CLIP,HARN,NO.3
32	29531-58J00-000	プレート,クラッチハウジング,ロア
32	24793-65KF0-000	プレート,クラッチハウジングロア
33	02162-06103-000	Bolt - Bolt, bracket
33	02162-0610A-000	SCREW

OEM	Part name	Category
01421-10353-000	Stud 10x1.25x55 - Stud bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01421-1035A-000	BOLT,STUD	at - transmission case (AT; 2004-12-01~2005-09-01)
01421-1035B-000	BOLT,STUD	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-0612A-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-08253-000	Bolt, rear	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-0825A-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-0825B-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-10453-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-1045B-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-10503-000	Bolt - Bolt, rh	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-1050B-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-10553-000	Bolt - Bolt, front	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-1055B-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-10603-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-1060A-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
01550-1060B-000	Bolt	at - transmission case (AT; 2004-12-01~2005-09-01)
02162-06103-000	Bolt - Bolt, bracket	at - transmission case (AT; 2004-12-01~2005-09-01)
02162-0610A-000	SCREW	at - transmission case (AT; 2004-12-01~2005-09-01)
04211-13149-000	PIN	at - transmission case (AT; 2004-12-01~2005-09-01)
08316-10103-000	Nut	at - transmission case (AT; 2004-12-01~2005-09-01)
08316-1010B-000	NUT	at - transmission case (AT; 2004-12-01~2005-09-01)
09117-08090-000	BOLT(8X40)	at - transmission case (AT; 2004-12-01~2005-09-01)
09202-06035-000	PIN	at - transmission case (AT; 2004-12-01~2005-09-01)
09247-14044-000	DRAIN PLUG (M14x1.5)	at - transmission case (AT; 2004-12-01~2005-09-01)
09352-50005-600	Hose(5X8.2X600)	at - transmission case (AT; 2004-12-01~2005-09-01)
09352-50823-600	HOSE(5X8.2X600) - Hose, evapotation (5.0x8.2x600)	at - transmission case (AT; 2004-12-01~2005-09-01)
09355-35006-601	Hose(3.5X7.5X601)	at - transmission case (AT; 2004-12-01~2005-09-01)
09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)	at - transmission case (AT; 2004-12-01~2005-09-01)
24700-76G12-000	CASE ASSY,T/M	at - transmission case (AT; 2004-12-01~2005-09-01)
24721-76G10-000	HOUSING,SIDE BEARING	at - transmission case (AT; 2004-12-01~2005-09-01)
24722-56E00-000	ボルト,サイドベアリングハウジング	at - transmission case (AT; 2004-12-01~2005-09-01)
24722-72J10-000	BOLT,SIDE BRG HSG	at - transmission case (AT; 2004-12-01~2005-09-01)
24722-72J11-000	Bolt,side Brg Hsg	at - transmission case (AT; 2004-12-01~2005-09-01)
24731-76G10-000	COVER,T/M RR	at - transmission case (AT; 2004-12-01~2005-09-01)
24732-76G10-000	ボルト,トランスミッションリヤカバー	at - transmission case (AT; 2004-12-01~2005-09-01)
24743-76G11-000	BOLT,T/M BOTTOM CASE N0.1	at - transmission case (AT; 2004-12-01~2005-09-01)
24743-76G12-000	Bolt,t/m Bottom Case No.1	at - transmission case (AT; 2004-12-01~2005-09-01)
24781-71B80-000	DIAPHRAGM,VACUUM	at - transmission case (AT; 2004-12-01~2005-09-01)
24793-65KF0-000	プレート,クラッチハウジングロア	at - transmission case (AT; 2004-12-01~2005-09-01)
24822-58E00-000	PLUG,BOOSTER	at - transmission case (AT; 2004-12-01~2005-09-01)
24822-58E01-000	Plug,booster	at - transmission case (AT; 2004-12-01~2005-09-01)
24824-71B71-000	GASKET,18X24X2	at - transmission case (AT; 2004-12-01~2005-09-01)
24898-76G10-000	パイプ,バキューム	at - transmission case (AT; 2004-12-01~2005-09-01)
24898-76G11-000	PIPE,VACUUM	at - transmission case (AT; 2004-12-01~2005-09-01)
24899-76G50-000	HOSE,VACUUM	at - transmission case (AT; 2004-12-01~2005-09-01)
26584-84G10-000	O-RING,VACUUM DIAPHRAGM	at - transmission case (AT; 2004-12-01~2005-09-01)
26585-71B70-000	CLIP,HARN,NO.3	at - transmission case (AT; 2004-12-01~2005-09-01)
27991-78G10-000	PLUG,BREATHER HOSE	at - transmission case (AT; 2004-12-01~2005-09-01)
29531-58J00-000	プレート,クラッチハウジング,ロア	at - transmission case (AT; 2004-12-01~2005-09-01)
44420-44AR0-000	HOSE SET,FUEL	at - transmission case (AT; 2004-12-01~2005-09-01)
