Search › Model › EC22S

EC22S

Suzuki TWIN · 2003 · 1,918 parts · 106 categories

1,918 items

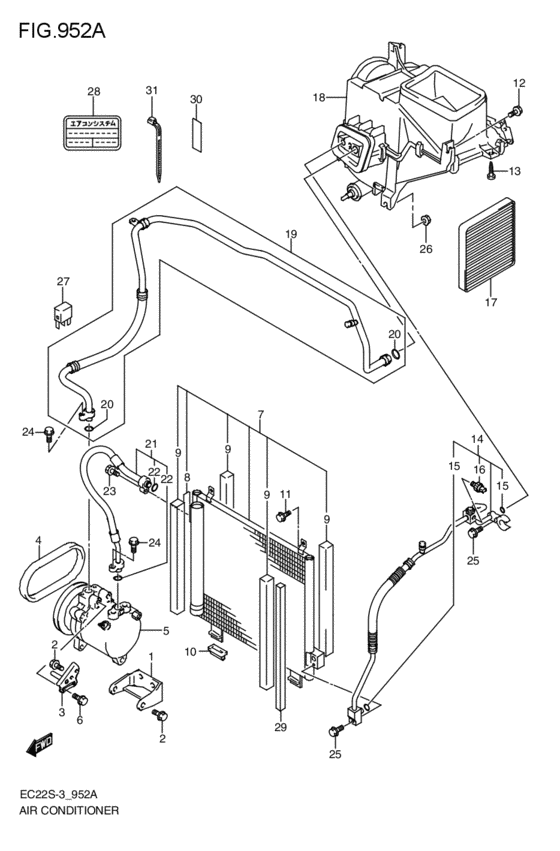

air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01) 42

#	OEM	Part name
1	95110-73G01-000	BRACKET,COMPRESSOR
2	01550-08203-000	Bolt
2	01550-0820B-000	Bolt
2	01550-0820A-000	Bolt - Bolt, funnel bracket
3	95120-73G10-000	STAY,COMPRESSOR ADJUST
4	95141-70B12-000	V-BELT,L:750
5	95200-78A03-000	COMPRESSOR ASSY
7	95310-80H00-000	コンデンサアッシ
7	95310-80H01-000	CONDENSER ASSY
8	95341-76G00-000	SEAL,CONDENSER PACKING
9	95815-50E10-000	PACKING,CONDENSER
10	95851-75F00-000	BUSH,COND
11	02162-06163-000	Screw - Bolt
11	02162-0616B-000	SCREW - Bolt, adjust
12	09113-06006-000	BOLT(6X20)
12	09113-06014-000	BOLT(6X20)
13	03541-05163-000	Screw
13	03541-0516A-000	SCREW
14	95730-80H30-000	ホース,レシーバアウトレット
14	95730-80H32-000	New Genuine Part
15	95891-50G00-000	O-RING,D:1.8 ID:6.7
16	95526-50G10-000	Switch, dual pressure
16	95526-50G30-000	SWITCH,DUAL PRESSURE
17	95860-81A10-000	FILTER
18	95400-75H00-000	Cooling unit
18	95400-75H01-000	COOLING UNIT
19	95710-76G03-000	ホース,サクション
20	95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)
21	95720-80H30-000	ホース,ディスチャージ
21	95720-80H32-000	New Genuine Part
22	95895-50G00-000	O-RING,D:2.4 ID:10.8
23	01550-06203-000	Bolt
23	01550-0620B-000	Bolt - Bolt, inspection cap
26	09159-06081-000	NUT
27	38860-76F01-000	RELAY ASSY - Relay, starting motor
28	95956-84G20-000	ラベル,レフリジェラント
28	95956-84G21-000	LABEL,REFRIGERANT
28	95956-84GJ0-000	ラベル,レフリジェラント
28	95956-84GJ1-000	Discontinue
29	95811-73H00-000	PACKING
30	36930-82010-000	COVER,HARNESS - Cover, roof wire
31	09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap

OEM	Part name	Category
01550-06203-000	Bolt	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
01550-0620B-000	Bolt - Bolt, inspection cap	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
01550-08203-000	Bolt	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
01550-0820B-000	Bolt	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
02162-06163-000	Screw - Bolt	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
02162-0616B-000	SCREW - Bolt, adjust	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
03541-05163-000	Screw	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
03541-0516A-000	SCREW	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
09113-06006-000	BOLT(6X20)	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
09113-06014-000	BOLT(6X20)	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
09159-06081-000	NUT	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
36930-82010-000	COVER,HARNESS - Cover, roof wire	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
38860-76F01-000	RELAY ASSY - Relay, starting motor	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95110-73G01-000	BRACKET,COMPRESSOR	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95120-73G10-000	STAY,COMPRESSOR ADJUST	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95141-70B12-000	V-BELT,L:750	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95200-78A03-000	COMPRESSOR ASSY	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95310-80H00-000	コンデンサアッシ	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95310-80H01-000	CONDENSER ASSY	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95341-76G00-000	SEAL,CONDENSER PACKING	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95400-75H00-000	Cooling unit	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95400-75H01-000	COOLING UNIT	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95526-50G10-000	Switch, dual pressure	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95526-50G30-000	SWITCH,DUAL PRESSURE	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95710-76G03-000	ホース,サクション	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95720-80H30-000	ホース,ディスチャージ	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95720-80H32-000	New Genuine Part	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95730-80H30-000	ホース,レシーバアウトレット	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95730-80H32-000	New Genuine Part	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95811-73H00-000	PACKING	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95815-50E10-000	PACKING,CONDENSER	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95851-75F00-000	BUSH,COND	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95860-81A10-000	FILTER	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95891-50G00-000	O-RING,D:1.8 ID:6.7	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95895-50G00-000	O-RING,D:2.4 ID:10.8	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95956-84G20-000	ラベル,レフリジェラント	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95956-84G21-000	LABEL,REFRIGERANT	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95956-84GJ0-000	ラベル,レフリジェラント	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
95956-84GJ1-000	Discontinue	air-conditioner ((D,V,T,S):ヒョウジュン,C:OPT; 2004-12-01~2005-09-01)
