| 01550-08403-000 |
Bolt |
starting motor (1991-10-01~1995-05-01) |
| 01550-0840A-000 |
Bolt |
starting motor (1991-10-01~1995-05-01) |
| 01550-0840B-000 |
Bolt |
starting motor (1991-10-01~1995-05-01) |
| 08310-00083-000 |
Nut |
starting motor (1991-10-01~1995-05-01) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
starting motor (1991-10-01~1995-05-01) |
| 08310-0008B-000 |
NUT |
starting motor (1991-10-01~1995-05-01) |
| 08321-01083-000 |
Lock washer |
starting motor (1991-10-01~1995-05-01) |
| 08321-0108A-000 |
WASHER,LOCK |
starting motor (1991-10-01~1995-05-01) |
| 08321-0108B-000 |
WASHER,LOCK |
starting motor (1991-10-01~1995-05-01) |

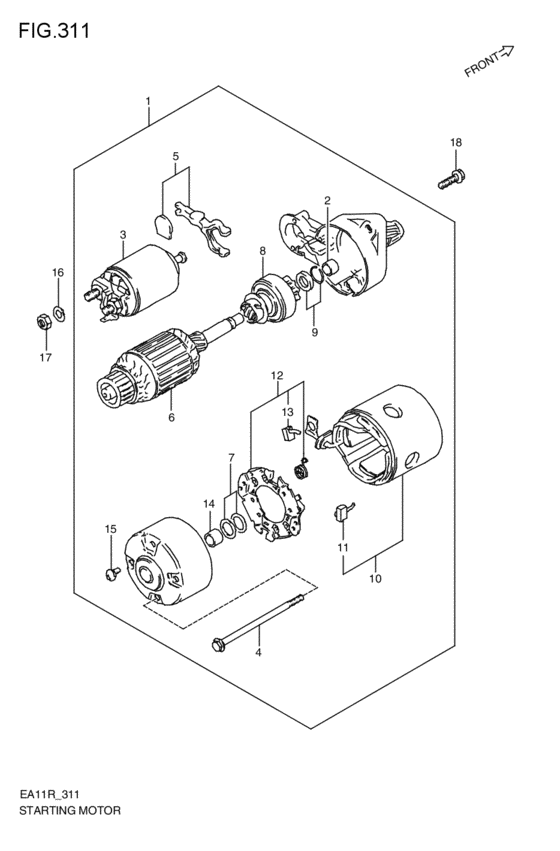

| 31100-80F20-000 |
MOTOR ASSY,STARTING |
starting motor (1991-10-01~1995-05-01) |
| 31110-70B30-000 |
YOKE ASSY |
starting motor (1991-10-01~1995-05-01) |
| 31131-80090-000 |
BRUSH(+) |
starting motor (1991-10-01~1995-05-01) |
| 31132-80090-000 |
BRUSH(-) |
starting motor (1991-10-01~1995-05-01) |
| 31136-79030-000 |
SCREW ASSY |
starting motor (1991-10-01~1995-05-01) |
| 31152-70B30-000 |
BUSHING |
starting motor (1991-10-01~1995-05-01) |
| 31172-79030-000 |
BUSH |
starting motor (1991-10-01~1995-05-01) |
| 31173-79030-000 |
HOLDER BRUSH |
starting motor (1991-10-01~1995-05-01) |
| 31173-82130-000 |
HOLDER ASSY,BRUSH |
starting motor (1991-10-01~1995-05-01) |
| 31175-79030-000 |
Screw Set |
starting motor (1991-10-01~1995-05-01) |
| 31191-79030-000 |
LEVER ASSY |
starting motor (1991-10-01~1995-05-01) |
| 31220-80092-000 |
スイッチアッシ |
starting motor (1991-10-01~1995-05-01) |
| 31220-84030-000 |
SWITCH ASSY |
starting motor (1991-10-01~1995-05-01) |
| 31261-82130-000 |
Bolt |
starting motor (1991-10-01~1995-05-01) |
| 31311-70B31-000 |
Armature |
starting motor (1991-10-01~1995-05-01) |
| 31313-80090-000 |
RING SET |
starting motor (1991-10-01~1995-05-01) |
| 31320-86140-000 |
CLUTCH ASSY |
starting motor (1991-10-01~1995-05-01) |
| 31361-79030-000 |
WASHER |
starting motor (1991-10-01~1995-05-01) |
