Search › Model › EA11R

EA11R

Suzuki CAPPUCCINO · 1991 · 2,380 parts · 95 categories

2,380 items

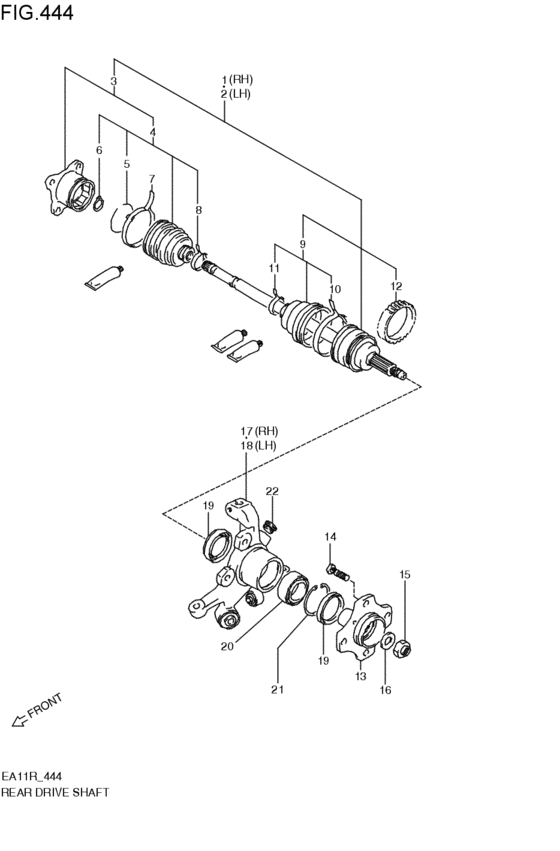

rear drive shaft (1991-10-01~1995-05-01) 26

#	OEM	Part name
1	44101-80F10-000	Shaft assy,rear drive
2	44102-80F10-000	SHAFT ASSY,REAR DRIVE,L
3	44114-80F00-000	ジョイントアッシ,ディファレンシャルサイド
3	44114-80F01-000	Joint assy,diff side
4	44119-80F00-000	ブーツセット,ディファレンシャルサイド
4	44119-80F01-000	BOOT SET,DIFF SIDE
4	44119-80F02-000	BOOT SET,DIFF SIDE
5	44112-78010-000	CIRCLIP
6	44111-78010-000	RING,SNAP
7	44121-86010-000	BAND,BOOT
8	44124-86011-000	BAND,BOOT
9	44118-69D01-000	BOOT SET
9	44118-69D02-000	BOOT SET
10	44122-86010-000	BAND,BOOT - Clamp, differential side outer boot
13	43421-63B41-000	ハブ,リヤホイール
13	43420-63810-000	HUB SET,RR WHL
14	09119-12012-000	BOLT(12X38)
15	09159-18008-000	NUT
16	09160-18017-000	WASHER(18X35X4)
17	46100-80810-000	KNUCKLE SET,RR SPNSN,R
18	46100-80820-000	KNUCKLE SET,RR SPNSN,L
19	43431-60B20-000	SEAL,FR WHL BRG INNER OIL
20	09267-35003-000	BEARING(35X61X31)
21	08331-41626-000	Ring 62mm - Circlip, final dr brg
21	08331-4162A-000	CIRCLIP
22	09250-19001-000	CAP(OD:20.5)

OEM	Part name	Category
08331-41626-000	Ring 62mm - Circlip, final dr brg	rear drive shaft (1991-10-01~1995-05-01)
08331-4162A-000	CIRCLIP	rear drive shaft (1991-10-01~1995-05-01)
09119-12012-000	BOLT(12X38)	rear drive shaft (1991-10-01~1995-05-01)
09159-18008-000	NUT	rear drive shaft (1991-10-01~1995-05-01)
09160-18017-000	WASHER(18X35X4)	rear drive shaft (1991-10-01~1995-05-01)
09250-19001-000	CAP(OD:20.5)	rear drive shaft (1991-10-01~1995-05-01)
09267-35003-000	BEARING(35X61X31)	rear drive shaft (1991-10-01~1995-05-01)
43420-63810-000	HUB SET,RR WHL	rear drive shaft (1991-10-01~1995-05-01)
43421-63B41-000	ハブ,リヤホイール	rear drive shaft (1991-10-01~1995-05-01)
43431-60B20-000	SEAL,FR WHL BRG INNER OIL	rear drive shaft (1991-10-01~1995-05-01)
44101-80F10-000	Shaft assy,rear drive	rear drive shaft (1991-10-01~1995-05-01)
44102-80F10-000	SHAFT ASSY,REAR DRIVE,L	rear drive shaft (1991-10-01~1995-05-01)
44111-78010-000	RING,SNAP	rear drive shaft (1991-10-01~1995-05-01)
44112-78010-000	CIRCLIP	rear drive shaft (1991-10-01~1995-05-01)
44114-80F00-000	ジョイントアッシ,ディファレンシャルサイド	rear drive shaft (1991-10-01~1995-05-01)
44114-80F01-000	Joint assy,diff side	rear drive shaft (1991-10-01~1995-05-01)
44118-69D01-000	BOOT SET	rear drive shaft (1991-10-01~1995-05-01)
44118-69D02-000	BOOT SET	rear drive shaft (1991-10-01~1995-05-01)
44119-80F00-000	ブーツセット,ディファレンシャルサイド	rear drive shaft (1991-10-01~1995-05-01)
44119-80F01-000	BOOT SET,DIFF SIDE	rear drive shaft (1991-10-01~1995-05-01)
44119-80F02-000	BOOT SET,DIFF SIDE	rear drive shaft (1991-10-01~1995-05-01)
44121-86010-000	BAND,BOOT	rear drive shaft (1991-10-01~1995-05-01)
44122-86010-000	BAND,BOOT - Clamp, differential side outer boot	rear drive shaft (1991-10-01~1995-05-01)
44124-86011-000	BAND,BOOT	rear drive shaft (1991-10-01~1995-05-01)
46100-80810-000	KNUCKLE SET,RR SPNSN,R	rear drive shaft (1991-10-01~1995-05-01)
46100-80820-000	KNUCKLE SET,RR SPNSN,L	rear drive shaft (1991-10-01~1995-05-01)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 95
Collected: 2026-08-01
