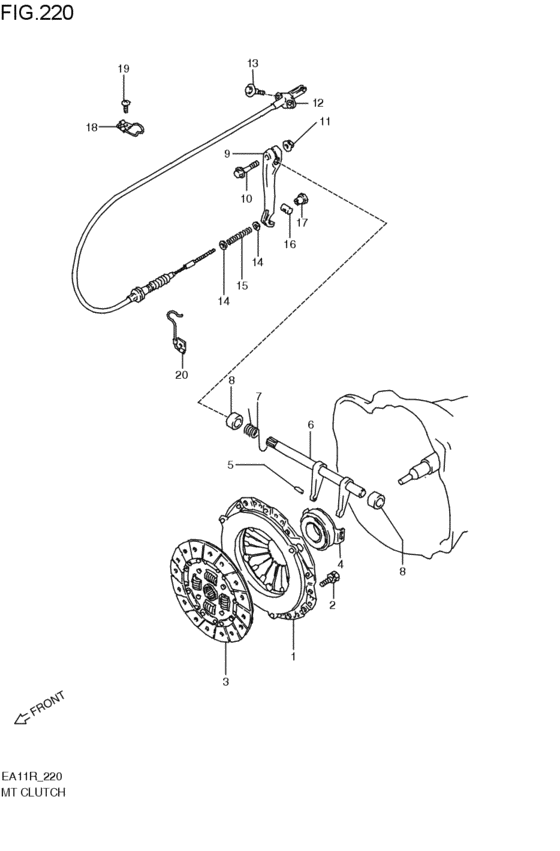

| 01550-08353-000 |
Bolt, rear |
mt - clutch (1991-10-01~1995-05-01) |
| 01550-0835A-000 |
Bolt |
mt - clutch (1991-10-01~1995-05-01) |
| 01550-0835B-000 |
Bolt |
mt - clutch (1991-10-01~1995-05-01) |
| 01570-08163-000 |
Bolt - Bolt, upper |
mt - clutch (1991-10-01~1995-05-01) |
| 01570-0816A-000 |
Bolt |
mt - clutch (1991-10-01~1995-05-01) |
| 03241-06123-000 |
Screw |
mt - clutch (1991-10-01~1995-05-01) |
| 03241-0612A-000 |
SCREW |
mt - clutch (1991-10-01~1995-05-01) |
| 08316-10083-000 |
Nut |
mt - clutch (1991-10-01~1995-05-01) |
| 08316-1008B-000 |
NUT |
mt - clutch (1991-10-01~1995-05-01) |
| 08322-01063-000 |
Washer |
mt - clutch (1991-10-01~1995-05-01) |
| 08322-0106B-000 |
WASHER |
mt - clutch (1991-10-01~1995-05-01) |
| 09119-06051-000 |
BOLT(6X21) |
mt - clutch (1991-10-01~1995-05-01) |
| 09150-06010-000 |
NUT |
mt - clutch (1991-10-01~1995-05-01) |
| 09150-06014-000 |
Nut |
mt - clutch (1991-10-01~1995-05-01) |
| 09205-03019-000 |
PIN,SPRING(3X10) - Pin, tilt lock |
mt - clutch (1991-10-01~1995-05-01) |
| 09209-13018-000 |
PIN(13X18) |
mt - clutch (1991-10-01~1995-05-01) |
| 09300-14017-000 |
BUSH(14X22X15) |
mt - clutch (1991-10-01~1995-05-01) |
| 09440-08027-000 |
SPRING |
mt - clutch (1991-10-01~1995-05-01) |
| 22100-78A81-000 |
COVER ASSY,CLUTCH |
mt - clutch (1991-10-01~1995-05-01) |
| 22100-80F01-000 |
カバーアッシ,クラッチ |
mt - clutch (1991-10-01~1995-05-01) |
| 22400-80F01-000 |
DISC,CLUTCH |
mt - clutch (1991-10-01~1995-05-01) |
| 23260-82C02-000 |
SHAFT,CLUTCH RELEASE |
mt - clutch (1991-10-01~1995-05-01) |
| 23265-77D00-000 |
BEARING,CLUTCH RELEASE |
mt - clutch (1991-10-01~1995-05-01) |
| 23266-80F00-000 |
ARM,CLUTCH RELEASE |
mt - clutch (1991-10-01~1995-05-01) |
| 23269-82C10-000 |
SPRING,CLUTCH RETURN |
mt - clutch (1991-10-01~1995-05-01) |
| 23710-80F00-000 |
CABLE ASSY,CLUTCH |
mt - clutch (1991-10-01~1995-05-01) |
| 23917-80F00-000 |
クランプ,クラッチケーブル,NO.1 |
mt - clutch (1991-10-01~1995-05-01) |
| 23917-80F0V-000 |
Clamp,clutch cable no.1 |
mt - clutch (1991-10-01~1995-05-01) |
| 23918-80F00-000 |
クランプ,クラッチケーブル,NO.2 |
mt - clutch (1991-10-01~1995-05-01) |
